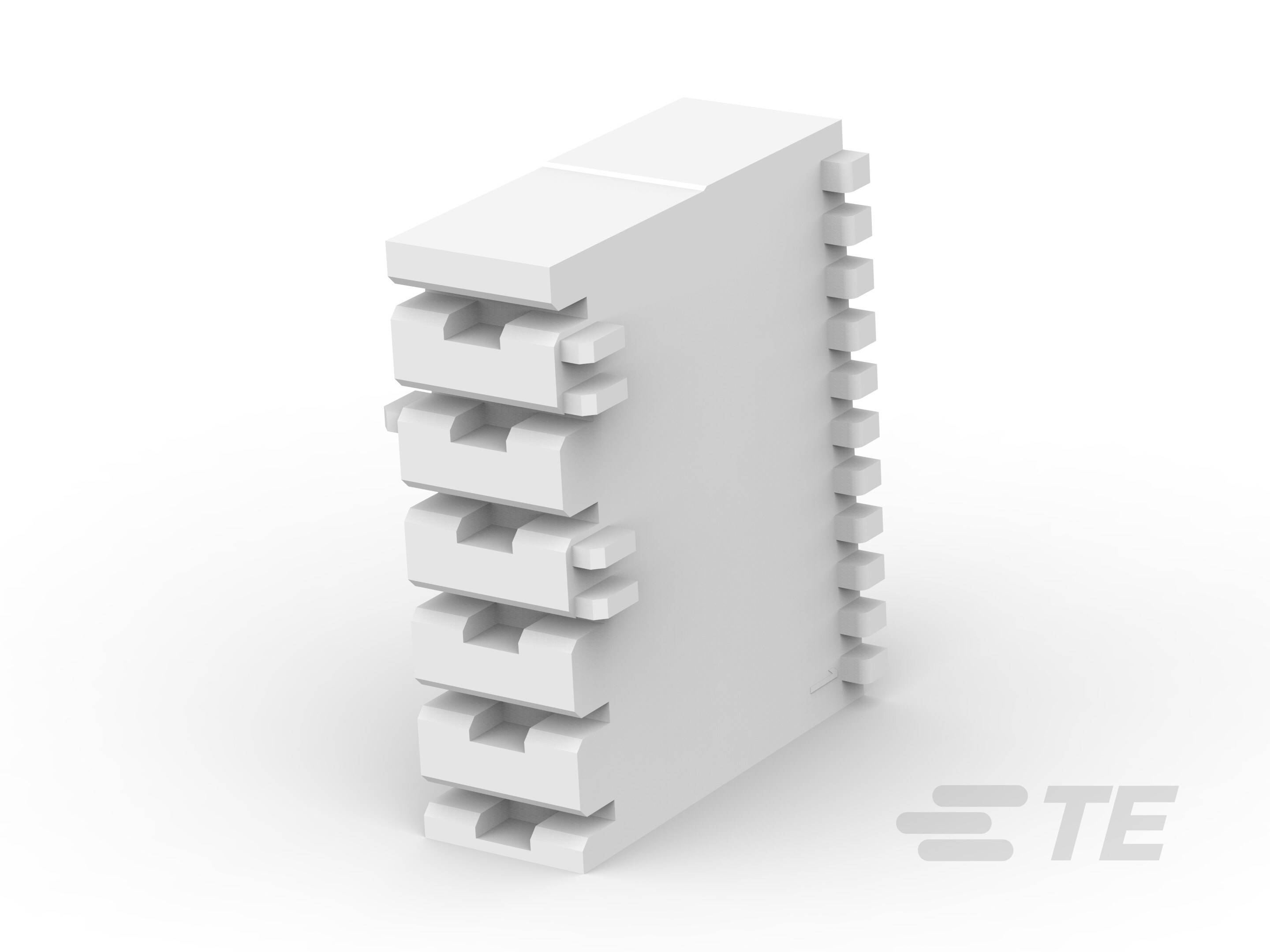

Specification	521208-5

Color	Natural
For Use With/Related Products	Quick Connects, 0.250" (6.35mm) Quick Connects
Gender	Female, Receptacle
Material	Nylon
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Related Product Length	0.25 in
Stacking Direction	Top to Bottom
Style	Housing
Terminal Size	0.25 in
Terminal Type	Disconnect, Quick Connect
