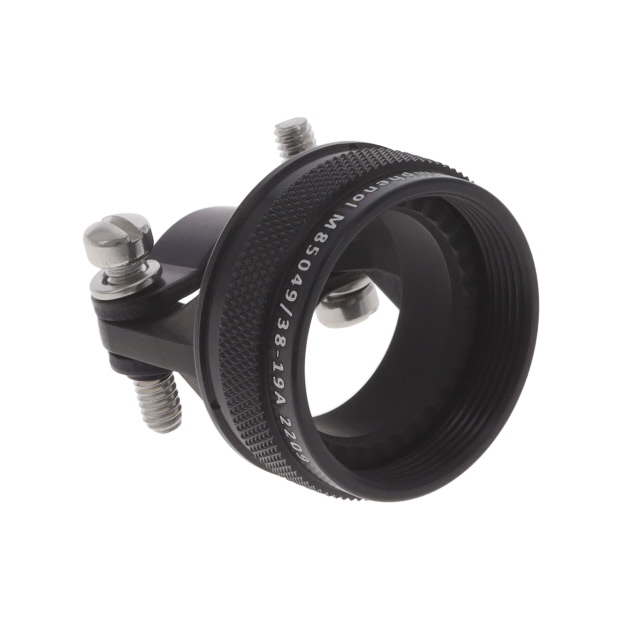

M85049/38-19A

Active

Amphenol Interconnect India

CONN CABLE CLAMP SZ19 F BLACK

Deep-Dive with AI

Search across all available documentation for this part.

M85049/38-19A

Active

Amphenol Interconnect India

CONN CABLE CLAMP SZ19 F BLACK

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.40
		1	$ 220.89
		25	$ 13.98
		100	$ 12.67
		1000	$ 9.91

Description

General part information

M85049/38 Series

Black Connector Cable Clamp 19, F

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M85049/38-19A	M85049/38 Series

Cable Exit	180 °	180 °
Cable Opening	-	0.82 - 20.83 in
Cable Opening	-	0.38 - 15.49 in
Cable Opening	-	10.67 - 21.59 mm
Cable Opening	-	0.42 - 0.85 in
Cable Opening	-	0.28 - 0.61 in
Cable Opening	-	2.54 - 4.83 mm
Cable Opening	-	0.23 in
Cable Opening	-	0.1 in
Cable Opening	-	5.84
Cable Opening	-	0.19 in
Cable Opening	-	8.38 mm
Cable Opening	-	0.33 in
Cable Opening [Max] [custom]	16 mm	5.84 - 21.67 mm
Cable Opening [Max] [custom]	0.63 in	0.23 - 0.853 in
Cable Opening [Min] [custom]	8.38 mm	3.81 - 10.62 mm
Cable Opening [Min] [custom]	0.33 in	0.15 - 0.418 in
Color	Black	Black, Olive, Silver
Diameter - Outside	-	41.66 mm
Diameter - Outside [diameter]	1.4 in	0.86 - 1.89 in
Diameter - Outside [diameter]	35.56 mm	1.64 - 48.01 mm
Features	Clamp Screws	Strain Relief, Clamp Screws, Self-Locking, Self Locking
For Use With/Related Products	MIL-DTL-38999 Series III, IV	MIL-DTL-38999 Series III, IV
Material	Aluminum Alloy	Aluminum Alloy
Plating	Anodized	Anodized, Cadmium Nickel, Electroless Nickel
Shell Size - Insert	19	9 - 25
Shell Size - Insert	F	G, F, J
Shielding	Unshielded	Unshielded
Type	Cable Clamp	Cable Clamp

M85049/38 Series

CONN CABLE CLAMP SZ21 G BLACK

Part	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	For Use With/Related Products	Features	Cable Exit	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Shielding	Color	Type	Material	Plating	Shell Size - Insert	Shell Size - Insert	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [custom]
Amphenol Interconnect India M85049/38-21A	0.698 in	17.73 mm	8.71 mm	0.343 in	MIL-DTL-38999 Series III, IV	Strain Relief	180 °	38.1 mm	1.5 in	Unshielded	Black	Cable Clamp	Aluminum Alloy	Anodized	21	G
Amphenol Interconnect India M85049/38-19A	0.63 in	16 mm	8.38 mm	0.33 in	MIL-DTL-38999 Series III, IV	Clamp Screws	180 °	35.56 mm	1.4 in	Unshielded	Black	Cable Clamp	Aluminum Alloy	Anodized	19	F
Amphenol Interconnect India M85049/38-23W					MIL-DTL-38999 Series III, IV	Clamp Screws	180 °	44.96 mm	1.77 "		Olive	Cable Clamp	Aluminum Alloy	Cadmium Nickel	23		0.82 in, 20.83 mm	0.38 in, 9.65 mm
Amphenol Interconnect India M85049/38-15A					MIL-DTL-38999 Series III, IV	Clamp Screws	180 °	32.51 mm	1.28 in		Black	Cable Clamp	Aluminum Alloy	Anodized	15
Amphenol Interconnect India M85049/38S11W	0.23 in	5.84 mm	3.81 mm	0.15 in	MIL-DTL-38999 Series III, IV	Clamp Screws, Self-Locking	180 °	24.9 mm	0.98 in		Olive	Cable Clamp	Aluminum Alloy	Cadmium Nickel	11
Amphenol Interconnect India M85049/38-11N	0.23 in	5.84 mm	3.81 mm	0.15 in	MIL-DTL-38999 Series III, IV	Clamp Screws	180 °	24.9 mm	0.98 in		Silver	Cable Clamp	Aluminum Alloy	Electroless Nickel	11
Amphenol Interconnect India M85049/38S19N	0.634 in	16.1 mm	8.25 mm	0.325 in	MIL-DTL-38999 Series III, IV	Self Locking, Strain Relief	180 °	38.5 mm	1.516 "	Unshielded	Silver	Cable Clamp	Aluminum Alloy	Electroless Nickel	19	F
Amphenol Interconnect India M85049/38S25W					MIL-DTL-38999 Series III, IV	Clamp Screws, Self-Locking	180 °	48.01 mm	1.89 "		Olive	Cable Clamp	Aluminum Alloy	Cadmium Nickel	25				10.67 mm, 21.59 mm	0.42 in, 0.85 in
Amphenol Interconnect India M85049/38S17N					MIL-DTL-38999 Series III, IV	Clamp Screws, Self-Locking	180 °	35.81 mm	1.41 in		Silver	Cable Clamp	Aluminum Alloy	Electroless Nickel	17			7.11 mm, 15.49 mm			0.28 in, 0.61 in
Amphenol Interconnect India M85049/38-25W					MIL-DTL-38999 Series III, IV	Clamp Screws	180 °	48.01 mm	1.89 "		Olive	Cable Clamp	Aluminum Alloy	Cadmium Nickel	25				10.67 mm, 21.59 mm	0.42 in, 0.85 in
