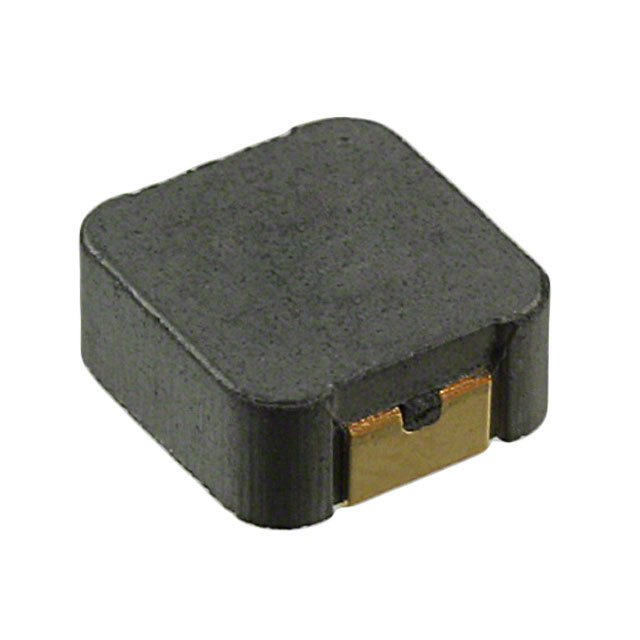

HM72B-06R15LFTR13

Unknown

TT Electronics/BI Magnetics

FIXED IND 150NH 23.3A 2.5 MOHM

Search across all available documentation for this part.

Unknown

TT Electronics/BI Magnetics

FIXED IND 150NH 23.3A 2.5 MOHM

Technical Specifications

Parameters and characteristics commom to parts in this series

FIXED IND 6.8UH 4.1A 68 MOHM SMD

Part	Inductance	Current - Saturation (Isat)	Package / Case	Tolerance	Current Rating (Amps)	Inductance Frequency - Test	Height - Seated (Max)	Height - Seated (Max) [Max]	Shielding	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR) [Max]	Mounting Type
TT Electronics/BI Magnetics HM72B-066R8LFTR13	6.8 µH	8 A	Nonstandard	20 %	4.1 A	100 kHz	3 mm	0.118 in	Unshielded	Molded	0.285 in	6.8 mm	0.268 in	7.23 mm	-40 °C	130 °C	68 mOhm	Surface Mount
TT Electronics/BI Magnetics HM72B-06R22LFTR13	220 nH	40 A	Nonstandard	20 %	20.3 A	100 kHz	3 mm	0.118 in	Unshielded	Molded	0.285 in	6.8 mm	0.268 in	7.23 mm	-40 °C	130 °C	2.8 mOhm	Surface Mount
TT Electronics/BI Magnetics HM72B-06R15LFTR13	150 nH	52 A	Nonstandard	20 %	23.3 A	100 kHz	3 mm	0.118 in	Unshielded	Molded	0.285 in	6.8 mm	0.268 in	7.23 mm	-40 °C	130 °C	2.5 mOhm	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

150 nH Unshielded Molded Inductor 23.3 A 2.5mOhm Max Nonstandard

Technical documentation and resources

No documents available
