MMC5983MA-B

Active

Memsic Inc.

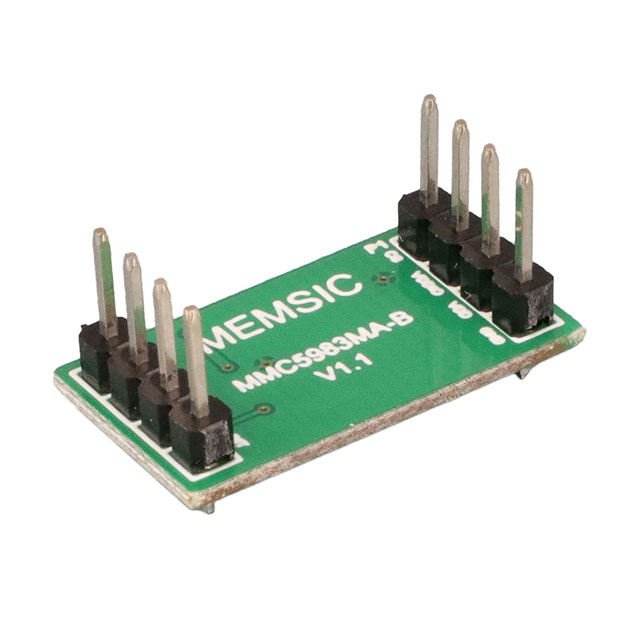

DEV BOARD FOR MMC5983MA

Search across all available documentation for this part.

Active

Memsic Inc.

DEV BOARD FOR MMC5983MA

Technical Specifications

Parameters and characteristics commom to parts in this series

3-AXIS MAGNETIC SENSOR

Part	Technology	Grade	Sensing Range [Max]	Sensing Range [Min]	Mounting Type	Bandwidth	Supplier Device Package	Current - Supply (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Qualification	Output Type	Axis [z]	Axis [y]	Axis [x]	Resolution	Supplied Contents	Utilized IC / Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensor Type	Interface
Memsic Inc. MMC5983MA	Magnetoresistive	Automotive	800 mT	-800 mT	Surface Mount	1 kHz	16-LGA (3x3)	450 µA	-40 °C	105 ░C	16-VFLGA	AEC-Q100	I2C, SPI	Z	Y	X	18 b
Memsic Inc. MMC5983MA-B			8 Gauss	-8 Gauss														Board(s)	MMC5983	2.8 V	3.6 V	Magnetic, Magnetometer	I2C, Serial, SPI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.10

General part information

MMC5983 - Magnetic, Magnetometer Sensor Evaluation Board
