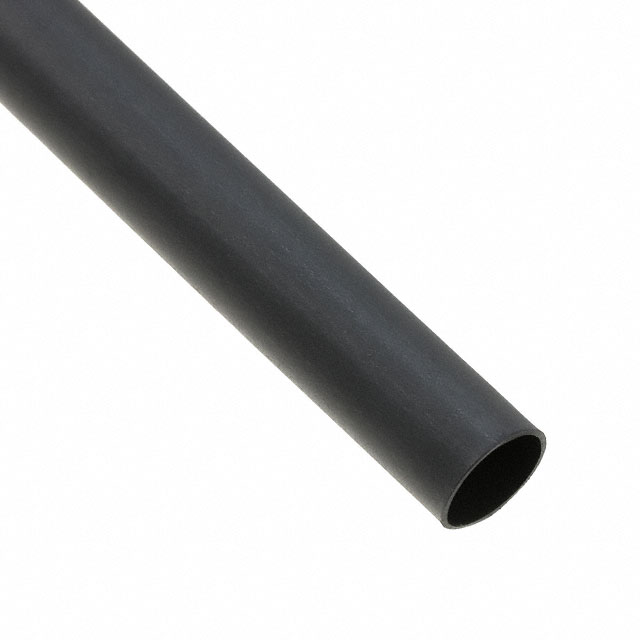

SCT-NO.2-E5-0-65MM

Active

TE Connectivity Raychem Cable Protection

HEATSHRINK TUBING .355" 4:1 BLK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SCT-NO.2-E5-0-65MM

Active

TE Connectivity Raychem Cable Protection

HEATSHRINK TUBING .355" 4:1 BLK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SCT-NO.2-E5-0-65MM

Color	Black
Features	Adhesive Lined, Abrasion Resistant, Flame Retardant, Fluid Resistant
Inner Diameter - Recovered [diameter]	2.29 mm
Inner Diameter - Recovered [diameter]	0.09 "
Inner Diameter - Supplied [diameter]	9.02 mm
Inner Diameter - Supplied [diameter]	0.355 in
Length [x]	65 mm
Length [x]	2.56 "
Length [x]	0.213 ft
Material	Polyolefin (PO), Irradiated
Recovered Wall Thickness	0.06 in
Recovered Wall Thickness	1.52 mm
Shelf Life	36 Months
Shrink Temperature	110 °C
Shrinkage Ratio	4 to 1
Type	Tubing, Semi Rigid

RAYCHEM SCT Series

Part	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Length	Length	Length	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shrinkage Ratio	Shrink Temperature	Material	Type	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Color	Features	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]	Shelf Life	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Recovered	Inner Diameter - Recovered	Length [x]	Length [x]	Length [x]
TE Connectivity Raychem Cable Protection SCT-NO.3-E3-0-101MM	18 °C 65 °F	35 °C	0.331 '	101 mm	3.98 in	2.54 mm	0.1 in	4 to 1	110 °C	Polyolefin (PO) Irradiated	Tubing Semi Rigid	0.455 "	11.56 mm	Black	Abrasion Resistant Adhesive Lined Flame Retardant Fluid Resistant	2.29 mm	0.09 in	36 Months
TE Connectivity Raychem Cable Protection SCT-NO.2-C2-0-50MM	18 °C 65 °F	35 °C	0.164 '	50 mm	1.97 "	2.29 mm	0.09 "	4 to 1	110 °C	Polyolefin (PO) Irradiated	Tubing Semi Rigid	0.355 in	9.02 mm	Black	Abrasion Resistant Adhesive Lined Flame Retardant Fluid Resistant			36 Months	0.06 in	1.52 mm
TE Connectivity Raychem Cable Protection SCT-NO.4-E2-0-27MM	18 °C 65 °F	35 °C	0.088 ft	27 mm	1.06 "			4 to 1	110 °C	Polyolefin (PO) Irradiated	Tubing Semi Rigid	0.7 "	17.78 mm	Black	Abrasion Resistant Adhesive Lined Flame Retardant Fluid Resistant			36 Months	0.1 in	2.54 mm	4.45 mm	0.175 in
TE Connectivity Raychem Cable Protection SCT-NO.3-E3-0-75MM	18 °C 65 °F	35 °C	0.246 ft	75 mm	2.95 in	2.54 mm	0.1 in	4 to 1	110 °C	Polyolefin (PO) Irradiated	Tubing Semi Rigid	0.455 "	11.56 mm	Black	Abrasion Resistant Adhesive Lined Flame Retardant Fluid Resistant	2.29 mm	0.09 in	36 Months
TE Connectivity Raychem Cable Protection SCT-NO.2-E5-0-65MM						2.29 mm	0.09 "	4 to 1	110 °C	Polyolefin (PO) Irradiated	Tubing Semi Rigid	0.355 in	9.02 mm	Black	Abrasion Resistant Adhesive Lined Flame Retardant Fluid Resistant			36 Months	0.06 in	1.52 mm			65 mm	2.56 "	0.213 ft
TE Connectivity Raychem Cable Protection SCT-NO.3-E3-0-STK	18 °C 65 °F	35 °C				2.54 mm	0.1 in	4 to 1	110 °C	Polyolefin (PO) Irradiated	Tubing Semi Rigid	0.455 "	11.56 mm	Black	Abrasion Resistant Adhesive Lined Flame Retardant Fluid Resistant	2.29 mm	0.09 in	36 Months					1.22 m		4 ft
TE Connectivity Raychem Cable Protection SCT-NO.1-E6-0-75MM	18 °C 65 °F	35 °C	0.246 ft	75 mm	2.95 in			4 to 1	110 °C	Polyolefin (PO) Irradiated	Tubing Semi Rigid	0.3 in	7.62 mm	Black	Abrasion Resistant Adhesive Lined Flame Retardant Fluid Resistant			36 Months	0.06 in	1.52 mm	1.65 mm	0.065 in
TE Connectivity Raychem Cable Protection SCT-NO.4-E2-0-75MM			0.246 ft	75 mm	2.95 in			4 to 1	110 °C	Polyolefin (PO) Irradiated	Tubing Semi Rigid	0.7 "	17.78 mm	Black	Abrasion Resistant Adhesive Lined Flame Retardant Fluid Resistant			36 Months	0.1 in	2.54 mm	4.45 mm	0.175 in
TE Connectivity Raychem Cable Protection SCT-NO.3-E3-0-27MM			0.088 ft	27 mm	1.06 "	2.54 mm	0.1 in	4 to 1	110 °C	Polyolefin (PO) Irradiated	Tubing Semi Rigid	0.455 "	11.56 mm	Black	Abrasion Resistant Adhesive Lined Flame Retardant Fluid Resistant	2.29 mm	0.09 in	36 Months
TE Connectivity Raychem Cable Protection SCT-NO.3-E3-0-25MM	18 °C 65 °F	35 °C	0.082 ft	25 mm	0.98 in	2.54 mm	0.1 in	4 to 1	110 °C	Polyolefin (PO) Irradiated	Tubing Semi Rigid	0.455 "	11.56 mm	Black	Abrasion Resistant Adhesive Lined Flame Retardant Fluid Resistant	2.29 mm	0.09 in	36 Months

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	4000	$ 0.28

Description

General part information

RAYCHEM SCT Series

Heat Shrink Tubing, Semi Rigid 0.355" (9.02mm) 4 to 1 Black 0.213' (65.00mm, 2.56")

Documents

Technical documentation and resources
