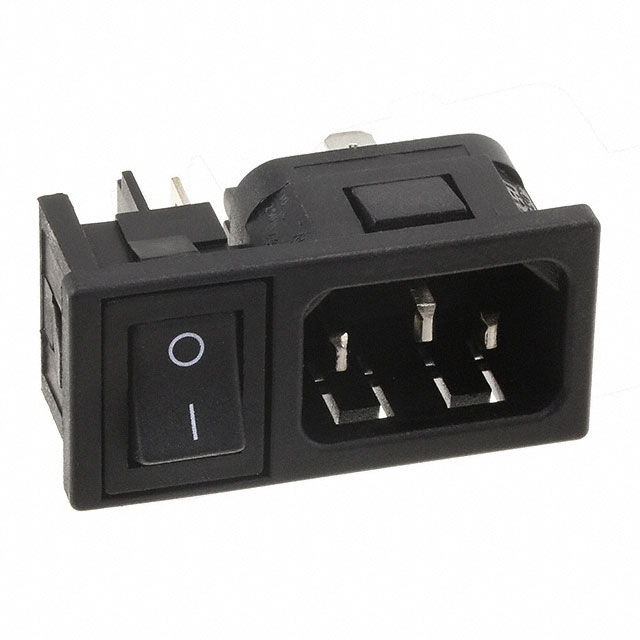

BZM42/Z0000/53C

Active

BULGIN LIMITED

UN-FILTERED IEC POWER ENTRY MODULE, IEC C14, GENERAL PURPOSE, 10 A, 250 VAC, 1-POLE SWITCH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

BZM42/Z0000/53C

Active

BULGIN LIMITED

UN-FILTERED IEC POWER ENTRY MODULE, IEC C14, GENERAL PURPOSE, 10 A, 250 VAC, 1-POLE SWITCH

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BZM42/Z0000/53C	BZM42/Z Series

Accomodates a Fuse	False	False
Approval Agency	VDE, CSA, UL, ENEC	VDE, CSA, UL, ENEC
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A	10 A
Filter Type	Unfiltered - Commercial	Unfiltered - Commercial
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	45.9 mm	45.9 mm
Panel Cutout Dimensions [y]	21.3 mm	21.3 mm
Panel Thickness	2 mm	2 mm
Panel Thickness	0.079 in	0.079 in
Panel Thickness	-	0.059 in
Panel Thickness	-	1.5 mm
Switch Features	Switch On-Off	Illuminated, Switch On-Off
Termination	0.189 ", 4.8 mm	0.189 - 4.8 "
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC	250 VAC

BZM42/Z Series

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Switch Features	Mounting Type	Approval Agency	Filter Type	Connector Style	Voltage Rating - Appliance Inlet	Current Rating - Appliance Inlet	Panel Thickness	Panel Thickness	Connector Type	Termination	Termination	Material Flammability Rating	Panel Thickness [custom]	Panel Thickness [custom]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]
BULGIN LIMITED BZM42/Z0000/59C	Illuminated, Switch On-Off	Panel Mount, Snap-In	CSA, ENEC, UL, VDE	Unfiltered - Commercial	IEC 320-C14	250 VAC	10 A	2 mm	0.079 in	Receptacle, Male Blades - Module	0.189 ", 4.8 mm	Quick Connect	UL94 V-0
BULGIN LIMITED BZM42/Z0000/53B	Switch On-Off	Panel Mount, Snap-In	CSA, ENEC, UL, VDE	Unfiltered - Commercial	IEC 320-C14	250 VAC	10 A			Receptacle, Male Blades - Module	0.189 ", 4.8 mm	Quick Connect	UL94 V-0	0.059 in	1.5 mm	21.3 mm	45.9 mm
BULGIN LIMITED BZM42/Z0000/57C	Switch On-Off	Panel Mount, Snap-In	CSA, ENEC, UL, VDE	Unfiltered - Commercial	IEC 320-C14	250 VAC	10 A	2 mm	0.079 in	Receptacle, Male Blades - Module	0.189 ", 4.8 mm	Quick Connect	UL94 V-0
BULGIN LIMITED BZM42/Z0000/55B	Illuminated, Switch On-Off	Panel Mount, Snap-In	CSA, ENEC, UL, VDE	Unfiltered - Commercial	IEC 320-C14	250 VAC	10 A			Receptacle, Male Blades - Module	0.189 ", 4.8 mm	Quick Connect	UL94 V-0	0.059 in	1.5 mm	21.3 mm	45.9 mm
BULGIN LIMITED BZM42/Z0000/53C	Switch On-Off	Panel Mount, Snap-In	CSA, ENEC, UL, VDE	Unfiltered - Commercial	IEC 320-C14	250 VAC	10 A	2 mm	0.079 in	Receptacle, Male Blades - Module	0.189 ", 4.8 mm	Quick Connect	UL94 V-0			21.3 mm	45.9 mm
BULGIN LIMITED BZM42/Z0000/59B	Illuminated, Switch On-Off	Panel Mount, Snap-In	CSA, ENEC, UL, VDE	Unfiltered - Commercial	IEC 320-C14	250 VAC	10 A			Receptacle, Male Blades - Module	0.189 ", 4.8 mm	Quick Connect	UL94 V-0	0.059 in	1.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.00
		10	$ 7.20
		25	$ 6.78
		50	$ 6.61
		100	$ 6.44
		250	$ 6.13

Description

General part information

BZM42/Z Series

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
