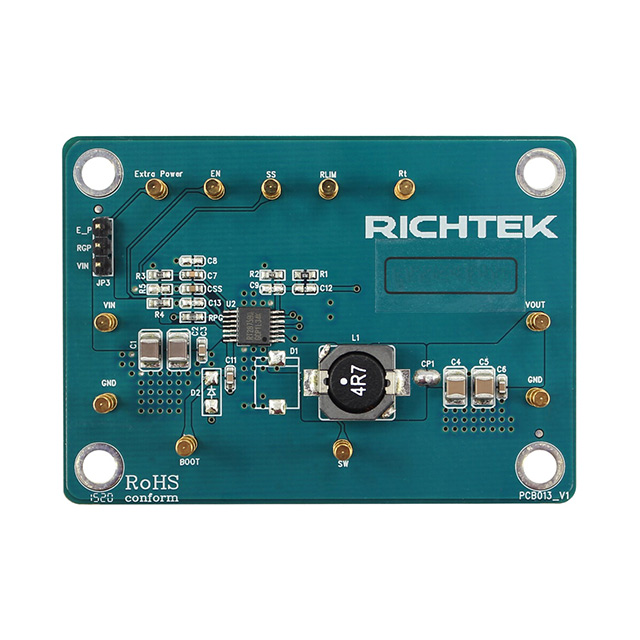

EVB_RT2875BQGCP

Active

Richtek USA Inc.

EVAL MODULE FOR RT2875BQGCP

Search across all available documentation for this part.

Active

Richtek USA Inc.

EVAL MODULE FOR RT2875BQGCP

Technical Specifications

Parameters and characteristics commom to parts in this series

EVAL MODULE FOR RT2875BQGCP

Part	Supplied Contents	Regulator Topology	Frequency - Switching	Voltage - Input [Min]	Voltage - Input [Max]	Main Purpose	Voltage - Output	Board Type	Outputs and Type	Outputs and Type	Utilized IC / Part	Current - Output	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Number of Outputs	Topology	Qualification	Frequency - Switching [Max]	Frequency - Switching [Min]	Voltage - Output (Min/Fixed)	Output Type	Mounting Type	Grade	Package / Case	Function	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Voltage - Output (Max)	Supplier Device Package
Richtek USA Inc. EVB_RT2875BQGCP	Board(s)	Buck	500 kHz	4.5 V	36 V	DC/DC, Step Down	3.3 V	Fully Populated	Non-Isolated	1	RT2875B	3 A
Richtek USA Inc. RT2875BQGCP												3 A	36 V	4.5 V	1	Buck	AEC-Q100	2.1 MHz	300 kHz	0.6 V	Adjustable	Surface Mount	Automotive	14-TSSOP (0.173", 4.40mm Width) Exposed Pad	Step-Down	105 °C	-40 °C	Positive	24 V	14-TSSOP-EP
Richtek USA Inc. RT2875AQGCP												3 A	36 V	4.5 V	1	Buck	AEC-Q100	2.1 MHz	300 kHz	0.6 V	Adjustable	Surface Mount	Automotive	14-TSSOP (0.173", 4.40mm Width) Exposed Pad	Step-Down	105 °C	-40 °C	Positive	24 V	14-TSSOP-EP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 44.90

General part information

RT2875B - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board

Technical documentation and resources
