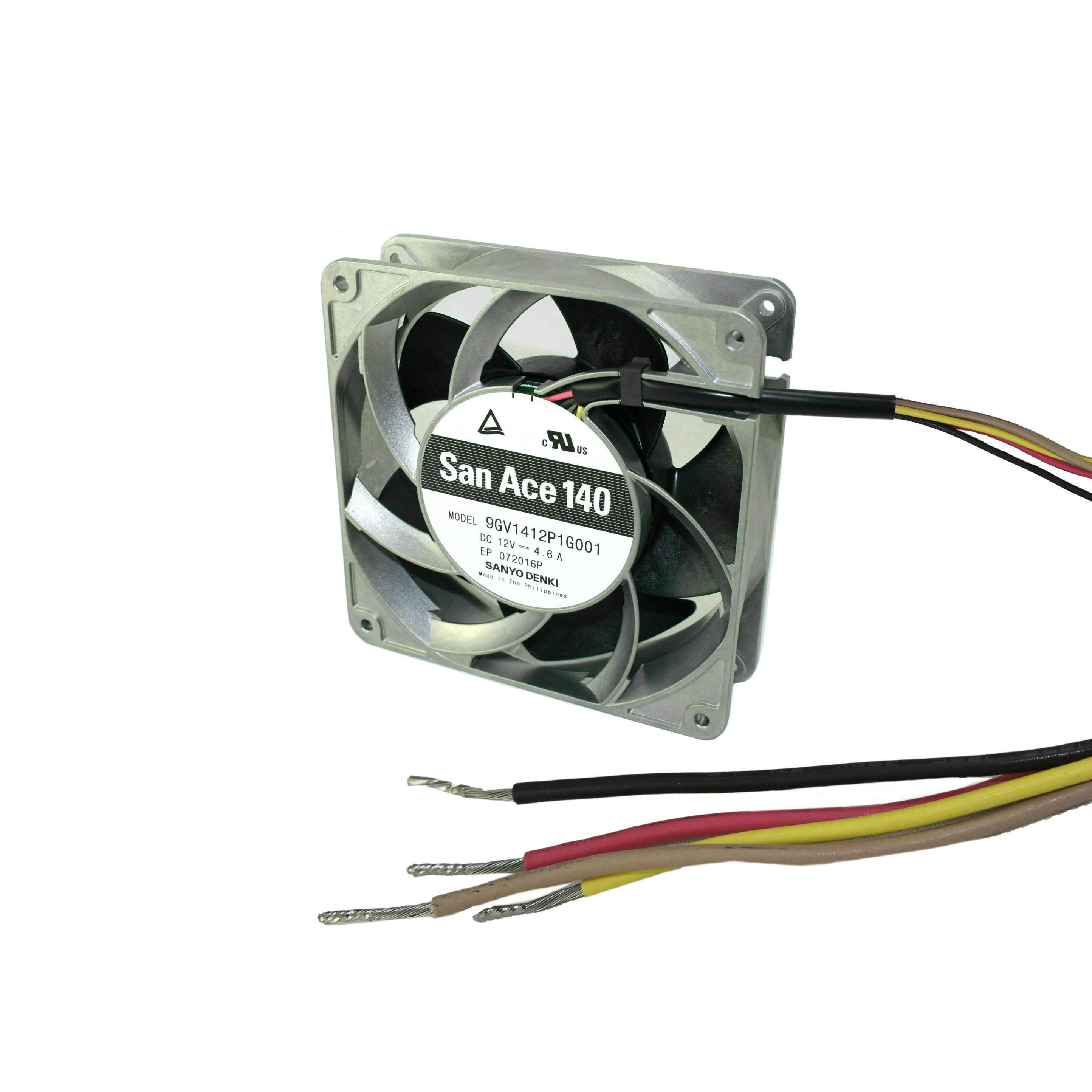

9GV1412P1G001

Active

Sanyo Denki America Inc.

FAN AXIAL 140X38MM 12VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 140X38MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	9GV1412P1G001

Air Flow	8.68 m³/min
Air Flow	310 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	4.6 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	70 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	55.2 W
RPM	7600 RPM
Size / Dimension [x]	140 mm
Size / Dimension [z]	140 mm
Static Pressure	640.1 Pa
Static Pressure	2.57 in H2O
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	10.8 VDC
Weight	635 g
Weight [custom]	1.4 lbs
Width [y]	38 mm

Part	Voltage Range [Max]	Voltage Range [Min]	Bearing Type	Fan Type	Size / Dimension [x]	Size / Dimension [z]	Weight [custom]	Weight	Features	Noise	Current Rating (Amps)	Termination	RPM	Approval Agency	Power (Watts)	Material - Blade	Static Pressure	Static Pressure	Material - Frame	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Width [y]	Air Flow	Air Flow	Lifetime @ Temp.
Sanyo Denki America Inc. 9GV1412P1G001	13.2 VDC	10.8 VDC	Ball	Tubeaxial	140 mm	140 mm	1.4 lbs	635 g	PWM Control Speed Sensor (Tach)	70 dB(A)	4.6 A	4 Wire Leads	7600 RPM	CSA TUV UL	55.2 W	Plastic	640.1 Pa	2.57 in H2O	Aluminum	12 VDC	-20 °C	70 °C	-20 C	70 °C	38 mm	8.68 m³/min	310 CFM	40000 Hrs
Sanyo Denki America Inc. 9GV1412P1S001	13.2 VDC	10.8 VDC	Ball	Tubeaxial	140 mm	140 mm	1.4 lbs	635 g	PWM Control Speed Sensor (Tach)	67 dB	3.1 A	4 Wire Leads	6650 RPM	CSA TUV UL	37.2 W	Plastic	480.8 Pa	1.93 in H2O	Aluminum	12 VDC	-20 °C	70 °C	-20 C	70 °C	38 mm	7.62 m³/min	272 CFM	40000 Hrs
Sanyo Denki America Inc. 9GV1412P1H001	13.2 VDC	10.8 VDC	Ball	Tubeaxial	140 mm	140 mm	1.4 lbs	635 g	PWM Control Speed Sensor (Tach)	62 dB(A)	1.7 A	4 Wire Leads	5200 RPM	CSA TUV UL	20.4 W	Plastic	298.9 Pa	1.2 in H2O	Aluminum	12 VDC	-20 °C	70 °C	-20 C	70 °C	38 mm	5.94 m³/min	212 CFM	40000 Hrs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 140mm L x 140mm H Ball 310.0 CFM (8.68mł/min) 4 Wire Leads
