243A10050X

Obsolete

Amphenol CONEC

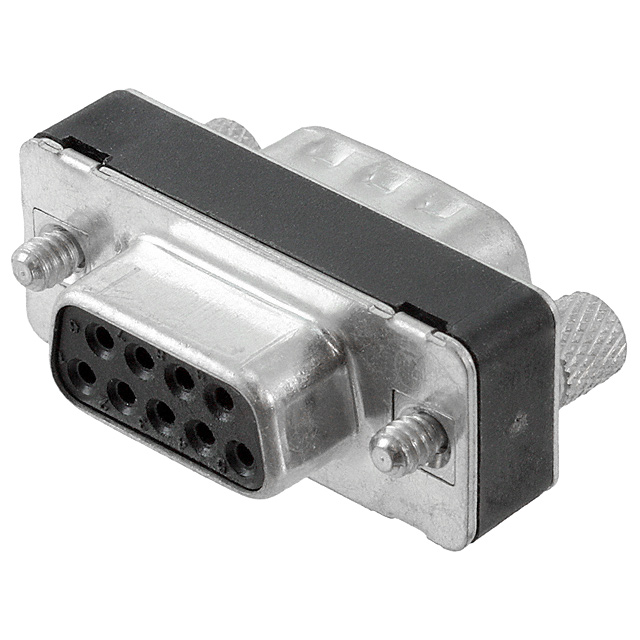

CONN DSUB ADAPTER DB9F DB9M

Search across all available documentation for this part.

Obsolete

Amphenol CONEC

CONN DSUB ADAPTER DB9F DB9M

Technical Specifications

Parameters and characteristics for this part

Specification	243A10050X

Connector Style	Connector Saver
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Convert From (Adapter End)	D-Sub, 9 Pin Male
Current Rating (Amps)	7.5 A
Features	Filter
Housing Color	Black
Includes	1 Connector, 2 Jack Screws
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Voltage Rating	100 V

Part	Housing Color	Features	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Mounting Type	Convert From (Adapter End)	Number of Rows	Contact Finish	Voltage Rating	Connector Style	Includes	Contact Finish Thickness	Contact Finish Thickness
Amphenol CONEC 243A10050X	Black	Filter	7.5 A	-25 °C	105 ░C	UL94 V-0	Free Hanging (In-Line)	D-Sub 9 Pin Male	2	Gold	100 V	Connector Saver	1 Connector 2 Jack Screws	8 çin	0.203 çm
Amphenol CONEC 243A10090X	Black	Filter	7.5 A	-25 °C	105 ░C	UL94 V-0	Free Hanging (In-Line)	D-Sub 9 Pin Male	2	Gold	100 V	Connector Saver	1 Connector 2 Jack Screws	8 çin	0.203 çm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Connector D-Sub, 9 Pin Female To D-Sub, 9 Pin Male Free Hanging (In-Line)
