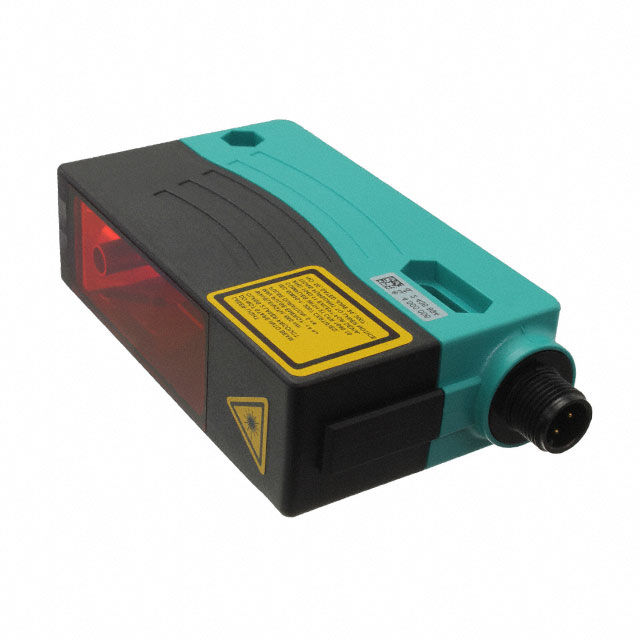

Specification	VDM28-8-L-IO/73C/110/122

Connection Method	Connector, M12
Ingress Protection	IP65
Light Source	Red Laser Diode
Light Source Wavelength (Red Laser Diode)	660 nm
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-30 °C
Output Configuration	Analog
Response Time	10 ms
Sensing Distance Maximum	314.961 "
Sensing Distance Minimum	7.874 "
Sensing Method	Distance-Settable (BGS)
Voltage - Supply (Maximum)	30 VDC
Voltage - Supply (Minimum)	10 VDC

VDM28 Series

Part	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Output Configuration	Operating Temperature (Min)	Operating Temperature (Max)	Connection Method	Ingress Protection	Response Time	Sensing Distance Minimum	Sensing Distance Maximum	Sensing Method	Light Source Wavelength (Red Laser Diode)	Light Source
Pepperl+Fuchs, Inc. VDM28-15-L-IO/73C/110/122	10 VDC	30 VDC	Analog	-30 °C	50 °C	Connector M12	IP65	10 ms	7.874 "	590.551 "	Distance-Settable (BGS)	660 nm	Red Laser Diode

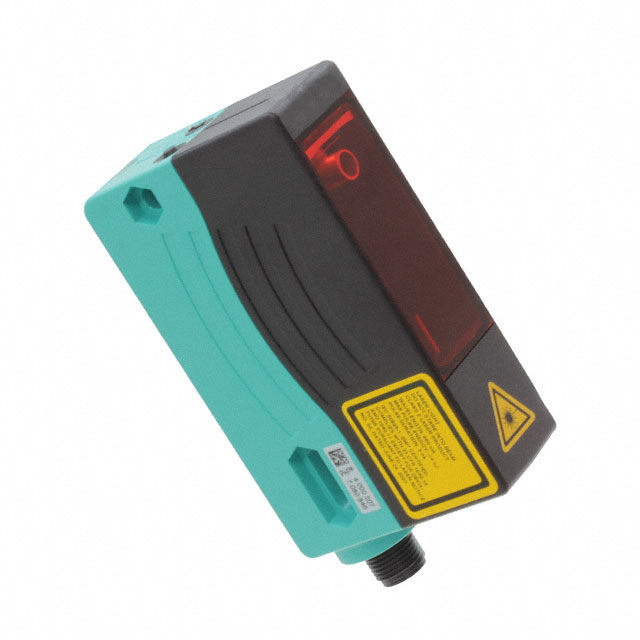

Pepperl+Fuchs, Inc. VDM28-50-R-IO/73C/110/122	10 VDC	30 VDC	Analog	-30 °C	50 °C	Connector M12	IP65	10 ms	7.874 "	1968.504 "	Distance-Settable (BGS)	660 nm	Red Laser Diode

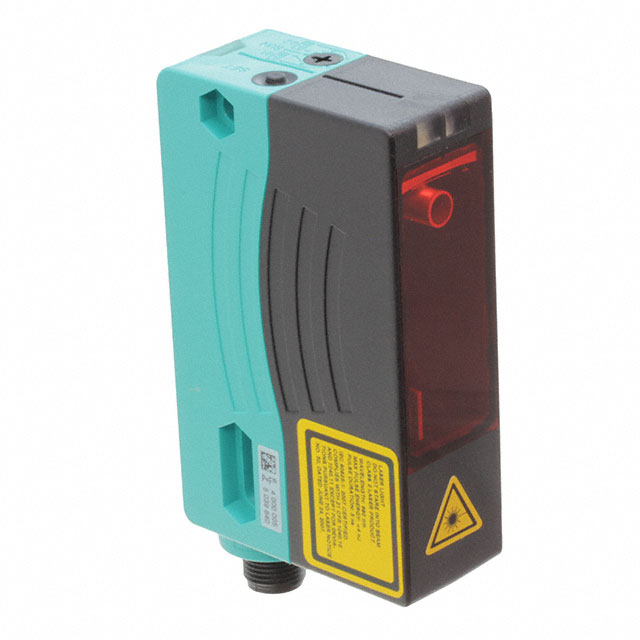

Pepperl+Fuchs, Inc. VDM28-8-L-IO/73C/136	10 VDC	30 VDC		-30 °C	50 °C	Connector M12	IP65	10 ms	7.874 "	314.961 "	Distance-Settable (BGS)	660 nm	Red Laser Diode
Pepperl+Fuchs, Inc. VDM28-8-L-IO/73C/110/122	10 VDC	30 VDC	Analog	-30 °C	50 °C	Connector M12	IP65	10 ms	7.874 "	314.961 "	Distance-Settable (BGS)	660 nm	Red Laser Diode
