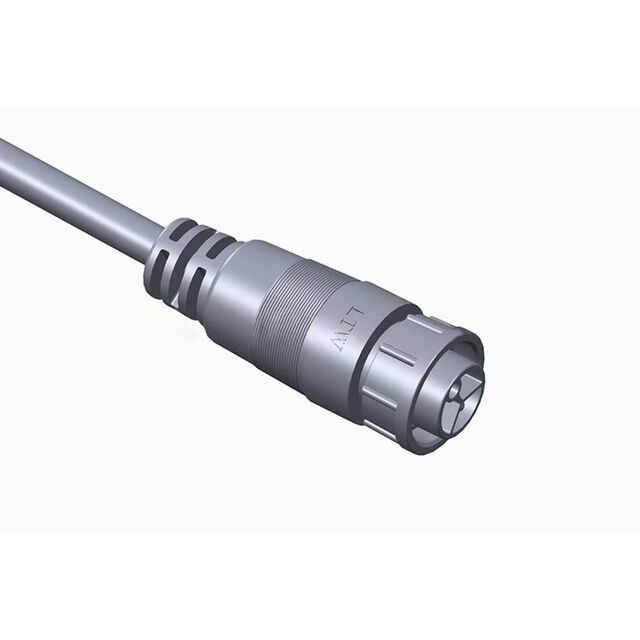

PWC-03AFMM-LL7B05

Active

Amphenol LTW

POWER, PWC, PLASTIC, 20A, 03 PINS, FEMALE CONNECTOR, MALE CONTACT, STRAIGHT, 2 POINTS LOCK, OVERMOLDED, LENGTH 5000MM, IP67 ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PWC-03AFMM-LL7B05

Active

Amphenol LTW

POWER, PWC, PLASTIC, 20A, 03 PINS, FEMALE CONNECTOR, MALE CONTACT, STRAIGHT, 2 POINTS LOCK, OVERMOLDED, LENGTH 5000MM, IP67 ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PWC-03AFMM-LL7B05

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	3
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Type	Plug
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Shielding	Unshielded
Usage	Industrial Environments

PWC-03AFMM Series

Part	Cable Material	1st Connector Type	1st Connector Number of Positions	1st Connector Mounting Type	Shielding	2nd Connector Type	Assembly Configuration	1st Connector Orientation [custom]	1st Connector Number of Positions Loaded	Cable Type	Usage	1st Connector Gender	Ingress Protection	Color	Length [x]	Length [x]
Amphenol LTW PWC-03AFMM-LL7D05	Polyvinyl Chloride (PVC)	Plug	3	Free Hanging (In-Line)	Unshielded	Wire Leads	Standard	Keyed	All	Round	Industrial Environments	Male Pins	IP67 - Dust Tight Waterproof	Black
Amphenol LTW PWC-03AFMM-LL7D02	Polyvinyl Chloride (PVC)	Plug	3	Free Hanging (In-Line)	Unshielded	Wire Leads	Standard	Keyed	All	Round	Industrial Environments	Male Pins	IP67 - Dust Tight Waterproof	Black	2 m	6.56 ft
Amphenol LTW PWC-03AFMM-LL7B02	Polyvinyl Chloride (PVC)	Plug	3	Free Hanging (In-Line)	Unshielded	Wire Leads	Standard	Keyed	All	Round	Industrial Environments	Male Pins	IP67 - Dust Tight Waterproof	Black	2 m	6.56 ft
Amphenol LTW PWC-03AFMM-LL7E02	Polyvinyl Chloride (PVC)	Plug	3	Free Hanging (In-Line)	Unshielded	Wire Leads	Standard	Keyed	All	Round	Industrial Environments	Male Pins	IP67 - Dust Tight Waterproof	Black	2 m	6.56 ft
Amphenol LTW PWC-03AFMM-TL7A01	Polyvinyl Chloride (PVC)	Plug	3	Free Hanging (In-Line)	Unshielded	Wire Leads	Standard	Keyed	All	Round	Industrial Environments	Male Pins	IP67 - Dust Tight Waterproof	Black	1 m	3.28 ft
Amphenol LTW PWC-03AFMM-TL7B01	Polyvinyl Chloride (PVC)	Plug	3	Free Hanging (In-Line)	Unshielded	Wire Leads	Standard	Keyed	All	Round	Industrial Environments	Male Pins	IP67 - Dust Tight Waterproof	Black	1 m	3.28 ft
Amphenol LTW PWC-03AFMM-LL7E10	Polyvinyl Chloride (PVC)	Plug	3	Free Hanging (In-Line)	Unshielded	Wire Leads	Standard	Keyed	All	Round	Industrial Environments	Male Pins	IP67 - Dust Tight Waterproof	Black
Amphenol LTW PWC-03AFMM-LL7B10	Polyvinyl Chloride (PVC)	Plug	3	Free Hanging (In-Line)	Unshielded	Wire Leads	Standard	Keyed	All	Round	Industrial Environments	Male Pins	IP67 - Dust Tight Waterproof	Black
Amphenol LTW PWC-03AFMM-LL7B01	Polyvinyl Chloride (PVC)	Plug	3	Free Hanging (In-Line)	Unshielded	Wire Leads	Standard	Keyed	All	Round	Industrial Environments	Male Pins	IP67 - Dust Tight Waterproof	Black	1 m	3.28 ft
Amphenol LTW PWC-03AFMM-LL7B05	Polyvinyl Chloride (PVC)	Plug	3	Free Hanging (In-Line)	Unshielded	Wire Leads	Standard	Keyed	All	Round	Industrial Environments	Male Pins	IP67 - Dust Tight Waterproof	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 40.74
Newark	Each	10	$ 37.40
		25	$ 36.36
		50	$ 34.80
		100	$ 34.28
		250	$ 33.76

Description

General part information

PWC-03AFMM Series

Circular Cable Assembly Unshielded 16.40' (5.00m)
