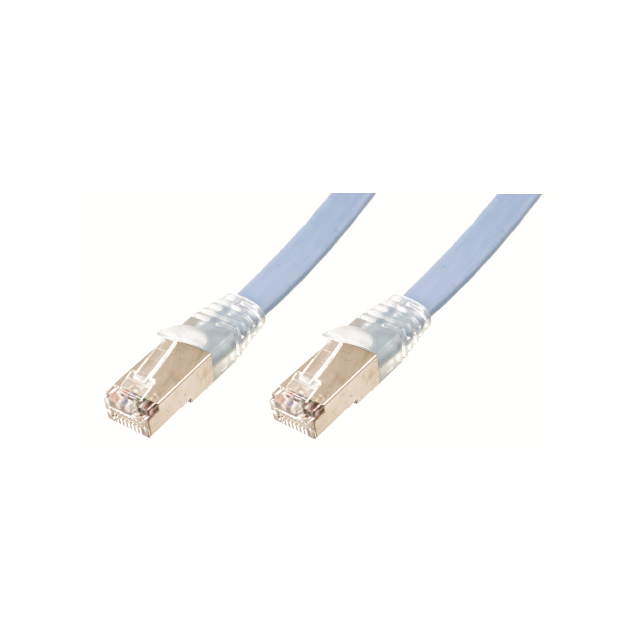

PN-F6A-STP-08-SN-28B

Active

Pactech

CABLE MOD 8P8C PLUG TO PLUG 8'

Search across all available documentation for this part.

Active

Pactech

CABLE MOD 8P8C PLUG TO PLUG 8'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PN-F6A-STP-08-SN-28B	PN-F6A Series

Cable Type	Flat, Straight Cable	Flat, Straight Cable
Color	Aqua	Aqua
Connector Type	Plug to Plug	Plug to Plug
Features	Sturdy, Horizontal Frame Test Passed, EIA-364-21 & EIA-364-20, FM-PE+Skin, 28AWG STP	Sturdy, Horizontal Frame Test Passed, EIA-364-21 & EIA-364-20, FM-PE+Skin, 28AWG STP
Length	-	1.52 - 6.1 m
Length	-	5 - 84 in
Length [x]	2.44 m	1.22 - 2.44 m
Length [x]	8 ft	4 - 8 ft
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	8p8c (RJ45, Ethernet)
Shielding	Shielded	Shielded
Style	Cat6 LSZH	Cat6 LSZH

CABLE MOD 8P8C PLUG TO PLUG 7'

Part	Style	Cable Type	Color	Shielding	Number of Positions/Contacts	Connector Type	Mounting Type	Features	Length	Length	Length [x]	Length [x]
Pactech PN-F6A-STP-07-SN-28B	Cat6 LSZH	Flat, Straight Cable	Aqua	Shielded	8p8c (RJ45, Ethernet)	Plug to Plug	Free Hanging (In-Line)	28AWG STP, EIA-364-21 & EIA-364-20, FM-PE+Skin, Horizontal Frame Test Passed, Sturdy	2.13 m	84 in
Pactech PN-F6A-STP-20-SN-28B	Cat6 LSZH	Flat, Straight Cable	Aqua	Shielded	8p8c (RJ45, Ethernet)	Plug to Plug	Free Hanging (In-Line)	28AWG STP, EIA-364-21 & EIA-364-20, FM-PE+Skin, Horizontal Frame Test Passed, Sturdy	6.1 m	20 ft
Pactech PN-F6A-STP-05-SN-28B	Cat6 LSZH	Flat, Straight Cable	Aqua	Shielded	8p8c (RJ45, Ethernet)	Plug to Plug	Free Hanging (In-Line)	28AWG STP, EIA-364-21 & EIA-364-20, FM-PE+Skin, Horizontal Frame Test Passed, Sturdy	1.52 m	5 '
Pactech PN-F6A-STP-04-SN-28B	Cat6 LSZH	Flat, Straight Cable	Aqua	Shielded	8p8c (RJ45, Ethernet)	Plug to Plug	Free Hanging (In-Line)	28AWG STP, EIA-364-21 & EIA-364-20, FM-PE+Skin, Horizontal Frame Test Passed, Sturdy			1.22 m	4 ft
Pactech PN-F6A-STP-08-SN-28B	Cat6 LSZH	Flat, Straight Cable	Aqua	Shielded	8p8c (RJ45, Ethernet)	Plug to Plug	Free Hanging (In-Line)	28AWG STP, EIA-364-21 & EIA-364-20, FM-PE+Skin, Horizontal Frame Test Passed, Sturdy			2.44 m	8 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Modular Cable Plug to Plug 8p8c (RJ45, Ethernet) 8.00' (2.44m) Shielded

Technical documentation and resources
