C2119A.21.04

Active

Prysmian Group

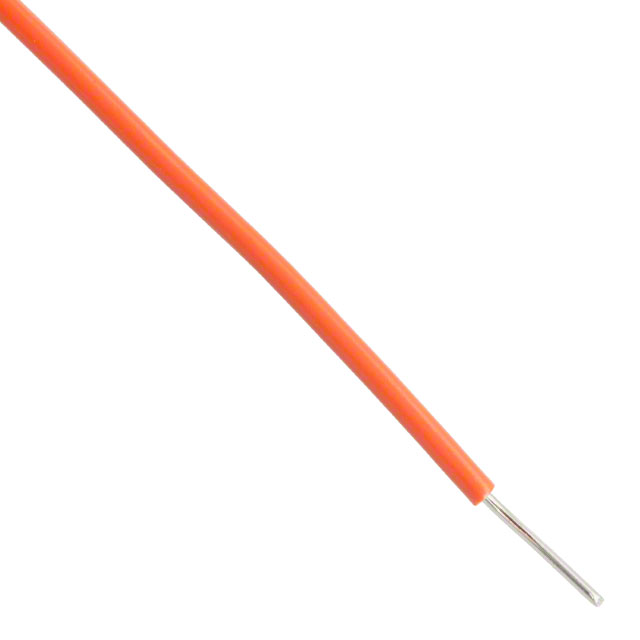

HOOK-UP SOLID 18AWG ORANGE 1000'

Deep-Dive with AI

Search across all available documentation for this part.

C2119A.21.04

Active

Prysmian Group

HOOK-UP SOLID 18AWG ORANGE 1000'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C2119A.21.04

Cable Type	Hook-Up
Conductor Material	Copper, Annealed Tinned
Conductor Strand	Solid
Jacket (Insulation) Diameter [diameter]	2.64 mm
Jacket (Insulation) Diameter [diameter]	0.104 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.81 mm
Jacket (Insulation) Thickness	0.032 in
Jacket Color	Orange
Length	1000 ft
Length	304.8 m
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Ratings	ASTM B-33, UL Style 1015
Voltage	600 V
Wire Gauge	18 AWG

C2119A Series

Part	Wire Gauge	Cable Type	Jacket (Insulation) Material	Conductor Strand	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Ratings	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Length	Length
Prysmian Group C2119A.12.08	18 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Solid	Brown	0.81 mm	0.032 in	-20 C	105 ░C	Copper Annealed Tinned	ASTM B-33 UL Style 1015	600 V	2.64 mm	0.104 in	30.5 m	100 ft
Prysmian Group C2119A.21.04	18 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Solid	Orange	0.81 mm	0.032 in	-20 C	105 ░C	Copper Annealed Tinned	ASTM B-33 UL Style 1015	600 V	2.64 mm	0.104 in			1000 ft	304.8 m
Prysmian Group C2119A.21.06	18 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Solid	Green	0.81 mm	0.032 in	-20 C	105 ░C	Copper Annealed Tinned	ASTM B-33 UL Style 1015	600 V	2.64 mm	0.104 in			1000 ft	304.8 m
Prysmian Group C2119A.18.19	18 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Solid	Violet	0.81 mm	0.032 in	-20 C	105 ░C	Copper Annealed Tinned	ASTM B-33 UL Style 1015	600 V	2.64 mm	0.104 in	152.4 m	500 '
Prysmian Group C2119A.12.10	18 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Solid	Gray	0.81 mm	0.032 in	-20 C	105 ░C	Copper Annealed Tinned	ASTM B-33 UL Style 1015	600 V	2.64 mm	0.104 in	30.5 m	100 ft
Prysmian Group C2119A.18.06	18 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Solid	Green	0.81 mm	0.032 in	-20 C	105 ░C	Copper Annealed Tinned	ASTM B-33 UL Style 1015	600 V	2.64 mm	0.104 in	152.4 m	500 '
Prysmian Group C2119A.12.03	18 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Solid	Red	0.81 mm	0.032 in	-20 C	105 ░C	Copper Annealed Tinned	ASTM B-33 UL Style 1015	600 V	2.64 mm	0.104 in	30.5 m	100 ft
Prysmian Group C2119A.12.19	18 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Solid	Violet	0.81 mm	0.032 in	-20 C	105 ░C	Copper Annealed Tinned	ASTM B-33 UL Style 1015	600 V	2.64 mm	0.104 in	30.5 m	100 ft
Prysmian Group C2119A.21.01	18 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Solid	Black	0.81 mm	0.032 in	-20 C	105 ░C	Copper Annealed Tinned	ASTM B-33 UL Style 1015	600 V	2.64 mm	0.104 in			1000 ft	304.8 m
Prysmian Group C2119A.18.03	18 AWG	Hook-Up	Poly-Vinyl Chloride (PVC)	Solid	Red	0.81 mm	0.032 in	-20 C	105 ░C	Copper Annealed Tinned	ASTM B-33 UL Style 1015	600 V	2.64 mm	0.104 in	152.4 m	500 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 185.16
		5	$ 164.59
		10	$ 149.16

Description

General part information

C2119A Series

18 AWG Hook-Up Wire Solid Orange 600V 1000.0' (304.8m)

Documents

Technical documentation and resources

No documents available
