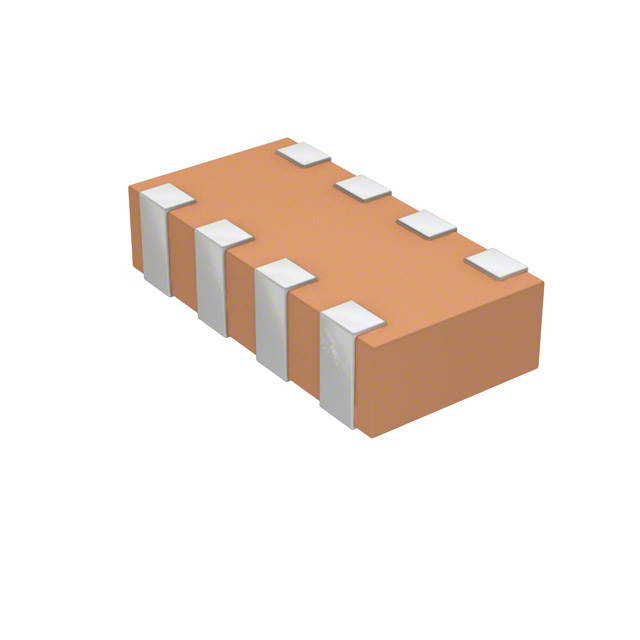

C1632C103M5RACAUTO
ObsoleteKEMET
CAP CER 10000PF 50V X7R 0612
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C1632C103M5RACAUTO
ObsoleteKEMET
CAP CER 10000PF 50V X7R 0612
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C1632C103M5RACAUTO |
|---|---|
| Capacitance | 10000 pF |
| Circuit Type | Isolated |
| Dielectric Material | Ceramic |
| Height - Seated (Max) [Max] [z] | 0.035 " |
| Height - Seated (Max) [Max] [z] | 0.9 mm |
| Mounting Type | Surface Mount |
| Number of Capacitors | 4 |
| Package / Case | 1206 (3216 Metric) |
| Ratings | AEC-Q200 |
| Size / Dimension [x] | 0.126 " |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Supplier Device Package | 0612 |
| Supplier Device Package | 1632 |
| Temperature Coefficient | X7R |
| Tolerance | 20 % |
| Voltage - Rated | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.51 | |
| 10 | $ 0.34 | |||
| 50 | $ 0.27 | |||
| 100 | $ 0.22 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.15 | |||
| Digi-Reel® | 1 | $ 0.51 | ||
| 10 | $ 0.34 | |||
| 50 | $ 0.27 | |||
| 100 | $ 0.22 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.15 | |||
| Tape & Reel (TR) | 4000 | $ 0.11 | ||
Description
General part information
C1632C Series
10000pF Isolated Capacitor 4 Array 50 V X7R 1206 (3216 Metric)
