Q-0303M00051.5M

Active

Amphenol Custom Cable

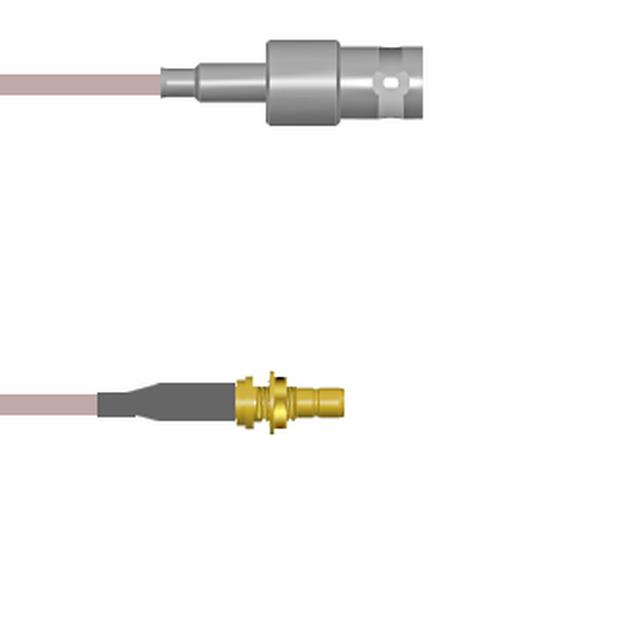

CBL ASSY BNC-SMB JACK-JACK 4.9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0303M00051.5M

Active

Amphenol Custom Cable

CBL ASSY BNC-SMB JACK-JACK 4.9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0303M00051.5M

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	SMB Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	59.1 in
Length	4.9 ft
Length	1.5 m
Overall Impedance	50 Ohms
Style	BNC to SMB

Q-0303M0 Series

Part	Length	Length	Length	Color	2nd Connector Mounting Type	Overall Impedance	1st Connector Mounting Type	Frequency - Max [Max]	1st Connector	2nd Connector Mounting Feature	Style	2nd Connector	1st Contact Gender	Features	Cable Type	2nd Contact Gender	Length [x]	Length [x]
Amphenol Custom Cable Q-0303M0003084i	84 in	2.1 m	7 ft	Black	Panel Mount	50 Ohms	Free Hanging (In-Line)	4 GHz	BNC Jack	Bulkhead - Front Side Nut	BNC to SMB	SMB Jack	Female	Shielded	RG-174	Female
Amphenol Custom Cable Q-0303M00051.5M	59.1 in	1.5 m	4.9 ft	Copper	Panel Mount	50 Ohms	Free Hanging (In-Line)	4 GHz	BNC Jack	Bulkhead - Front Side Nut	BNC to SMB	SMB Jack	Female	Shielded	RG-316	Female
Amphenol Custom Cable Q-0303M0003060i	5 '	1.5 m	5 ft	Black	Panel Mount	50 Ohms	Free Hanging (In-Line)	4 GHz	BNC Jack	Bulkhead - Front Side Nut	BNC to SMB	SMB Jack	Female	Shielded	RG-174	Female
Amphenol Custom Cable Q-0303M0003018i				Black	Panel Mount	50 Ohms	Free Hanging (In-Line)	4 GHz	BNC Jack	Bulkhead - Front Side Nut	BNC to SMB	SMB Jack	Female	Shielded	RG-174	Female	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0303M0003001M	39.4 in	1 m	3.3 ft	Black	Panel Mount	50 Ohms	Free Hanging (In-Line)	4 GHz	BNC Jack	Bulkhead - Front Side Nut	BNC to SMB	SMB Jack	Female	Shielded	RG-174	Female
Amphenol Custom Cable Q-0303M0003036i	36 in	91.44 cm		Black	Panel Mount	50 Ohms	Free Hanging (In-Line)	4 GHz	BNC Jack	Bulkhead - Front Side Nut	BNC to SMB	SMB Jack	Female	Shielded	RG-174	Female
Amphenol Custom Cable Q-0303M00032.5M	98.4 in	2.5 m	8.2 '	Black	Panel Mount	50 Ohms	Free Hanging (In-Line)	4 GHz	BNC Jack	Bulkhead - Front Side Nut	BNC to SMB	SMB Jack	Female	Shielded	RG-174	Female
Amphenol Custom Cable Q-0303M0005072i	72 in	1.8 m	6 ft	Copper	Panel Mount	50 Ohms	Free Hanging (In-Line)	4 GHz	BNC Jack	Bulkhead - Front Side Nut	BNC to SMB	SMB Jack	Female	Shielded	RG-316	Female
Amphenol Custom Cable Q-0303M0003003i	3 in	76.2 mm		Black	Panel Mount	50 Ohms	Free Hanging (In-Line)	4 GHz	BNC Jack	Bulkhead - Front Side Nut	BNC to SMB	SMB Jack	Female	Shielded	RG-174	Female
Amphenol Custom Cable Q-0303M0003048i	48 in	1200 mm	4 ft	Black	Panel Mount	50 Ohms	Free Hanging (In-Line)	4 GHz	BNC Jack	Bulkhead - Front Side Nut	BNC to SMB	SMB Jack	Female	Shielded	RG-174	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 81.67
		25	$ 76.05
		50	$ 70.43
		100	$ 65.62
		250	$ 61.61

Description

General part information

Q-0303M0 Series

Cable Assembly Coaxial BNC to SMB RG-316 59.1" (1.5m) 4.9'

Documents

Technical documentation and resources

No documents available
