Description
General part information
6NH98601 Series

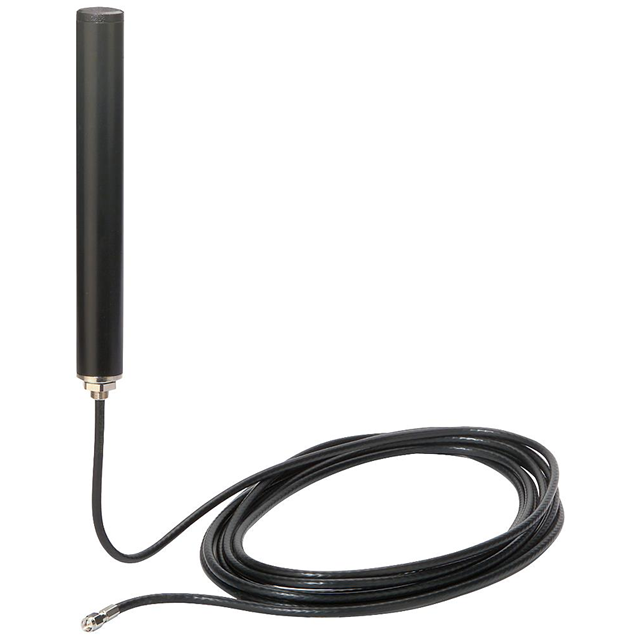

RF ANTENNA GSM, LTE, UMTS Whip, Straight SMA Male Bracket Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 6NH98601AA00 |
|---|---|
| Antenna Type | Straight, Whip |
| Applications | LTE, UMTS, GSM |
| Features | 5m, Cable |
| Frequency (Center/Band) | 1.9GHz, 800MHz, 850MHz, 1.8GHz, 900MHz, 2.6GHz |
| Frequency Group | Wide Band |
| Gain | 0 dBi |
| Height (Max) | 7.598 in |
| Ingress Protection | IP65 |
| Mounting Type | Bracket Mount |
| Number of Bands | 6 |
| RF Family/Standard | Cellular |
| Termination Type | SMA Male |
| VSWR | 1.9 |
