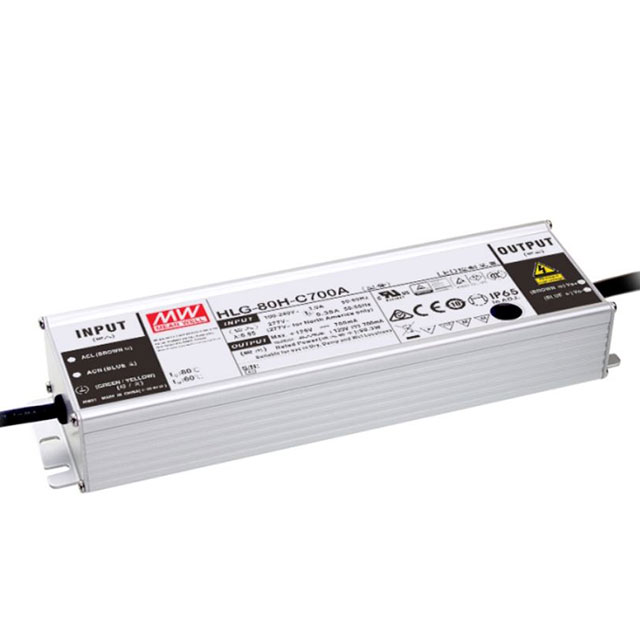

HLG-80H-C700AB

Active

MEAN WELL USA Inc.

LED DRVR CC/CV AC/DC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HLG-80H-C700AB

Active

MEAN WELL USA Inc.

LED DRVR CC/CV AC/DC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HLG-80H-C700AB

Approval Agency	TUV, CCC, cURus, EAC, CB, RCM, CE
Current - Output (Max) [Max]	700 mA
Efficiency	91.5 %
Features	OTP, OVP, SCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Power (Watts)	90 W
Ratings	IP65
Size / Dimension [x]	171.8 mm
Size / Dimension [x]	6.76 in
Size / Dimension [y]	61.5 mm
Size / Dimension [y]	2.42 in
Size / Dimension [z]	38.8 mm
Size / Dimension [z]	1.53 in
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current
Voltage - Input (Max) [Max]	305 VAC
Voltage - Input (Min) [Min]	90 VAC
Voltage - Isolation	3750 V

HLG-80H Series

Part	Voltage - Output [Min]	Voltage - Output [Max]	Approval Agency	Type	Termination Style	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Topology	Ratings	Efficiency	Voltage - Input (Min) [Min]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Dimming	Features	Number of Outputs	Voltage - Input (Max) [Max]	Voltage - Isolation	Current - Output (Max) [Max]	Power (Watts)	Voltage - Output
MEAN WELL USA Inc. HLG-80H-36B	21.6 V	36 V	CB CCC CE cULus cURus PSE RCM TUV UL	Constant Current Voltage	Wire Leads	38.8 mm	1.53 in	61.5 mm	171.8 mm	6.76 in	2.42 in	AC DC Converter	IP67	91 %	90 VAC	Chassis Mount	-40 °C	80 C	Analog PWM	OCP OTP OVP SCP	1	305 VAC	3750 V	2.3 A	83 W
MEAN WELL USA Inc. HLG-80H-C700AB			CB CCC CE cURus EAC RCM TUV	Constant Current	Wire Leads	38.8 mm	1.53 in	61.5 mm	171.8 mm	6.76 in	2.42 in	AC DC Converter	IP65	91.5 %	90 VAC	Chassis Mount	-40 °C	80 C		OTP OVP SCP	1	305 VAC	3750 V	700 mA	90 W
MEAN WELL USA Inc. HLG-80H-48AB			CB CCC CE cULus cURus EAC KC PSE RCM TUV UL	Constant Current Voltage	Wire Leads	38.8 mm	1.53 in	61.5 mm	171.8 mm	6.76 in	2.42 in	AC DC Converter	IP65	91 %	90 VAC	Chassis Mount	-40 °C	80 C		OCP OTP OVP SCP	1	305 VAC	3750 V	1.7 A	82 W	48 V
MEAN WELL USA Inc. HLG-80H-54AB			CB CCC CE cULus cURus EAC KC PSE RCM TUV UL	Constant Current Voltage	Wire Leads	38.8 mm	1.53 in	61.5 mm	171.8 mm	6.76 in	2.42 in	AC DC Converter	IP65	91 %	90 VAC	Chassis Mount	-40 °C	80 C		OCP OTP OVP SCP	1	305 VAC	3750 V	1.5 A	81 W	54 V
MEAN WELL USA Inc. HLG-80H-24A	22 V	27 V	CB CCC CE cULus cURus PSE RCM TUV UL	Constant Current Voltage	Wire Leads	38.8 mm	1.53 in	61.5 mm	171.8 mm	6.76 in	2.42 in	AC DC Converter	IP65	90.5 %	90 VAC	Chassis Mount	-40 °C	80 C		OCP OTP OVP SCP	1	305 VAC	3750 V	3.4 A	82 W
MEAN WELL USA Inc. HLG-80H-36AB			CB CCC CE cULus cURus EAC KC PSE RCM TUV UL	Constant Current Voltage	Wire Leads	38.8 mm	1.53 in	61.5 mm	171.8 mm	6.76 in	2.42 in	AC DC Converter	IP65	91 %	90 VAC	Chassis Mount	-40 °C	80 C	Analog PWM	OCP OTP OVP SCP	1	305 VAC	3750 V	2.3 A	83 W	36 V
MEAN WELL USA Inc. HLG-80H-12	7.2 V	12 V	CB CCC CE cULus cURus PSE RCM TUV UL	Constant Current Voltage	Wire Leads	38.8 mm	1.53 in	61.5 mm	171.8 mm	6.76 in	2.42 in	AC DC Converter	IP67	88 %	90 VAC	Chassis Mount	-40 °C	80 C		OCP OTP OVP SCP	1	305 VAC	3750 V	5 A	60 W
MEAN WELL USA Inc. HLG-80H-42AB			CB CCC CE cULus cURus EAC KC PSE RCM TUV UL	Constant Current Voltage	Wire Leads	38.8 mm	1.53 in	61.5 mm	171.8 mm	6.76 in	2.42 in	AC DC Converter	IP65	91 %	90 VAC	Chassis Mount	-40 °C	80 C	Analog PWM	OCP OTP OVP SCP	1	305 VAC	3750 V	1.95 A	82 W	42 V
MEAN WELL USA Inc. HLG-80H-15B			CB CCC CE cULus cURus PSE RCM TUV UL	Constant Current Voltage	Wire Leads	38.8 mm	1.53 in	61.5 mm	171.8 mm	6.76 in	2.42 in	AC DC Converter	IP67	89 %	90 VAC	Chassis Mount	-40 °C	80 C	Analog PWM	OCP OTP OVP SCP	1	305 VAC	3750 V	5 A	75 W
MEAN WELL USA Inc. HLG-80H-C350A	128 V	257 V	CB CCC CE cURus PSE RCM TUV	Constant Current	Wire Leads	38.8 mm	1.53 in	61.5 mm	171.8 mm	6.76 in	2.42 in	AC DC Converter	IP65	91.5 %	90 VAC	Chassis Mount	-40 °C	80 C		OTP OVP SCP	1	305 VAC	3750 V	350 mA	90 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	16	$ 44.92

Description

General part information

HLG-80H Series

700mA 64 ~ 129V Constant Current LED Driver AC DC Converter Topology 1 Output
