JF15CP2C

Active

NKK Switches

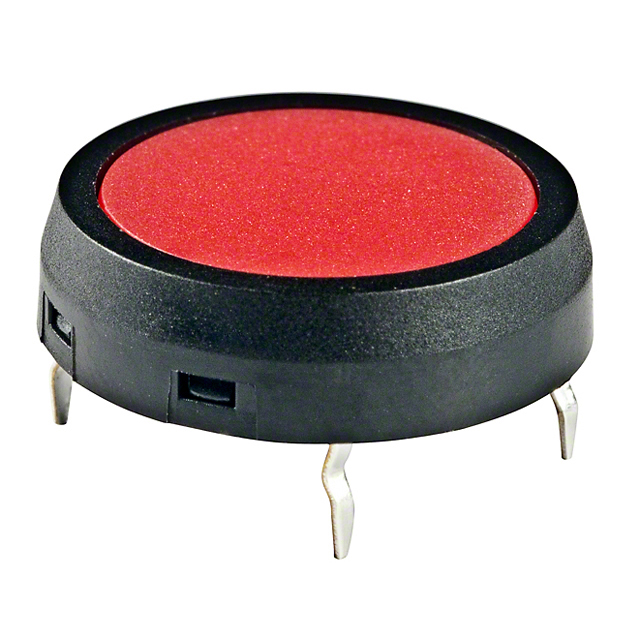

ULTRA-THIN PROCESS SEALED TACTILE SWITCH; POLES: SPST-NO; CIRCUITS: OFF-MOM; CONTACT RATING: 0.05A @ 24VDC; ACTUATOR TYPE: ROUND BUTTON; MOUNTING TYPE: THROUGH HOLE; ACTUATOR HEIGHT OFF PCB FROM PINS: 5.08MM; ACTUATOR ORIENTATION: TOP ACTUATED; TERMINATION STYLE: PC PIN; OUTLINE: 17.70MM DIA; ILLUMINATION: NON-ILLUMINATED; OPERATING FORCE: 300GF; FEATURES: PROCESS SEALED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

JF15CP2C

Active

NKK Switches

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JF15CP2C

Actuator Height off PCB, Vertical [z]	5.08 mm
Actuator Material	Nylon, Polyamide (PA)
Actuator Orientation	Top Actuated
Actuator Type	Round Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Features	Process Sealed
Illumination	Non-Illuminated
Mechanical Life	500000 Cycles
Mounting Type	Through Hole
Operating Force	300 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Outline [diameter]	17.7 mm
Switch Function	Off-Mom
Switch Travel	0.4 mm
Termination Style	PC Pin

JF15CP Series

Part	Illumination	Features	Switch Function	Contact Rating @ Voltage	Actuator Material	Outline [diameter]	Circuit	Operating Force	Switch Travel	Actuator Type	Actuator Orientation	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Height off PCB, Vertical [z]	Mechanical Life	Mounting Type
NKK Switches JF15CP2D	Non-Illuminated	Process Sealed	Off-Mom	0.05 A 24 VDC	Nylon Polyamide (PA)	17.7 mm	SPST-NO	300 gf	0.4 mm	Round Button	Top Actuated	PC Pin	-25 °C	85 °C	5.08 mm	500000 Cycles	Through Hole
NKK Switches JF15CP2C	Non-Illuminated	Process Sealed	Off-Mom	0.05 A 24 VDC	Nylon Polyamide (PA)	17.7 mm	SPST-NO	300 gf	0.4 mm	Round Button	Top Actuated	PC Pin	-25 °C	85 °C	5.08 mm	500000 Cycles	Through Hole
NKK Switches JF15CP2F	Non-Illuminated	Process Sealed	Off-Mom	0.05 A 24 VDC	Nylon Polyamide (PA)	17.7 mm	SPST-NO	300 gf	0.4 mm	Round Button	Top Actuated	PC Pin	-25 °C	85 °C	5.08 mm	500000 Cycles	Through Hole
NKK Switches JF15CP1G	Non-Illuminated	Process Sealed	Off-Mom	0.05 A 24 VDC	Nylon Polyamide (PA)	17.7 mm	SPST-NO	300 gf	0.4 mm	Round Button	Top Actuated	PC Pin	-25 °C	85 °C	5.08 mm	500000 Cycles	Through Hole
NKK Switches JF15CP2A	Non-Illuminated	Process Sealed	Off-Mom	0.05 A 24 VDC	Nylon Polyamide (PA)	17.7 mm	SPST-NO	300 gf	0.4 mm	Round Button	Top Actuated	PC Pin	-25 °C	85 °C	5.08 mm	500000 Cycles	Through Hole
NKK Switches JF15CP2G	Non-Illuminated	Process Sealed	Off-Mom	0.05 A 24 VDC	Nylon Polyamide (PA)	17.7 mm	SPST-NO	300 gf	0.4 mm	Round Button	Top Actuated	PC Pin	-25 °C	85 °C	5.08 mm	500000 Cycles	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.54
		10	$ 3.39
		25	$ 3.10
		80	$ 2.68
		230	$ 2.43
		440	$ 2.26
		945	$ 2.09
		2400	$ 1.90
		4900	$ 1.82
Newark	Each	1	$ 3.98
		10	$ 3.50
		25	$ 3.18

Description

General part information

JF15CP Series

Tactile Switch SPST-NO Top Actuated Through Hole
