A221T20V22

Active

Nicomatic

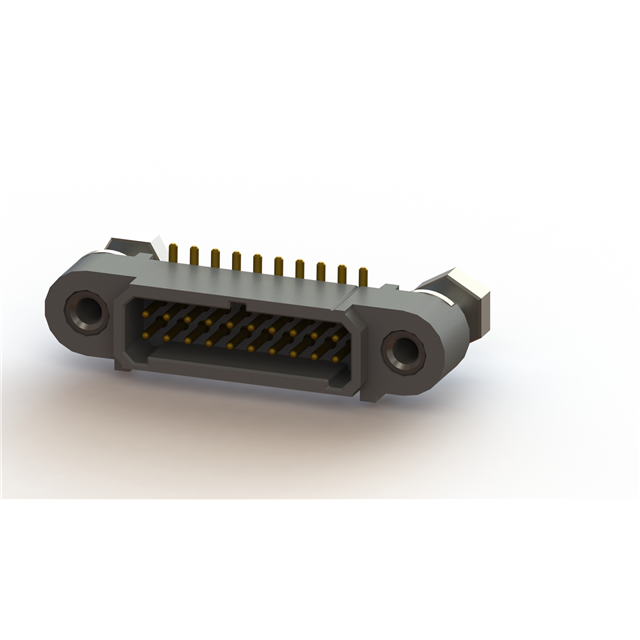

MALE 20POS STRAIGHT SMT 1.27MM

Search across all available documentation for this part.

Active

Nicomatic

MALE 20POS STRAIGHT SMT 1.27MM

Technical Specifications

Parameters and characteristics for this part

Specification	A221T20V22

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.15 µm
Contact Finish Thickness - Mating	5.9 µin
Contact Finish Thickness - Post	0.15 µm
Contact Finish Thickness - Post	5.9 µin
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.5 A
Features	Mounting Flange, Mating Flange, Mounting Hardware
Insulation Color	Black
Insulation Height [custom]	0.157 in
Insulation Height [custom]	4 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating	0.039 "
Row Spacing - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	600 VAC

MALE 20POS STRAIGHT SMT 1.27MM

Part	Insulation Color	Current Rating (Amps)	Number of Positions	Features	Style	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Termination	Insulation Height [custom]	Insulation Height [custom]	Voltage Rating	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Type	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Contact Material	Insulation Material	Material Flammability Rating	Mounting Type
Nicomatic A221T20V22	Black	2.5 A	20	Mating Flange, Mounting Flange, Mounting Hardware	Board to Board, Cable	Gold	0.15 µm	5.9 µin	0.039 "	1 mm	Circular	Solder	0.157 in	4 mm	600 VAC	0.039 in	1 mm	2	Gold	-65 ░C	200 °C	All	Male Pin	Header	0.15 µm	5.9 µin	Shrouded - 4 Wall	Copper Alloy	Liquid Crystal Polymer (LCP)	UL94 V-0	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 20 position 0.039" (1.00mm)
