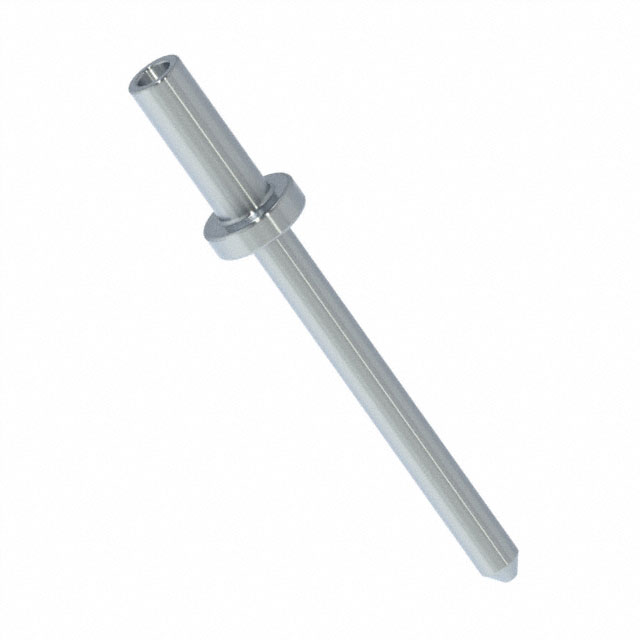

3111-3-00-80-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3111-3-00-80-00-00-08-0 |
|---|---|
| Board Thickness | 0.094 in |
| Board Thickness | 2.39 mm |
| Contact Finish | Tin |
| Contact Finish Thickness | 200 Áin |
| Contact Finish Thickness | 5.08 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 1.78 mm |
| Flange Diameter [diameter] | 0.07 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 7.62 mm |
| Length - Above Flange [x] | 0.3 " |
| Length - Below Flange [x] | 2.87 mm |
| Length - Below Flange [x] | 0.113 in |
| Length - Overall [x] | 11 mm |
| Length - Overall [x] | 0.433 in |
| Mounting Hole Diameter [diameter] | 1.09 mm |
| Mounting Hole Diameter [diameter] | 0.043 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.76 mm |
| Pin Size - Above Flange [diameter] | 0.03 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.76 | |
| 10 | $ 0.64 | |||
| 25 | $ 0.61 | |||
| 50 | $ 0.60 | |||
| 100 | $ 0.58 | |||
| 250 | $ 0.52 | |||
| 500 | $ 0.47 | |||
| 1000 | $ 0.42 | |||
| 3000 | $ 0.38 | |||
Description
General part information
3111-3 Series
PC Pin Terminal Connector Through Hole Tin 0.030" (0.76mm) Dia
