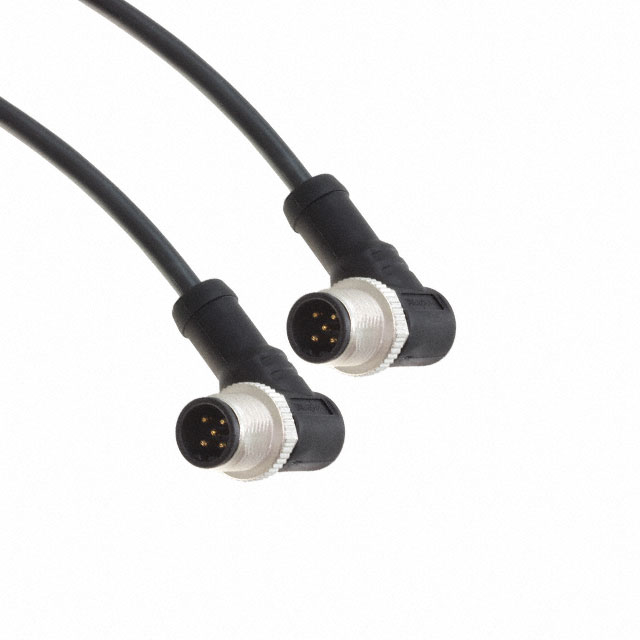

M12B05MR-12BMR-SDA05

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, B CODE, METAL, 4A, 05 PINS, MALE CONNECTOR, MALE CONTACT, RIGHT ANGLE-TO-RIGHT ANGLE, SCREW THRE

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, B CODE, METAL, 4A, 05 PINS, MALE CONNECTOR, MALE CONTACT, RIGHT ANGLE-TO-RIGHT ANGLE, SCREW THRE

Technical Specifications

Parameters and characteristics for this part

Specification	M12B05MR-12BMR-SDA05

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	5
1st Connector Number of Positions Loaded	All
1st Connector Orientation	B
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	5
2nd Connector Number of Positions Loaded	All
2nd Connector Orientation	B
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Receptacle, Right Angle
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP68, IP69K
Length [x]	1.64 ft
Length [x]	500 mm
Shielding	Unshielded
Usage	Industrial Environments

Part	Ingress Protection	1st Connector Mounting Type	2nd Connector Shell Size - Insert	Assembly Configuration	1st Connector Gender	2nd Connector Number of Positions	1st Connector Number of Positions	2nd Connector Number of Positions Loaded	Color	1st Connector Number of Positions Loaded	Shielding	2nd Connector Mounting Type	1st Connector Orientation	1st Connector Shell Size - Insert	2nd Connector Orientation	Cable Material	Length [x]	Length [x]	2nd Connector Type	Usage	Cable Type	1st Connector Type
Amphenol LTW M12B05MR-12BMR-SBA05	IP68 IP69K	Free Hanging (In-Line)	M12	Standard	Male Pins	5	5	All	Black	All	Unshielded	Free Hanging (In-Line)	B	M12	B	Polyurethane (PUR)	1.64 ft	500 mm	Receptacle Right Angle	Industrial Environments	Round	Receptacle Right Angle
Amphenol LTW M12B05MR-12BMR-SDA05	IP68 IP69K	Free Hanging (In-Line)	M12	Standard	Male Pins	5	5	All	Black	All	Unshielded	Free Hanging (In-Line)	B	M12	B	Polyvinyl Chloride (PVC)	1.64 ft	500 mm	Receptacle Right Angle	Industrial Environments	Round	Receptacle Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Cable Assembly Unshielded 1.64' (500.00mm)
