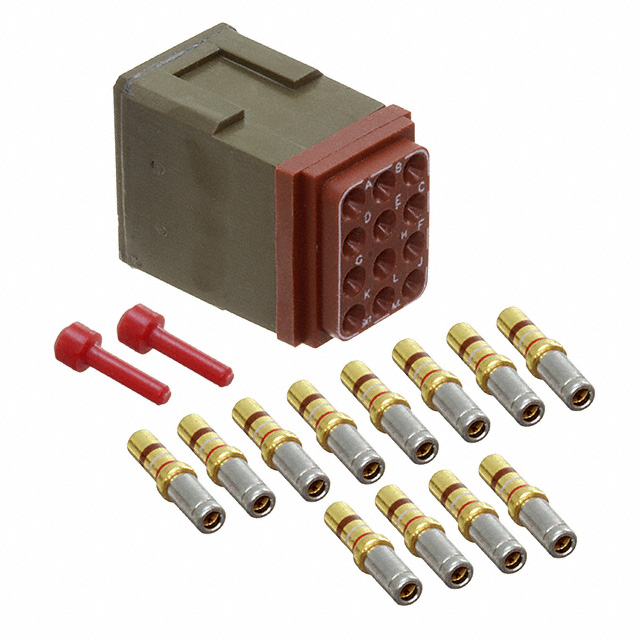

CTJ120E01B-513
ActiveTE Connectivity Raychem Cable Protection
CONN FEEDBACK MOD SZ20 0.672" L
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CTJ120E01B-513
ActiveTE Connectivity Raychem Cable Protection
CONN FEEDBACK MOD SZ20 0.672" L
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CTJ120E01B-513 |
|---|---|
| Contact Size | 20 |
| Module Capacity | 1 |
| Size / Dimension [x] | 0.672 " |
| Size / Dimension [x] | 17.07 mm |
| Size / Dimension [y] | 0.51 in |
| Size / Dimension [y] | 12.95 mm |
| Size / Dimension [z] | 0.92 " |
| Size / Dimension [z] | 23.37 mm |
| Type | Feedback Module Block |
CTJ12 Series
| Part | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Module Capacity | Contact Size | Type |
|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 0.92 " | 0.51 in | 23.37 mm | 0.672 " | 12.95 mm | 17.07 mm | 2 | 20 | Feedback Module Block |
TE Connectivity Raychem Cable Protection | 0.76 " | 0.51 in | 19.3 mm | 0.672 " | 12.95 mm | 17.07 mm | 1 | 22 | Feedback Module Block |
TE Connectivity Raychem Cable Protection | 0.92 " | 0.51 in | 23.37 mm | 0.672 " | 12.95 mm | 17.07 mm | 1 | 20 | Feedback Module Block |
TE Connectivity Raychem Cable Protection | 0.92 " | 0.51 in | 23.37 mm | 0.672 " | 12.95 mm | 17.07 mm | 2 | 20 | Feedback Module Block |
TE Connectivity Raychem Cable Protection | 0.92 " | 0.51 in | 23.37 mm | 0.672 " | 12.95 mm | 17.07 mm | 6 | 20 | Feedback Module Block |
TE Connectivity Raychem Cable Protection | 0.92 " | 0.51 in | 23.37 mm | 0.672 " | 12.95 mm | 17.07 mm | 4 | 20 | Feedback Module Block |
TE Connectivity Raychem Cable Protection | 0.92 " | 0.51 in | 23.37 mm | 0.672 " | 12.95 mm | 17.07 mm | 1 | 20 | Feedback Module Block |
TE Connectivity Raychem Cable Protection | 0.76 " | 0.51 in | 19.3 mm | 0.672 " | 12.95 mm | 17.07 mm | 10 | 22 | Feedback Module Block |
TE Connectivity Raychem Cable Protection | 0.76 " | 0.51 in | 19.3 mm | 0.672 " | 12.95 mm | 17.07 mm | 5 | 22 | Feedback Module Block |
TE Connectivity Raychem Cable Protection | 0.92 " | 0.51 in | 23.37 mm | 0.672 " | 12.95 mm | 17.07 mm | 4 | 20 | Feedback Module Block |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 43.12 | |
| 10 | $ 37.76 | |||
| 25 | $ 36.13 | |||
| 50 | $ 34.97 | |||
| 100 | $ 33.80 | |||
| 250 | $ 31.94 | |||
Description
General part information
CTJ12 Series
Connector Feedback Module Block Contact Size 20
