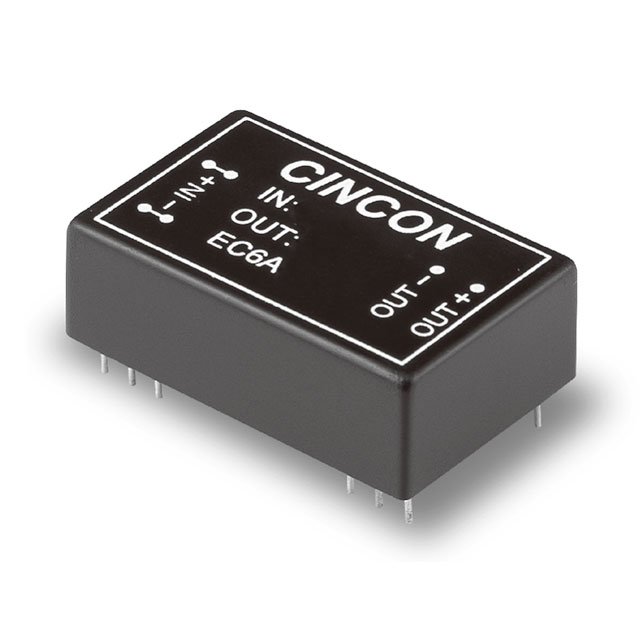

Specification	EC6A15

Applications	ITE (Commercial)
Approval Agency	cURus, CE
Current - Output (Max)	310 mA
Efficiency	87 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Package Leads	14 Leads
Package Name	24-DIP Module
Power (Watts)	7.4 W
Size / Dimension Height	0.4 in
Size / Dimension Length	1.25 in
Size / Dimension Width	0.8 in
Standard Number	60950-1
Type	Isolated Module
Voltage - Input (Max)	36 V
Voltage - Input (Min)	18 V
Voltage - Isolation	1500 Vrns
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

EC6A Series

Part	Power (Watts)	Voltage - Isolation	Number of Outputs	Applications	Mounting Type	Voltage - Input (Max)	Efficiency	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Approval Agency	Current - Output (Max)	Features	Standard Number	Type	Voltage - Output 2	Voltage - Output 1	Voltage - Input (Min)	Package Leads	Package Name	Operating Temperature (Min)	Operating Temperature (Max)	Control Features
Cincon Electronics Co. LTD EC6A15	7.4 W	1500 Vrns	2	ITE (Commercial)	Through Hole	36 V	87 %	0.4 in	1.25 in	0.8 in	CE cURus	310 mA	SCP	60950-1	Isolated Module	-12 V	12 V	18 V	14 Leads	24-DIP Module	-40 °C	100 °C
Cincon Electronics Co. LTD EC6A21S	7.5 W	1500 Vrns	1	ITE (Commercial)	Surface Mount	72 V	81 %	0.45 in	1.25 in	0.8 in	CE cURus	1.5 A	Adjustable Output Remote On/Off	60950-1 62368-1	Isolated Module		5 V	36 V	18 Leads	24-SMD Module	-25 °C	71 °C	Active High Enable
Cincon Electronics Co. LTD EC6A01S	7.5 W	1500 Vrns	1	ITE (Commercial)	Surface Mount	18 V	80 %	0.45 in	1.25 in	0.8 in	CE cURus	1.5 A	Adjustable Output Remote On/Off	60950-1 62368-1	Isolated Module		5 V	9 V	18 Leads	24-SMD Module	-25 °C	71 °C	Active High Enable
Cincon Electronics Co. LTD EC6A11S	7.5 W	1500 Vrns	1	ITE (Commercial)	Surface Mount	36 V	83 %	0.45 in	1.25 in	0.8 in	CE cURus	1.5 A	Adjustable Output Remote On/Off	60950-1 62368-1	Isolated Module		5 V	18 V	18 Leads	24-SMD Module	-25 °C	71 °C	Active High Enable
Cincon Electronics Co. LTD EC6A25	7.4 W	1500 Vrns	2	ITE (Commercial)	Through Hole	72 V	85 %	0.4 in	1.25 in	0.8 in	CE cURus	310 mA	SCP	60950-1	Isolated Module	-12 V	12 V	36 V	14 Leads	24-DIP Module	-40 °C	100 °C
Cincon Electronics Co. LTD EC6A11	7.5 W	1500 Vrns	1	ITE (Commercial)	Through Hole	36 V	83 %	0.4 in	1.25 in	0.8 in	CE cURus	1.5 A	SCP	60950-1	Isolated Module		5 V	18 V	14 Leads	24-DIP Module	-40 °C	100 °C
Cincon Electronics Co. LTD EC6A16S	7.5 W	1500 Vrns	2	ITE (Commercial)	Surface Mount	36 V	84 %	0.45 in	1.25 in	0.8 in	CE cURus	250 mA	Adjustable Output Remote On/Off	60950-1 62368-1	Isolated Module	-15 V	15 V	18 V	18 Leads	24-SMD Module	-25 °C	71 °C	Active High Enable
