2016695-4
ActiveTE Connectivity AMP Connectors
RF CABLE ASSEMBLIES RF CA,RP-SMA BKHD UMCC IV,L200MM
2016695-4
ActiveTE Connectivity AMP Connectors
RF CABLE ASSEMBLIES RF CA,RP-SMA BKHD UMCC IV,L200MM
Description
General part information
RP-SMA Series

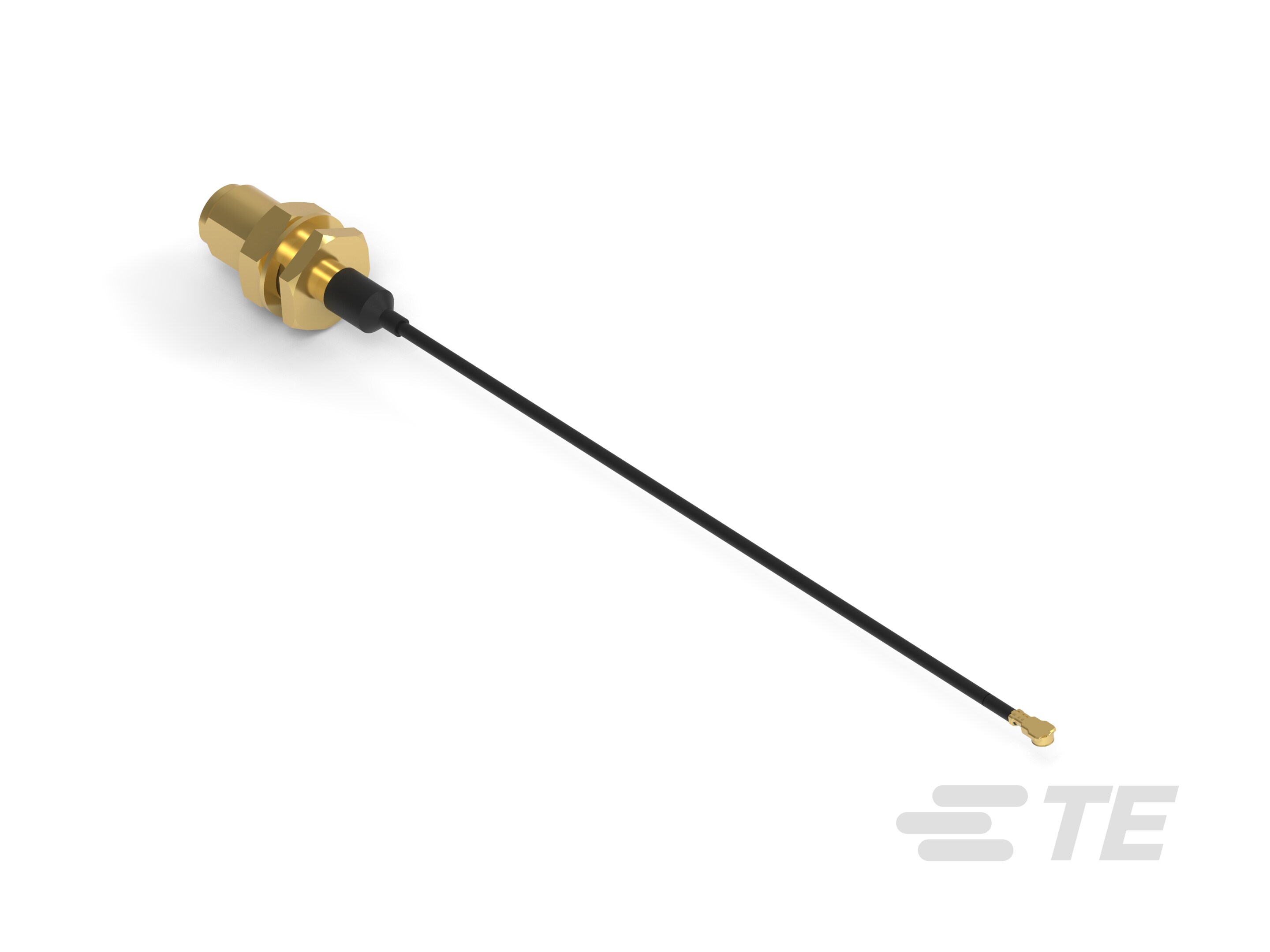

RP-SMA to UMCC Cable Assembly, .2 m [.66 ft], Black Cable, 0 – 9 GHz, 50 ohm, FEP Jacket, 32 AWG, 1.13 mm [.044 in] Diameter, RP SMA Jack End A
Technical Specifications
Parameters and characteristics for this part
| Specification | 2016695-4 |
|---|---|
| 1st Connector | RP-SMA Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Male |
| 2nd Connector | Right Angle, I-PEX MHF4 Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Outer Diameter | 1.13 mm |
| Cable Type | Coaxial Cable, OD Coaxial Cable, 1.13mm OD Coaxial Cable |
| Cable Type Size | 1.13 |
| Color | Black |
| Features | Shielded |
| Frequency - Max | 6000 MHz |
| Length | 7.874 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -45 °C |
| Overall Impedance | 50 Ohms |
| Style | RP-SMA to I-PEX MHF4 |
