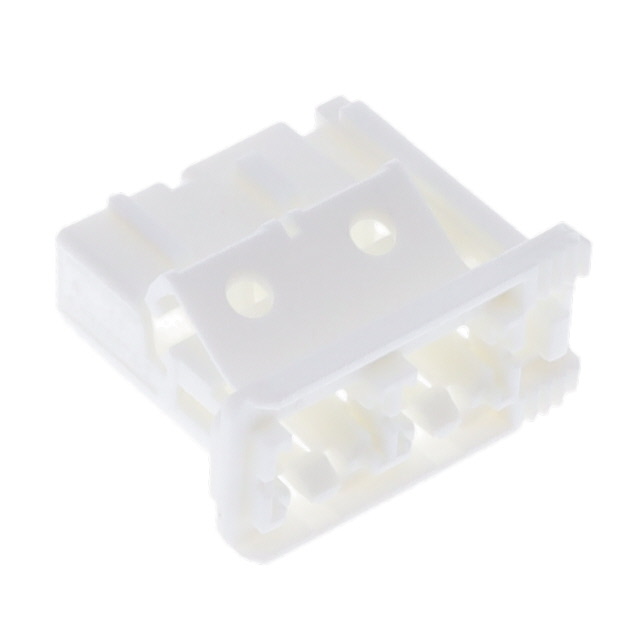

Specification	2305974-2

Color	White
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Operating Temperature (Max)	120 °C
Operating Temperature (Min)	-40 °C
Pitch	0.307 in

2305974 Series

Part	Note	Insulation Material	Number of Positions	Connector Type	Contact Type	Pitch	Contact Termination	Color	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)

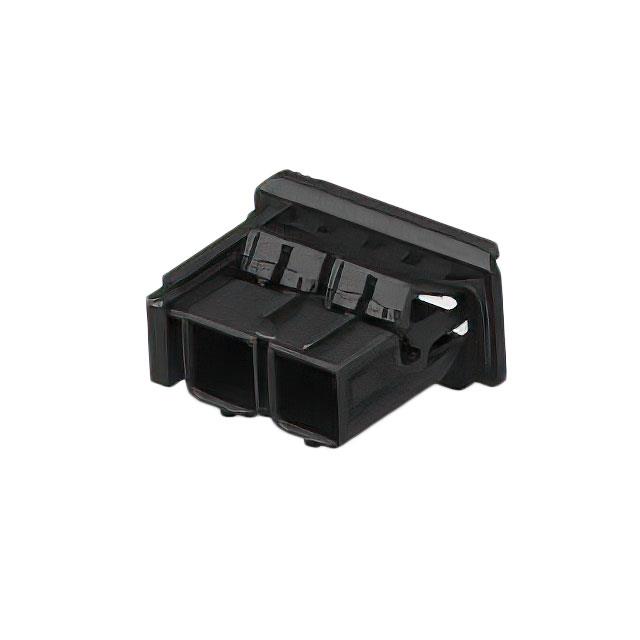

TE Connectivity AMP Connectors 2305974-1	Contacts Not Included	Glass Filled Polybutylene Terephthalate (PBT)	2	Receptacle	Female Socket	0.307 in	Crimp	Black	Free Hanging (In-Line)	120 °C	-40 °C
TE Connectivity AMP Connectors 2305974-2	Contacts Not Included	Glass Filled Polybutylene Terephthalate (PBT)	2	Receptacle	Female Socket	0.307 in	Crimp	White	Free Hanging (In-Line)	120 °C	-40 °C
TE Connectivity AMP Connectors 2305974-9	Contacts Not Included	Glass Filled Polybutylene Terephthalate (PBT)	2	Receptacle	Female Socket	0.307 in	Crimp	Blue	Free Hanging (In-Line)	120 °C	-40 °C
