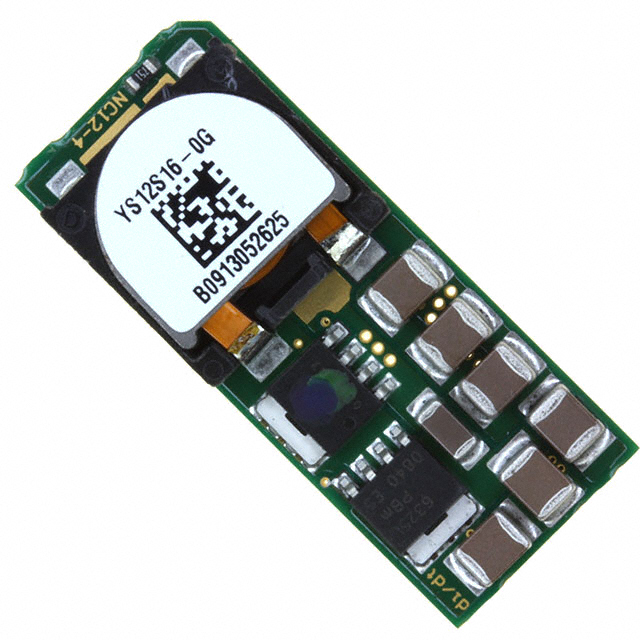

YS12S16-0G

Active

Bel Power Solutions

MODULE DC-DC 12VIN 1-OUT 0.7525V TO 5.5V 16A 88W 6-PIN SMD T/R

Search across all available documentation for this part.

Active

Bel Power Solutions

MODULE DC-DC 12VIN 1-OUT 0.7525V TO 5.5V 16A 88W 6-PIN SMD T/R

Technical Specifications

Parameters and characteristics for this part

MODULE DC-DC 12VIN 1-OUT 0.7525V TO 5.5V 16A 88W 6-PIN SMD T/R

Part	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Control Features	Applications	Mounting Type	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Current - Output (Max) [Max]	Power (Watts)	Number of Outputs	Efficiency	Features	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Type
Bel Power Solutions YS12S16-0G	9.6 V	14 V	Active High, Enable	ITE (Commercial)	Surface Mount	5.5 V	0.75 V	16 A	88 W	1	94.8 %	OCP, OTP, Remote On/Off, UVLO	1.3 "	0.31 in	0.53 in	33 mm	7.9 mm	13.5 mm	85 °C	-40 °C	6-SMD Module	Non-Isolated PoL Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.75 ~ 5.5V 16A 9.6V - 14V Input

Technical documentation and resources

No documents available
