3-826646-2

Active

TE Connectivity AMP Connectors

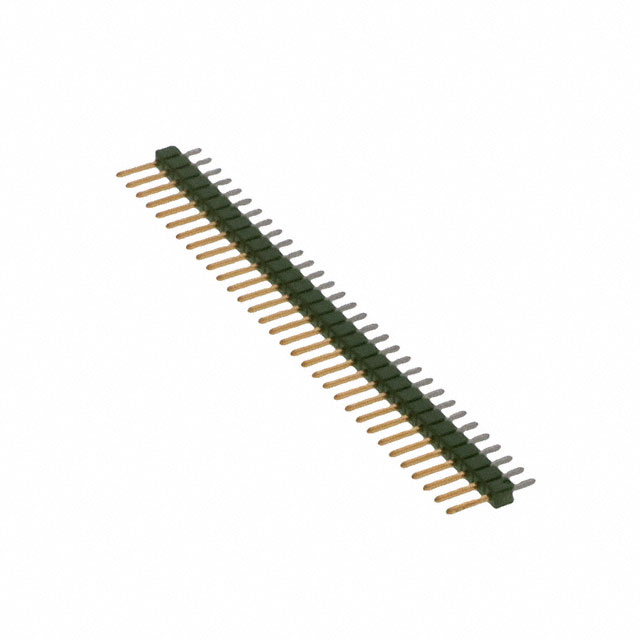

CONN HEADER VERT 32POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3-826646-2

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 32POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3-826646-2	826646 Series

Connector Type	Breakaway, Header	Breakaway, Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	0.099 µm	0.099 µm
Contact Finish Thickness - Mating	3.9 µin	3.9 µin
Contact Finish Thickness - Post	3 µm	3 µm
Contact Finish Thickness - Post	118.1 µin	118.1 µin
Contact Length - Mating	0.228 in	0.228 in
Contact Length - Mating	5.8 mm	5.8 mm
Contact Length - Post	3.2 mm	3.2 mm
Contact Length - Post [x]	0.126 in	0.126 in
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	5 A	5 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Green	Green
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	-	16
Number of Positions	-	2 - 26
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Overall Contact Length	0.465 in	0.465 in
Overall Contact Length	11.81 mm	11.81 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

826646 Series

CONN HEADER VERT 5POS 2.54MM

Part	Fastening Type	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Overall Contact Length	Overall Contact Length	Mounting Type	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Contact Type	Material Flammability Rating	Contact Shape	Contact Finish - Mating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Current Rating (Amps)	Insulation Material	Contact Length - Post	Contact Length - Post [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Style	Termination	Connector Type	Number of Rows	Number of Positions	Number of Positions
TE Connectivity AMP Connectors 826646-5	Push-Pull	Green	3 µm	118.1 µin	Unshrouded	0.465 in	11.81 mm	Through Hole	Tin	0.228 in	5.8 mm	Male Pin	UL94 V-0	Square	Gold	All	-65 ░C	105 ░C	Brass	5 A	Polybutylene Terephthalate (PBT)	3.2 mm	0.126 in	0.099 µm	3.9 µin	0.1 in	2.54 mm	Board to Board, Cable	Solder	Breakaway, Header	1
TE Connectivity AMP Connectors 1-826646-6	Push-Pull	Green	3 µm	118.1 µin	Unshrouded	0.465 in	11.81 mm	Through Hole	Tin	0.228 in	5.8 mm	Male Pin	UL94 V-0	Square	Gold	All	-65 ░C	105 ░C	Brass	5 A	Polybutylene Terephthalate (PBT)	3.2 mm	0.126 in	0.099 µm	3.9 µin	0.1 in	2.54 mm	Board to Board, Cable	Solder	Breakaway, Header	1	16
TE Connectivity AMP Connectors 2-826646-6	Push-Pull	Green	3 µm	118.1 µin	Unshrouded	0.465 in	11.81 mm	Through Hole	Tin	0.228 in	5.8 mm	Male Pin	UL94 V-0	Square	Gold	All	-65 ░C	105 ░C	Brass	5 A	Polybutylene Terephthalate (PBT)	3.2 mm	0.126 in	0.099 µm	3.9 µin	0.1 in	2.54 mm	Board to Board, Cable	Solder	Breakaway, Header	1		26
TE Connectivity AMP Connectors 3-826646-2	Push-Pull	Green	3 µm	118.1 µin	Unshrouded	0.465 in	11.81 mm	Through Hole	Tin	0.228 in	5.8 mm	Male Pin	UL94 V-0	Square	Gold	All	-65 ░C	105 ░C	Brass	5 A	Polybutylene Terephthalate (PBT)	3.2 mm	0.126 in	0.099 µm	3.9 µin	0.1 in	2.54 mm	Board to Board, Cable	Solder	Breakaway, Header	1
TE Connectivity AMP Connectors 1-826646-0	Push-Pull	Green	3 µm	118.1 µin	Unshrouded	0.465 in	11.81 mm	Through Hole	Tin	0.228 in	5.8 mm	Male Pin	UL94 V-0	Square	Gold	All	-65 ░C	105 ░C	Brass	5 A	Polybutylene Terephthalate (PBT)	3.2 mm	0.126 in	0.099 µm	3.9 µin	0.1 in	2.54 mm	Board to Board, Cable	Solder	Breakaway, Header	1		10
TE Connectivity AMP Connectors 826646-2	Push-Pull	Green	3 µm	118.1 µin	Unshrouded	0.465 in	11.81 mm	Through Hole	Tin	0.228 in	5.8 mm	Male Pin	UL94 V-0	Square	Gold	All	-65 ░C	105 ░C	Brass	5 A	Polybutylene Terephthalate (PBT)	3.2 mm	0.126 in	0.099 µm	3.9 µin	0.1 in	2.54 mm	Board to Board, Cable	Solder	Breakaway, Header	1		2
TE Connectivity AMP Connectors 826646-7	Push-Pull	Green	3 µm	118.1 µin	Unshrouded	0.465 in	11.81 mm	Through Hole	Tin	0.228 in	5.8 mm	Male Pin	UL94 V-0	Square	Gold	All	-65 ░C	105 ░C	Brass	5 A	Polybutylene Terephthalate (PBT)	3.2 mm	0.126 in	0.099 µm	3.9 µin	0.1 in	2.54 mm	Board to Board, Cable	Solder	Breakaway, Header	1		7

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.70
		10	$ 3.06
		100	$ 2.54
		500	$ 2.23

Description

General part information

826646 Series

Connector Header Through Hole 32 position 0.100" (2.54mm)
