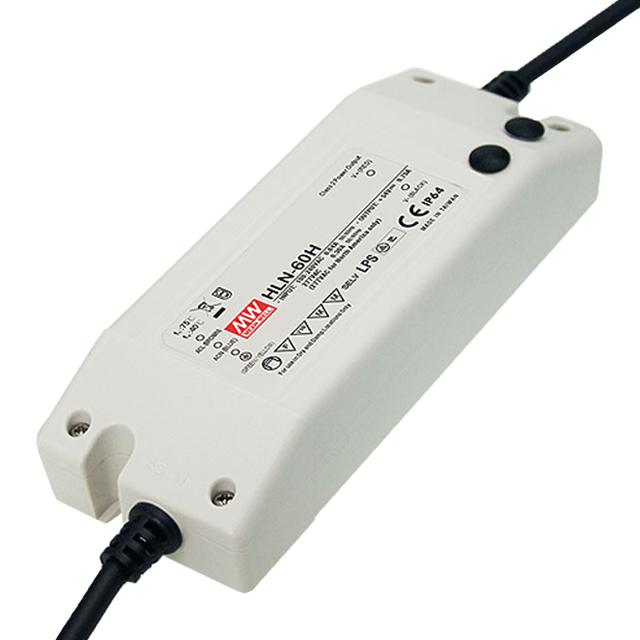

HLN-60H-20B

MEAN WELL USA Inc.

LED DRVR CC/CV AC/DC 20V 3A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HLN-60H-20B

MEAN WELL USA Inc.

LED DRVR CC/CV AC/DC 20V 3A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HLN-60H-20B

Approval Agency	CB, PSE, CE, TUV
Current - Output (Max) [Max]	3 A
Dimming	Analog, PWM
Efficiency	88.5 %
Features	OTP, SCP, OVP, OCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	60 W
Ratings	IP64
Size / Dimension [x]	161 mm
Size / Dimension [x]	6.34 "
Size / Dimension [y]	61.5 mm
Size / Dimension [y]	2.42 in
Size / Dimension [z]	1.38 in
Size / Dimension [z]	35 mm
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current, Voltage
Voltage - Input (Max) [Max]	305 VAC
Voltage - Input (Min) [Min]	90 VAC
Voltage - Isolation	3750 V
Voltage - Output	20 V

HLN-60H Series

Part	Efficiency	Power (Watts)	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Number of Outputs	Approval Agency	Mounting Type	Features	Topology	Voltage - Isolation	Voltage - Input (Min) [Min]	Type	Ratings	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Dimming	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output
MEAN WELL USA Inc. HLN-60H-20B	88.5 %	60 W	3 A	305 VAC	1	CB CE PSE TUV	Chassis Mount	OCP OTP OVP SCP	AC DC Converter	3750 V	90 VAC	Constant Current Voltage	IP64	Wire Leads	-40 °C	50 °C	Analog PWM	161 mm	61.5 mm	2.42 in	1.38 in	6.34 "	35 mm	20 V
MEAN WELL USA Inc. HLN-60H-24B	89 %	60 W	2.5 A	305 VAC	1	CB CE PSE TUV	Chassis Mount	OCP OTP OVP SCP	AC DC Converter	3750 V	90 VAC	Constant Current Voltage	IP64	Wire Leads	-40 °C	50 °C	Analog PWM	161 mm	61.5 mm	2.42 in	1.38 in	6.34 "	35 mm	24 V
MEAN WELL USA Inc. HLN-60H-54B	90.5 %	60 W	1.15 A	305 VAC	1		Chassis Mount	OCP OTP OVP SCP	AC DC Converter	3750 V	90 VAC	Constant Current Voltage	IP64	Wire Leads	-40 °C	50 °C	Analog PWM	161 mm	61.5 mm	2.42 in	1.38 in	6.34 "	35 mm	54 V
MEAN WELL USA Inc. HLN-60H-42B	90 %	60 W	1.45 A	305 VAC	1	CB CE PSE TUV	Chassis Mount	OCP OTP OVP SCP	AC DC Converter	3750 V	90 VAC	Constant Current Voltage	IP64	Wire Leads	-40 °C	50 °C	Analog PWM	161 mm	61.5 mm	2.42 in	1.38 in	6.34 "	35 mm	42 V
MEAN WELL USA Inc. HLN-60H-15B	87 %	60 W	4 A	305 VAC	1	CB CE PSE TUV	Chassis Mount	OCP OTP OVP SCP	AC DC Converter	3750 V	90 VAC	Constant Current Voltage	IP64	Wire Leads	-40 °C	50 °C	Analog PWM	161 mm	61.5 mm	2.42 in	1.38 in	6.34 "	35 mm	15 VDC
MEAN WELL USA Inc. HLN-60H-48A	90.5 %	60 W	1.3 A	305 VAC	1		Chassis Mount	OCP OTP OVP SCP	AC DC Converter	3750 V	90 VAC	Constant Current Voltage	IP64	Wire Leads	-40 °C	50 °C	PWM	161 mm	61.5 mm	2.42 in	1.38 in	6.34 "	35 mm	48 V
MEAN WELL USA Inc. HLN-60H-48B	90.5 %	60 W	1.3 A	305 VAC	1		Chassis Mount	OCP OTP OVP SCP	AC DC Converter	3750 V	90 VAC	Constant Current Voltage	IP64	Wire Leads	-40 °C	50 °C	Analog PWM	161 mm	61.5 mm	2.42 in	1.38 in	6.34 "	35 mm	48 V
MEAN WELL USA Inc. HLN-60H-42A	90 %	60 W	1.45 A	305 VAC	1	CB CE PSE TUV	Chassis Mount	OCP OTP OVP SCP	AC DC Converter	3750 V	90 VAC	Constant Current Voltage	IP64	Wire Leads	-40 °C	50 °C	PWM	161 mm	61.5 mm	2.42 in	1.38 in	6.34 "	35 mm	42 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	32	$ 45.72

Description

General part information

HLN-60H Series

3A 20V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
