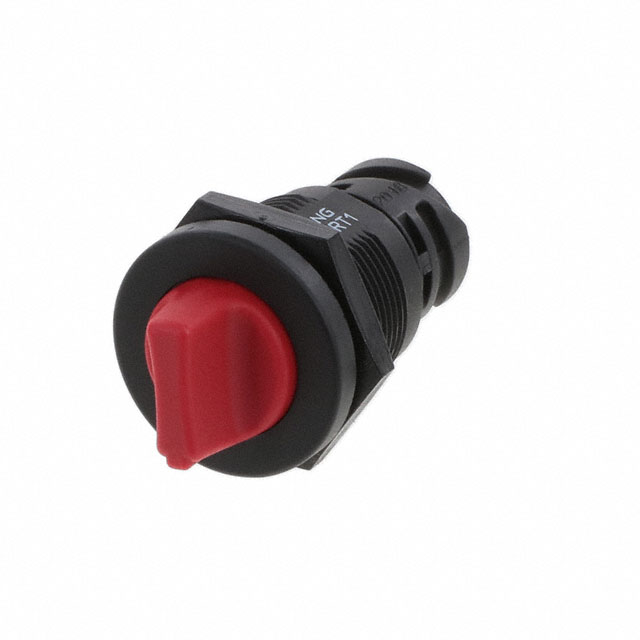

DS-221-RT1
ActiveTE Connectivity Raychem Cable Protection
SWITCH SELECTOR 2POS DPDT 5A 20V
Deep-Dive with AI
Search across all available documentation for this part.
DS-221-RT1
ActiveTE Connectivity Raychem Cable Protection
SWITCH SELECTOR 2POS DPDT 5A 20V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DS-221-RT1 |
|---|---|
| Circuit | DPDT |
| Current Rating (Amps) | 5 A |
| Illumination | Non-Illuminated |
| Ingress Protection | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
| Number of Positions | 2 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Panel Cutout Dimensions [diameter] | 30.5 mm |
| Switch Function | On-On |
| Termination Style | Connector |
| Type | Standard |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 32 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 54.70 | |
| 5 | $ 46.99 | |||
| 10 | $ 44.00 | |||
| 25 | $ 40.32 | |||
| 50 | $ 37.73 | |||
| 100 | $ 35.29 | |||
| 250 | $ 33.17 | |||
Description
General part information
DS-22 Series
Selector Switch 2 Position DPDT 5A (AC/DC) 20 V Panel Mount
Documents
Technical documentation and resources
No documents available
