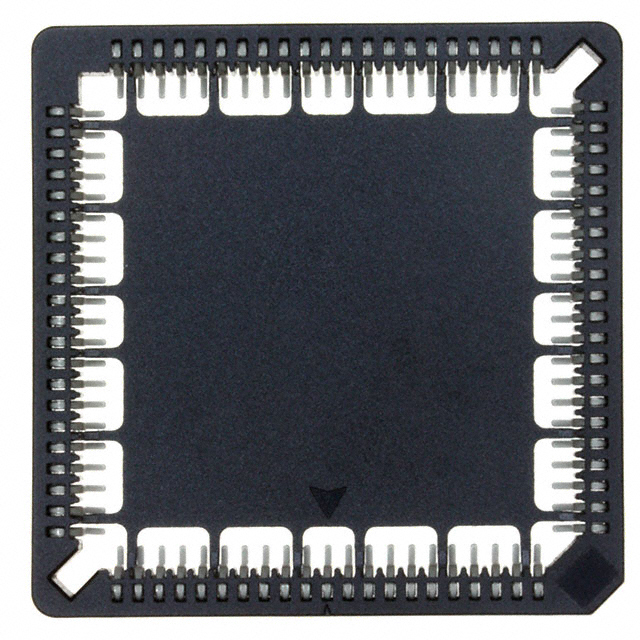

8484-21B1-RK-TP - 8484-21B1-RK-TP

8484-21B1-RK-TP

Active
3M (TC)

IC & COMPONENT SOCKET, 84 CONTACTS, PLCC SOCKET, 1.27 MM, 8400 SERIES, COPPER ALLOY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet8400 Series Spec+1
8484-21B1-RK-TP - 8484-21B1-RK-TP

8484-21B1-RK-TP

Active
3M (TC)

IC & COMPONENT SOCKET, 84 CONTACTS, PLCC SOCKET, 1.27 MM, 8400 SERIES, COPPER ALLOY

Deep-Dive with AI

DocumentsDatasheet8400 Series Spec+1

Technical Specifications

Parameters and characteristics for this part

Specification8484-21B1-RK-TP
Contact Finish - PostTin
Contact Finish Thickness - Post160 µin
Contact Finish Thickness - Post4.06 µm
Contact Material - MatingCopper Alloy
Contact Material - Post [custom]Copper Alloy
Current Rating (Amps)1 A
FeaturesClosed Frame
Housing MaterialPolybutylene Terephthalate (PBT), Glass Filled
Material Flammability RatingUL94 V-0
Mounting TypeSurface Mount
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
Pitch - Mating0.05 in
Pitch - Mating1.27 mm
Pitch - Post1.27 mm
Pitch - Post0.05 in
TerminationSolder
Termination Post Length [x]3.35 mm
Termination Post Length [x]0.132 in
TypePLCC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 3.16
16$ 2.87
32$ 2.72
64$ 2.65
112$ 2.53
256$ 2.21
512$ 2.15
1008$ 1.83
2512$ 1.71
NewarkEach 1000$ 2.09

Description

General part information

8484 Series

84 (4 x 21) Pos PLCC Socket Tin Surface Mount
