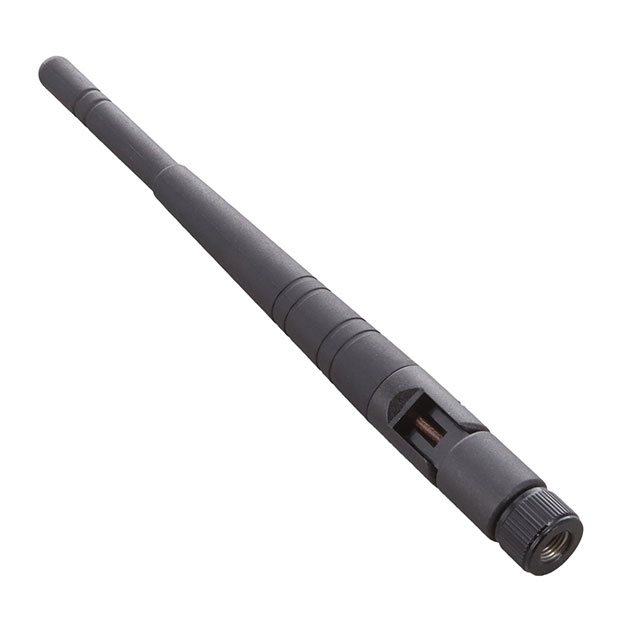

IN7-3RD-RSMA
ActiveTE Connectivity Raychem Cable Protection
RF ANT 700MHZ WHIP TILT RP-SMA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IN7-3RD-RSMA |
|---|---|
| Antenna Type | Tilt, Whip |
| Applications | WiMax™ |
| Frequency (Center/Band) | 700 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 806 MHz |
| Frequency Range [Min] | 698 MHz |
| Gain | 3 dBi |
| Height (Max) | 157.5 mm |
| Height (Max) | 6.201 in |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 10 W |
| RF Family/Standard | WiFi |
| Termination | RP-SMA Male |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
IN7-3RD Series
RF ANTENNA WiMax™ Whip, Tilt RP-SMA Male Connector Mount
