307-031-459-108

Active

EDAC Inc.

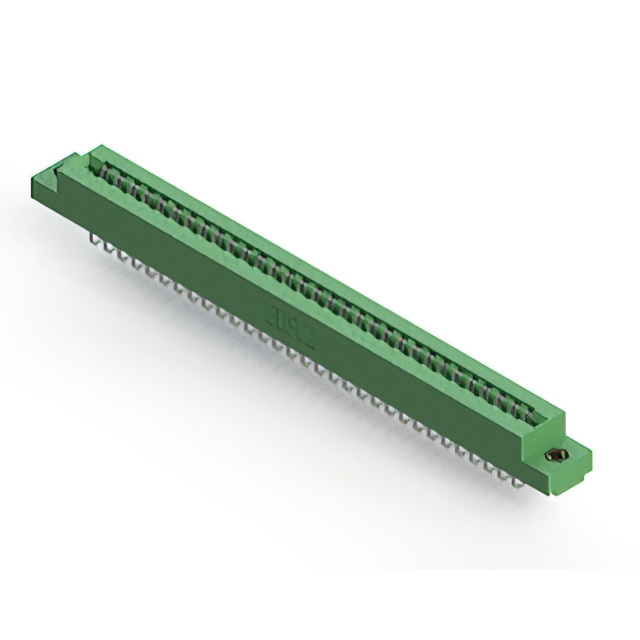

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 31 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

307-031-459-108

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 31 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	307-031-459-108

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	31
Number of Positions/Bay/Row [custom]	31
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

307-031 Series

...

Part	Mounting Type	Flange Feature	Read Out	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish	Number of Positions/Bay/Row [custom]	Card Type	Features	Color	Number of Positions	Termination	Contact Type	Termination Rows	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Pitch [x]	Pitch [x]	Gender	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Material - Insulation	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 307-031-553-168	Through Hole Right Angle	4-40 Flush Mount Threaded Insert Top Opening	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	31	Non Specified - Dual Edge	Card Guides	Green	62	Solder	Semi Bellows	1	-40 °C	105 ░C	2	0.156 in	3.96 mm	Female	10 Áin	0.25 Ám	Copper Alloy	Polyester Thermoplastic
EDAC Inc. 307-031-541-168	Through Hole	4-40 Flush Mount Threaded Insert Top Opening	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	31	Non Specified - Dual Edge	Card Guides	Green	62	Wire Wrap	Semi Bellows	1	-40 °C	105 ░C	2	0.156 in	3.96 mm	Female	10 Áin	0.25 Ám	Copper Alloy	Polyester Thermoplastic
EDAC Inc. 307-031-431-101	Through Hole		Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	31	Non Specified - Single Edge		Green	31	Solder	Semi Bellows	1	-40 °C	105 ░C	1	0.156 in	3.96 mm	Female			Copper Alloy	Polyester Thermoplastic
EDAC Inc. 307-031-405-104	Through Hole	Flush Mount Top Opening Unthreaded	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	31	Non Specified - Single Edge		Green	31	Solder Eyelet(s)	Semi Bellows	1	-40 °C	105 ░C	1	0.156 in	3.96 mm	Female			Copper Alloy	Polyester Thermoplastic	3.96 mm	0.156 in
EDAC Inc. 307-031-421-108	Through Hole	4-40 Flush Mount Threaded Insert Top Opening	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	31	Non Specified - Dual Edge		Green	62	Solder	Semi Bellows	1	-40 °C	105 ░C	2	0.156 in	3.96 mm	Female			Copper Alloy	Polyester Thermoplastic
EDAC Inc. 307-031-425-102	Through Hole	Flush Mount Top Opening Unthreaded	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	31	Non Specified - Single Edge		Green	31	Solder	Semi Bellows	1	-40 °C	105 ░C	1	0.156 in	3.96 mm	Female			Copper Alloy	Polyester Thermoplastic	3.25 mm	0.128 "
EDAC Inc. 307-031-421-112	Through Hole	Flush Mount Side Opening Unthreaded	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	31	Non Specified - Dual Edge		Green	62	Solder	Semi Bellows	1	-40 °C	105 ░C	2	0.156 in	3.96 mm	Female			Copper Alloy	Polyester Thermoplastic	3.25 mm	0.128 "
EDAC Inc. 307-031-401-103	Through Hole	Floating Bobbin Flush Mount	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	31	Non Specified - Dual Edge		Green	62	Solder Eyelet(s)	Semi Bellows	1	-40 °C	105 ░C	2	0.156 in	3.96 mm	Female			Copper Alloy	Polyester Thermoplastic	2.95 mm	0.116 in
EDAC Inc. 307-031-459-108	Through Hole Right Angle	4-40 Flush Mount Threaded Insert Top Opening	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	Tin	31	Non Specified - Single Edge		Green	31	Solder	Semi Bellows	1	-40 °C	105 ░C	1	0.156 in	3.96 mm	Female			Copper Alloy	Polyester Thermoplastic
EDAC Inc. 307-031-521-102	Through Hole	Flush Mount Top Opening Unthreaded	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	31	Non Specified - Dual Edge		Green	62	Solder	Semi Bellows	1	-40 °C	105 ░C	2	0.156 in	3.96 mm	Female	10 Áin	0.25 Ám	Copper Alloy	Polyester Thermoplastic	3.25 mm	0.128 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 20.01
Newark	Each	1	$ 23.25
		100	$ 14.58
		250	$ 12.95
		500	$ 11.54
		1000	$ 9.38

Description

General part information

307-031 Series

31 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Green
