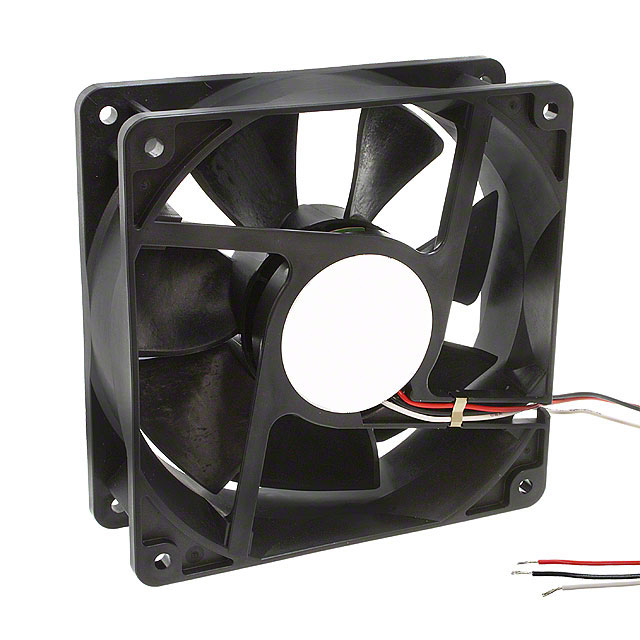

4715KL-05W-B39-E00

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 119X38.4MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFan Agency Approvals Datasheet +1

4715KL-05W-B39-E00

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 119X38.4MM 24VDC WIRE

Deep-Dive with AI

DocumentsFan Agency Approvals Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4715KL-05W-B39-E00

Air Flow	3.02 m³/min
Air Flow	108 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	0.31 A
Fan Type	Tubeaxial
Features	Locked Rotor Sensor
Lifetime @ Temp.	50000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	42.5 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	7.44 W
RPM	2950 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Static Pressure	67.3 Pa
Static Pressure	0.27 in H2O
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	27.6 VDC
Voltage Range [Min]	10 VDC
Weight	259.91 g
Weight	0.573 lb
Width [y]	38.4 mm

4715KL Series

Part	Weight	Weight	Lifetime @ Temp.	Features	Voltage Range [Max]	Voltage Range [Min]	Width [y]	Size / Dimension [y]	Size / Dimension [x]	Material - Blade	Material - Frame	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Static Pressure	Static Pressure	Termination	Power (Watts)	Bearing Type	Current Rating (Amps)	Voltage - Rated [custom]	RPM	Noise	Air Flow	Air Flow	Approval Agency	Fan Type	Voltage - Rated	Operating Temperature [Max]
NMB TECHNOLOGIES 4715KL-07W-B49-E50	259.91 g	0.573 lb	50000 Hrs	Speed Sensor (Tach)	55.2 VDC	25 VDC	38.4 mm	119 mm	119 mm	Plastic	Plastic	70 °C	70 °C	-10 °C	-10 °C	0.33 in H2O	82.2 Pa	3 Wire Leads	9.6 W	Ball	0.2 A	48 VDC	3200 RPM	46.5 dB	118 CFM	3.3 m³/min	CE CSA UL VDE	Tubeaxial
NMB TECHNOLOGIES 4715KL-04W-B20-E00	259.91 g	0.573 lb	50000 Hrs		13.8 VDC	6 VDC	38.4 mm	119 mm	119 mm	Plastic	Plastic	70 °C	70 °C	-10 °C	-10 °C	0.22 in H2O	54.8 Pa	2 Wire Leads	4.8 W	Ball	400 mA		2650 RPM	41 dB	97 CFM	2.72 mł/min	CE CSA UL VDE	Tubeaxial	12 VDC
NMB TECHNOLOGIES 4715KL-05T-B40-P00	259.91 g	0.573 lb	50000 Hrs		27.6 VDC	10 VDC	38.4 mm	119 mm	119 mm	Plastic	Plastic	70 °C	70 °C	-10 °C	-10 °C	0.33 in H2O	82.2 Pa	2 Terminals	8.4 W	Ball	0.35 A		3200 RPM	46.5 dB	118 CFM	3.3 m³/min	CE CSA UL VDE	Tubeaxial	24 VDC
NMB TECHNOLOGIES 4715KL-07W-B19-E00	259.91 g	0.573 lb	50000 Hrs	Locked Rotor Sensor	55.2 VDC	25 VDC	38.4 mm	119 mm	119 mm	Plastic	Plastic	70 °C	70 °C	-10 °C	-10 °C	0.17 in H2O	42.3 Pa	3 Wire Leads	3.84 W	Ball		48 VDC	2300 RPM	37 dB	83.6 CFM	2.34 mł/min	CE CSA UL VDE	Tubeaxial
NMB TECHNOLOGIES 4715KL-04W-B50-E00	259.91 g	0.573 lb	50000 Hrs		12.6 VDC	9.5 VDC	38.4 mm	119 mm	119 mm	Plastic	Plastic		40 °C	-10 °C	-10 °C	0.44 in H2O	109.6 Pa	2 Wire Leads	12 W	Ball			3600 RPM	50 dB(A)	129.9 CFM	3.64 m³/min	CE CSA UL VDE	Tubeaxial	12 VDC	40 °C
NMB TECHNOLOGIES 4715KL-05W-B39-E00	259.91 g	0.573 lb	50000 Hrs	Locked Rotor Sensor	27.6 VDC	10 VDC	38.4 mm	119 mm	119 mm	Plastic	Plastic	70 °C	70 °C	-10 °C	-10 °C	0.27 in H2O	67.3 Pa	3 Wire Leads	7.44 W	Ball	0.31 A		2950 RPM	42.5 dB	108 CFM	3.02 m³/min	CE CSA UL VDE	Tubeaxial	24 VDC
NMB TECHNOLOGIES 4715KL-07W-B19-E50	259.91 g	0.573 lb	50000 Hrs	Speed Sensor (Tach)	55.2 VDC	25 VDC	38.4 mm	119 mm	119 mm	Plastic	Plastic	70 °C	70 °C	-10 °C	-10 °C	0.17 in H2O	42.3 Pa	3 Wire Leads	3.84 W	Ball		48 VDC	2300 RPM	37 dB	83.6 CFM	2.34 mł/min	CE CSA UL VDE	Tubeaxial
NMB TECHNOLOGIES 4715KL-05W-B59-E00	259.91 g	0.573 lb	50000 Hrs	Locked Rotor Sensor	25 VDC	18 VDC	38.4 mm	119 mm	119 mm	Plastic	Plastic		40 °C	-10 °C	-10 °C	0.44 in H2O	109.6 Pa	3 Wire Leads	12 W	Ball	0.5 A		3600 RPM	50 dB(A)	130 CFM	3.64 m³/min	CE CSA UL VDE	Tubeaxial	24 VDC	40 °C
NMB TECHNOLOGIES 4715KL-04W-B49-E50	259.91 g	0.573 lb	50000 Hrs	Speed Sensor (Tach)	13.8 VDC	6 VDC	38.4 mm	119 mm	119 mm	Plastic	Plastic	70 °C	70 °C	-10 °C	-10 °C	0.33 in H2O	82.2 Pa	3 Wire Leads	8.4 W	Ball	0.7 A		3200 RPM	46.5 dB	118 CFM	3.3 m³/min	CE CSA UL VDE	Tubeaxial	12 VDC
NMB TECHNOLOGIES 4715KL-04W-B40-E00	259.91 g	0.573 lb	50000 Hrs		13.8 VDC	6 VDC	38.4 mm	119 mm	119 mm	Plastic	Plastic	70 °C	70 °C	-10 °C	-10 °C	0.33 in H2O	82.2 Pa	2 Wire Leads	8.4 W	Ball	0.7 A		3200 RPM	46.5 dB	118 CFM	3.3 m³/min	CE CSA UL VDE	Tubeaxial	12 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 17.25
		10	$ 15.38
		25	$ 14.69
		50	$ 14.19
		100	$ 13.71
		250	$ 13.10
		500	$ 12.65

Description

General part information

4715KL Series

Fan Tubeaxial 24VDC Square - 119mm L x 119mm H Ball 108.0 CFM (3.02mł/min) 3 Wire Leads
