PJ-009B
ActiveCUI Devices
CONN PWR JACK 2.5X5.5MM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PJ-009B
ActiveCUI Devices
CONN PWR JACK 2.5X5.5MM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PJ-009B |
|---|---|
| Actual Diameter [custom] | 2.5 mm |
| Actual Diameter [custom] | 0.098 in |
| Actual Diameter [custom] | 0.26 in |
| Actual Diameter [custom] | 6.6 mm |
| Body Color | Black |
| Connector Type | Jack |
| Contact Material | Copper Alloy, Brass |
| Contact Material - Plating | Tin |
| Current Rating (Amps) | 2.5 A |
| Gender | Male |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Industry Recognized Mating Diameter [diameter] | 5.5 mm, 2.5 mm |
| Industry Recognized Mating Diameter [diameter] | 0.098 ", 0.217 " |
| Internal Switch(s) | Single Switch, Normally Closed |
| Material Flammability Rating | UL94 V-0 |
| Mating Length/Depth | 0.374 in |
| Mating Length/Depth | 9.5 mm |
| Number of Positions/Contacts | 3 Conductors, 2 Conductors |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Unshielded |
| Termination | Solder Eyelet(s) |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.94 | |
| 10 | $ 0.80 | |||
| 25 | $ 0.76 | |||
| 50 | $ 0.75 | |||
| 100 | $ 0.72 | |||
| 250 | $ 0.65 | |||
| 500 | $ 0.59 | |||
| 1000 | $ 0.52 | |||
| 2500 | $ 0.47 | |||
Description
General part information
PJ-009 Series

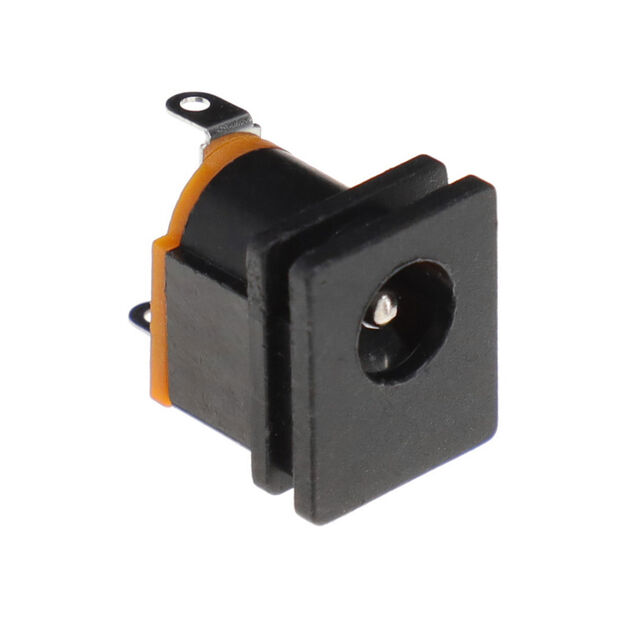

Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Panel Mount
