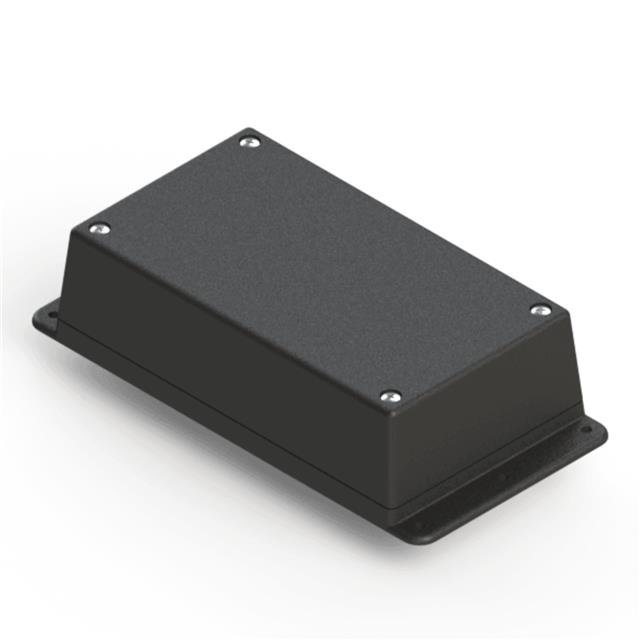

WM052R,BK

Active

Serpac

BOX ABS BLACK 5.62"L X 3.25"W

Deep-Dive with AI

Search across all available documentation for this part.

WM052R,BK

Active

Serpac

BOX ABS BLACK 5.62"L X 3.25"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WM052R,BK

Area (L x W)	118 cm²
Area (L x W)	18.3 in²
Color	Black
Container Type	Box
Design	Cover Included
Features	Mounting Flange, Wall Mount, PCB Supports, Front Access
Height [z]	40.64 mm
Height [z]	1.6 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	142.75 mm
Size / Dimension [x]	5.62 in
Size / Dimension [y]	3.25 "
Size / Dimension [y]	82.55 mm
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.244 lb
Weight	110.68 g

WM052 Series

Part	Color	Container Type	Material Flammability Rating	Features	Weight	Weight	Height [z]	Height [z]	Material	Area (L x W)	Area (L x W)	Ratings	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Thickness	Thickness	Design
Serpac WM052,BK	Black	Box	UL94 HB	Mounting Flange PCB Supports Wall Mount	0.244 lb	110.68 g	40.64 mm	1.6 in	Plastic ABS	18.3 in²	118 cm²	IP40 NEMA 1	3.25 "	142.75 mm	82.55 mm	5.62 in	2.54 mm	0.1 in	Cover Included
Serpac WM052R,BK	Black	Box	UL94 HB	Front Access Mounting Flange PCB Supports Wall Mount	0.244 lb	110.68 g	40.64 mm	1.6 in	Plastic ABS	18.3 in²	118 cm²	IP40 NEMA 1	3.25 "	142.75 mm	82.55 mm	5.62 in	2.54 mm	0.1 in	Cover Included
Serpac WM052RC,GY	Clear Cover/Door Gray	Box		Front Access Mounting Flange PCB Supports Wall Mount	0.244 lb	110.68 g	40.64 mm	1.6 in	Plastic Polycarbonate	18.3 in²	118 cm²	IP40 NEMA 1	3.25 "	142.75 mm	82.55 mm	5.62 in	2.54 mm	0.1 in	Cover Included
Serpac WM052RI,BK	Black	Box	UL94 HB	Front Access Mounting Flange PCB Supports Wall Mount	0.244 lb	110.68 g	40.64 mm	1.6 in	Plastic ABS	18.3 in²	118 cm²	IP40 NEMA 1	3.25 "	142.75 mm	82.55 mm	5.62 in	2.54 mm	0.1 in	Cover Included
Serpac WM052I,BK	Black	Box	UL94 HB	Mounting Flange PCB Supports Wall Mount	0.244 lb	110.68 g	40.64 mm	1.6 in	Plastic ABS	18.3 in²	118 cm²	IP40 NEMA 1	3.25 "	142.75 mm	82.55 mm	5.62 in	2.54 mm	0.1 in	Cover Included
Serpac WM052C,AL		Box		Mounting Flange PCB Supports Wall Mount	0.244 lb	110.68 g	40.64 mm	1.6 in	Plastic Polycarbonate	18.3 in²	118 cm²	IP40 NEMA 1	3.25 "	142.75 mm	82.55 mm	5.62 in	2.54 mm	0.1 in	Cover Included
Serpac WM052I,GY	Gray	Box	UL94 HB	Mounting Flange PCB Supports Wall Mount	0.244 lb	110.68 g	40.64 mm	1.6 in	Plastic ABS	18.3 in²	118 cm²	IP40 NEMA 1	3.25 "	142.75 mm	82.55 mm	5.62 in	2.54 mm	0.1 in	Cover Included
Serpac WM052I,AL	Almond	Box	UL94 HB	Mounting Flange PCB Supports Wall Mount	0.244 lb	110.68 g	40.64 mm	1.6 in	Plastic ABS	18.3 in²	118 cm²	IP40 NEMA 1	3.25 "	142.75 mm	82.55 mm	5.62 in	2.54 mm	0.1 in	Cover Included
Serpac WM052R,AL	Almond	Box	UL94 HB	Front Access Mounting Flange PCB Supports Wall Mount	0.244 lb	110.68 g	40.64 mm	1.6 in	Plastic ABS	18.3 in²	118 cm²	IP40 NEMA 1	3.25 "	142.75 mm	82.55 mm	5.62 in	2.54 mm	0.1 in	Cover Included
Serpac WM052RI,AL	Almond	Box	UL94 HB	Front Access Mounting Flange PCB Supports Wall Mount	0.244 lb	110.68 g	40.64 mm	1.6 in	Plastic ABS	18.3 in²	118 cm²	IP40 NEMA 1	3.25 "	142.75 mm	82.55 mm	5.62 in	2.54 mm	0.1 in	Cover Included

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.81
		10	$ 13.80
		100	$ 9.54
		1000	$ 6.53

Description

General part information

WM052 Series

Box Plastic, ABS Black Cover Included 5.620" L x 3.250" W (142.75mm x 82.55mm) X 1.600" (40.64mm)

Documents

Technical documentation and resources

No documents available
