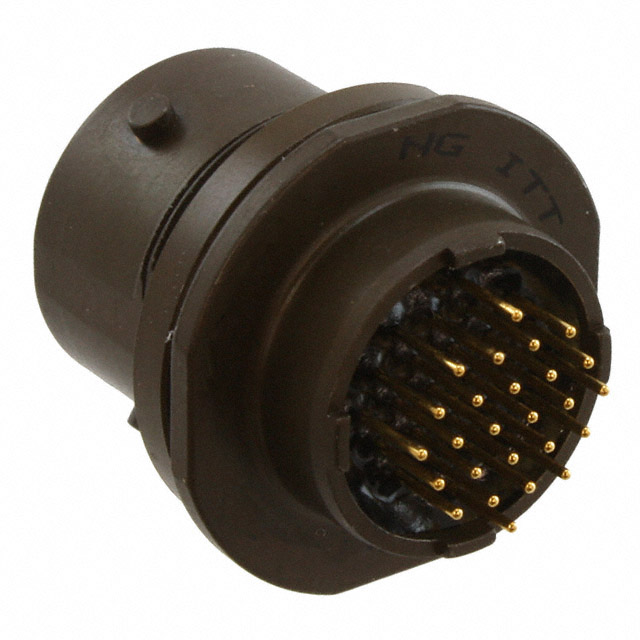

Specification	MKJ3C7W10-26BN

Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	50 µin
Current Rating	5 A
Fastening Type	Bayonet Lock
Mounting Feature	Bulkhead
Mounting Type	Panel Mount, Through Hole
Number of Positions	26
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C
Orientation	N (Normal)
Primary Material	Metal
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert (Maximum)	26
Shell Size - Insert (Minimum)	10
Shielding	Shielded
Termination	Solder
Voltage Rating	500 V

MKJ3C Series

Part	Color	Shell Finish	Number of Positions	Shell Material	Current Rating	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Operating Temperature (Max)	Operating Temperature (Min)	Orientation	Contact Finish - Mating	Voltage Rating	Primary Material	Mounting Type	Connector Type	Mounting Feature	Termination	Contact Finish Thickness - Mating	Fastening Type	Shielding
ITT Cannon, LLC MKJ3C7W6-7BY
ITT Cannon, LLC MKJ3C7W7-10BZ
ITT Cannon, LLC MKJ3C7W9-19BY
ITT Cannon, LLC MKJ3C7W10-26BX
ITT Cannon, LLC MKJ3C7F12-37DY
ITT Cannon, LLC MKJ3C7W10-26BN	Olive Drab	Olive Drab Cadmium	26	Aluminum Alloy	5 A	10	26	150 °C	-55 °C	N (Normal)	Gold	500 V	Metal	Panel Mount Through Hole	Male Pins Receptacle	Bulkhead	Solder	50 µin	Bayonet Lock	Shielded
ITT Cannon, LLC MKJ3C7F8-13BX
ITT Cannon, LLC MKJ3C7F10-26BZ
ITT Cannon, LLC MKJ3C7F8-13BY
ITT Cannon, LLC MKJ3C7F8-13BZ
