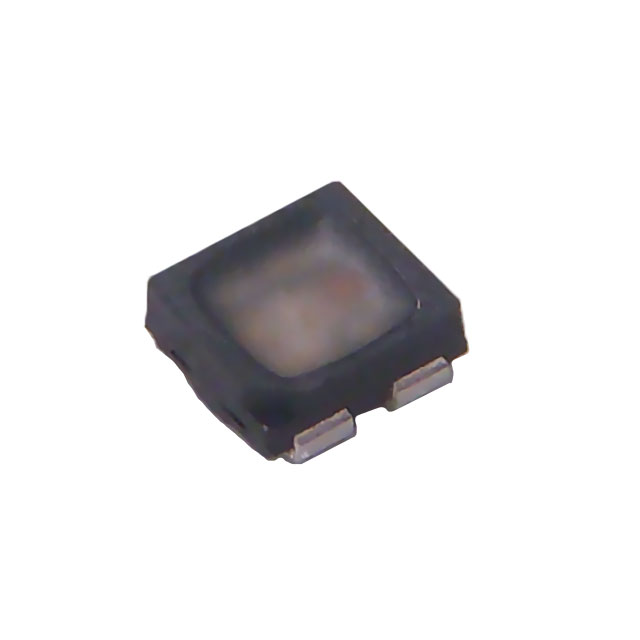

Specification	CLMVC-FKC-CG1J1561BB7D3S3

Color	Blue (RGB), Green, Red
Configuration	Common Anode
Current - Test (Blue)	10 mA
Current - Test (Green)	10 mA
Current - Test (Red)	15 mA
Current - Test Colors	Green, Red, Blue
Height (Max)	1 mm
Lens Size	1.5 mm
Lens Style	Flat Top, Square
Millicandela Rating (Blue)	151.5 mcd
Millicandela Rating (Green)	675 mcd
Millicandela Rating (Red)	420 mcd
Millicandela Rating Colors	Green, Red, Blue
Mounting Type	Surface Mount
Package / Case	4-SMD, J-Lead
Package Name	4-PLCC
Size / Dimension Length	2 mm
Size / Dimension Width	2 mm
Voltage - Forward (Vf) (Typ) (Blue)	3.1 V
Voltage - Forward (Vf) (Typ) (Green)	3.1 V
Voltage - Forward (Vf) (Typ) (Red)	2.1 V
Voltage - Forward (Vf) (Typ) Color	Blue, Green, Red
Wavelength - Dominant (Blue)	465 nm
Wavelength - Dominant (Green)	530 nm
Wavelength - Dominant (Red)	622 nm
Wavelength - Dominant Color	Red, Blue, Green

CLMVC Series

Part	Mounting Type	Millicandela Rating Colors	Millicandela Rating (Green)	Millicandela Rating (Red)	Millicandela Rating (Blue)	Wavelength - Dominant Color	Wavelength - Dominant (Green)	Wavelength - Dominant (Blue)	Wavelength - Dominant (Red)	Current - Test (Red)	Current - Test Colors	Current - Test (Green)	Current - Test (Blue)	Configuration	Voltage - Forward (Vf) (Typ) Color	Voltage - Forward (Vf) (Typ) (Green)	Voltage - Forward (Vf) (Typ) (Red)	Voltage - Forward (Vf) (Typ) (Blue)	Size / Dimension Length	Size / Dimension Width	Lens Size	Package / Case	Height (Max)	Lens Style	Package Name	Color	Lens Color	Lens Transparency
CreeLED, Inc. CLMVC-FKC-CGJJM569ABB7A343	Surface Mount	Blue Green Red	675 mcd	420 mcd	151.5 mcd	Blue Green Red	530 nm	465 nm	622 nm	15 mA	Blue Green Red	10 mA	10 mA	Common Anode	Blue Green Red	3.1 V	2.1 V	3.1 V	2 mm	2 mm	1.5 mm	4-SMD J-Lead	1 mm	Flat Top Square	4-PLCC	Blue (RGB) Green Red
CreeLED, Inc. CLMVC-FKA-CA1E1L81BB7C3C3	Surface Mount	Blue Green Red	458 mcd	365 mcd	92 mcd	Blue Green Red	530 nm	470 nm	622 nm	20 mA	Blue Green Red	10 mA	10 mA	Common Anode	Blue Green Red	3 V	2 V	3 V	2 mm	2 mm		4-SMD J-Lead	1 mm	Flat Top Square	4-PLCC	Blue (RGB) Green Red	Colorless	Clear
CreeLED, Inc. CLMVC-FKA-MF1G1L1BB7D3C3	Surface Mount	Blue Green Red	420 mcd	337 mcd	84 mcd	Blue Green Red	530 nm	470 nm	622 nm	20 mA	Blue Green Red	10 mA	10 mA	Common Anode	Blue Green Red	3 V	2 V	3 V	2 mm	2 mm		4-SMD J-Lead	1 mm	Flat Top Square	4-PLCC	Blue (RGB) Green Red	Colorless	Clear
CreeLED, Inc. CLMVC-FKC-CG1J1561BB7D3S3	Surface Mount	Blue Green Red	675 mcd	420 mcd	151.5 mcd	Blue Green Red	530 nm	465 nm	622 nm	15 mA	Blue Green Red	10 mA	10 mA	Common Anode	Blue Green Red	3.1 V	2.1 V	3.1 V	2 mm	2 mm	1.5 mm	4-SMD J-Lead	1 mm	Flat Top Square	4-PLCC	Blue (RGB) Green Red
CreeLED, Inc. CLMVC-FKC-CH1K1781BB7D3S3	Surface Mount	Blue Green Red	730 mcd	457.5 mcd	164 mcd	Blue Green Red	530 nm	465 nm	622 nm	15 mA	Blue Green Red	10 mA	10 mA	Common Anode	Blue Green Red	3.1 V	2.1 V	3.1 V	2 mm	2 mm	1.5 mm	4-SMD J-Lead	1 mm	Flat Top Square	4-PLCC	Blue (RGB) Green Red
CreeLED, Inc. CLMVC-FKA-CA1E1L81BB7C3C3	Surface Mount	Blue Green Red	458 mcd	365 mcd	92 mcd	Blue Green Red	530 nm	470 nm	622 nm	20 mA	Blue Green Red	10 mA	10 mA	Common Anode	Blue Green Red	3 V	2 V	3 V	2 mm	2 mm		4-SMD J-Lead	1 mm	Flat Top Square	4-PLCC	Blue (RGB) Green Red	Colorless	Clear
CreeLED, Inc. CLMVC-FKA-CLBDGL7LBB79353	Surface Mount	Blue Green Red	420 mcd	337 mcd	98 mcd	Blue Green Red	530 nm	470 nm	622 nm	20 mA	Blue Green Red	10 mA	10 mA	Common Anode	Blue Green Red	3 V	2 V	3 V	2 mm	2 mm		4-SMD J-Lead	1 mm	Flat Top Square	4-PLCC	Blue (RGB) Green Red	Colorless	Clear
CreeLED, Inc. CLMVC-FKC-CG1J1561BB7D3S3	Surface Mount	Blue Green Red	675 mcd	420 mcd	151.5 mcd	Blue Green Red	530 nm	465 nm	622 nm	15 mA	Blue Green Red	10 mA	10 mA	Common Anode	Blue Green Red	3.1 V	2.1 V	3.1 V	2 mm	2 mm	1.5 mm	4-SMD J-Lead	1 mm	Flat Top Square	4-PLCC	Blue (RGB) Green Red
