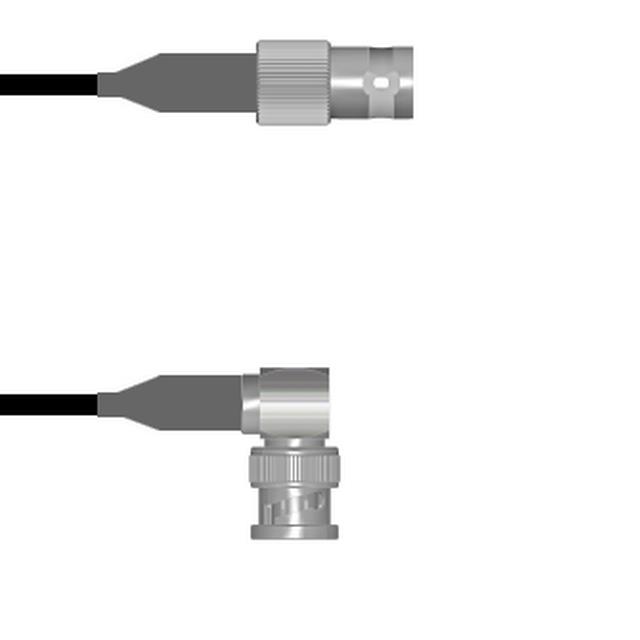

Specification	Q-0C00G001A.25M

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	BNC Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG, 59
Color	Black
Features	Shielded
Frequency - Max	4 GHz
Length	9.843 in
Overall Impedance	75 Ohms
Style	BNC

Q-0C00G0 Series

Part	2nd Connector Mounting Type	Style	Length	Color	1st Connector	1st Contact Gender	Frequency - Max	Features	2nd Connector	Overall Impedance	2nd Contact Gender	1st Connector Mounting Type	Cable Type	Length (ft)
McGill Microwave Systems Q-0C00G001A.25M	Free Hanging (In-Line)	BNC	9.843 in	Black	BNC Jack	Female	4 GHz	Shielded	BNC Plug Right Angle	75 Ohms	Male	Free Hanging (In-Line)	59 RG
McGill Microwave Systems Q-0C00G001A002M	Free Hanging (In-Line)	BNC		Black	BNC Jack	Female	4 GHz	Shielded	BNC Plug Right Angle	75 Ohms	Male	Free Hanging (In-Line)	59 RG	6.6 ft
McGill Microwave Systems Q-0C00G001A036i	Free Hanging (In-Line)	BNC	36 in	Black	BNC Jack	Female	4 GHz	Shielded	BNC Plug Right Angle	75 Ohms	Male	Free Hanging (In-Line)	59 RG
McGill Microwave Systems Q-0C00G001A0.5M	Free Hanging (In-Line)	BNC	19.69 in	Black	BNC Jack	Female	4 GHz	Shielded	BNC Plug Right Angle	75 Ohms	Male	Free Hanging (In-Line)	59 RG
McGill Microwave Systems Q-0C00G001A003M	Free Hanging (In-Line)	BNC	118.1 in	Black	BNC Jack	Female	4 GHz	Shielded	BNC Plug Right Angle	75 Ohms	Male	Free Hanging (In-Line)	59 RG
McGill Microwave Systems Q-0C00G001A060i	Free Hanging (In-Line)	BNC	1524 mm	Black	BNC Jack	Female	4 GHz	Shielded	BNC Plug Right Angle	75 Ohms	Male	Free Hanging (In-Line)	59 RG	5 ft
McGill Microwave Systems Q-0C00G001A018i	Free Hanging (In-Line)	BNC	18 in	Black	BNC Jack	Female	4 GHz	Shielded	BNC Plug Right Angle	75 Ohms	Male	Free Hanging (In-Line)	59 RG
McGill Microwave Systems Q-0C00G001A001M	Free Hanging (In-Line)	BNC	39.4 in	Black	BNC Jack	Female	4 GHz	Shielded	BNC Plug Right Angle	75 Ohms	Male	Free Hanging (In-Line)	59 RG
McGill Microwave Systems Q-0C00G001A.75M	Free Hanging (In-Line)	BNC	29.53 in	Black	BNC Jack	Female	4 GHz	Shielded	BNC Plug Right Angle	75 Ohms	Male	Free Hanging (In-Line)	59 RG
McGill Microwave Systems Q-0C00G001A006i	Free Hanging (In-Line)	BNC	0.5 ft	Black	BNC Jack	Female	4 GHz	Shielded	BNC Plug Right Angle	75 Ohms	Male	Free Hanging (In-Line)	59 RG
