2324104-1

Active

TE Connectivity AMP Connectors

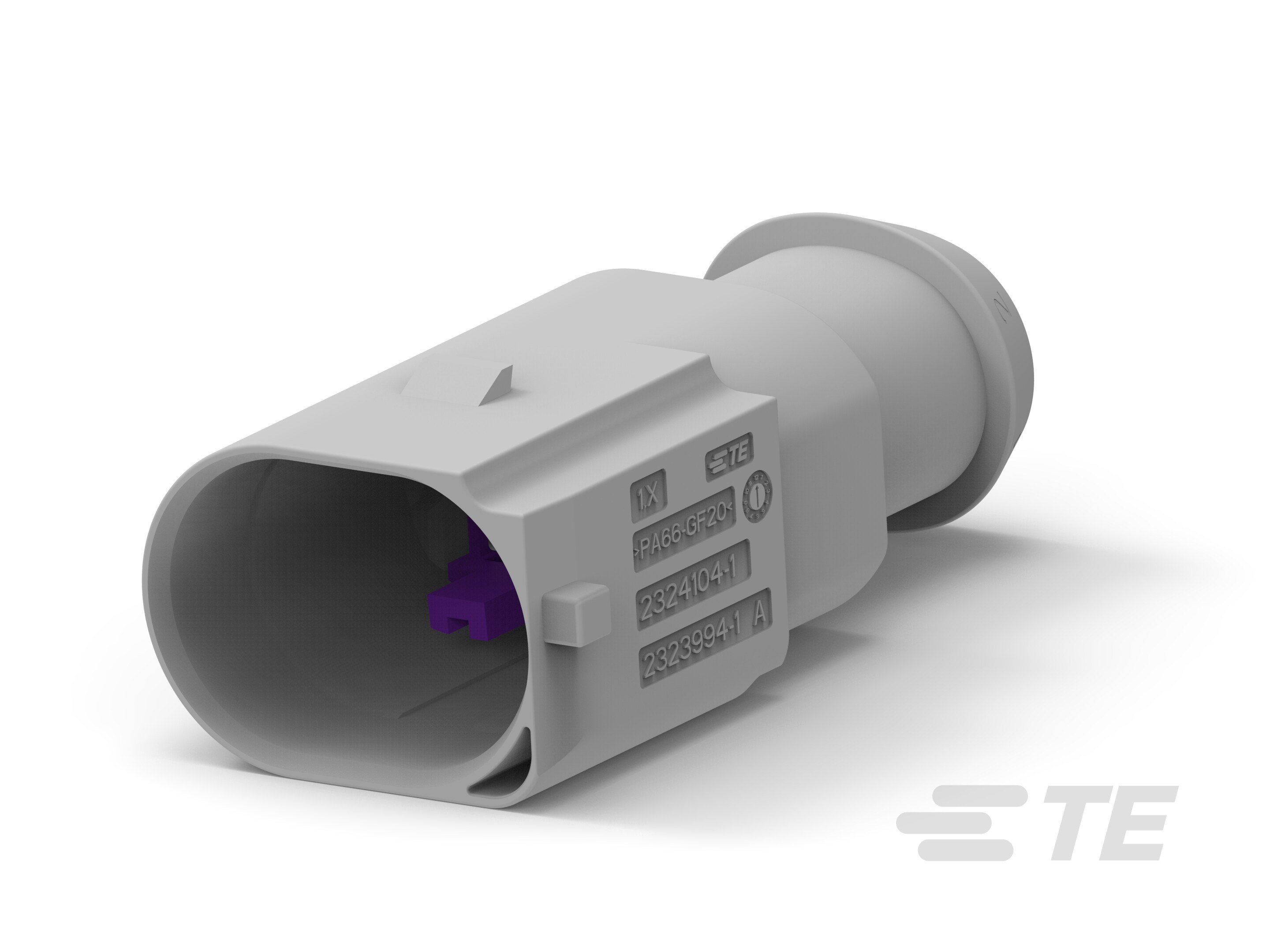

6 POSITIONS E.G.R. WIRE TO WIRE HSG ASSY

Find alt

Alpha

2324104-1

Active

TE Connectivity AMP Connectors

6 POSITIONS E.G.R. WIRE TO WIRE HSG ASSY

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

AMP MCP Connector System Series

6 Position Housing, Housing for Male Terminals, Wire-to-Wire, 4 mm [.157 in] Centerline, Sealable, Gray, Wire & Cable, Power, AMP MCP Connector System

Technical Specifications

Parameters and characteristics for this part

Specification	2324104-1

Color	Gray
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Locking Ramp
Features	Terminal Position Lock (TPA)
Insulation Material	Nylon, Glass Filled, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch	0.157 in
Row Spacing	0.157 in

AMP MCP Connector System Series

...
