12 POS FEMALE CONNECTOR ASS'Y

284853-1

Active

TE Connectivity AMP Connectors

12 POS FEMALE CONNECTOR ASS'Y

Description Specifications Series Pricing CAD Documents

Description

General part information

AMP MCP Connector System Series

12 Position Housing, Housing for Female Terminals, Wire-to-Wire, 4.2 mm [.165 in] Centerline, Black, Wire & Cable, Power, Hybrid

Technical Specifications

Parameters and characteristics for this part

Specification	284853-1

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Nylon 6/6, Polyamide (PA66), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-25 °C
Pitch	0.165 in
Row Spacing	0.217 in

AMP MCP Connector System Series

...

Part	Fastening Type	Insulation Color	Termination	Insulation Material	Connector Type	Row Spacing - Mating	Contact Shape	Contact Material	Contact Type	Contact Finish - Mating	Mounting Type	Insulation Height	Shrouding	Pitch - Mating	Contact Length - Mating	Voltage Rating	Operating Temperature (Min)	Operating Temperature (Max)	Style	Number of Rows	Number of Positions Loaded	Contact Finish - Post	Material Flammability Rating	Number of Positions	Color	Pitch	Contact Termination	Row Spacing	Tool Type	For Use With/Related Products	Features	Contact Length - Post	Applications	Accessory Type	Note

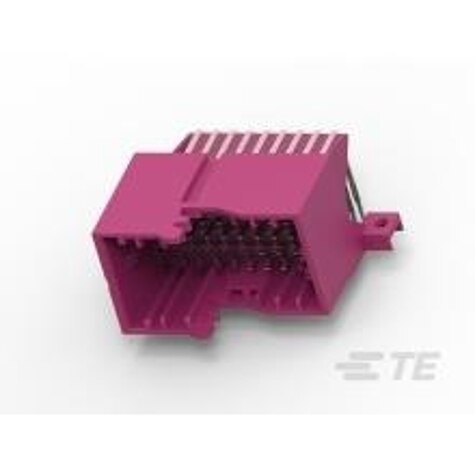

TE Connectivity AMP Connectors 1-2236715-2	Push-Pull	Brown Purple	Solder	Polybutylene Terephthalate (PBT)	Header	0.157 in	Square	Copper Alloy	Male Pin	Tin	Right Angle Through Hole	1.112 in	Shrouded - 4 Wall	0.157 in	0.268 in	36 VAC	-40 °C	140 °C	Board Cable/Wire	4	All	Tin	UL94 V-0	36
TE Connectivity AMP Connectors 1-1718492-2				Glass Filled Polybutylene Terephthalate (PBT)	Plug				Tab		Panel Mount						-40 °C	120 °C		4				36	Purple	0.157 in	Crimp	0.165 in
TE Connectivity AMP Connectors 1718488-1	Locking Ramp			Glass Filled Polybutylene Terephthalate (PBT)	Receptacle				Female Socket		Free Hanging (In-Line)						-40 °C	120 °C		1				7	Natural	0.197 in	Crimp

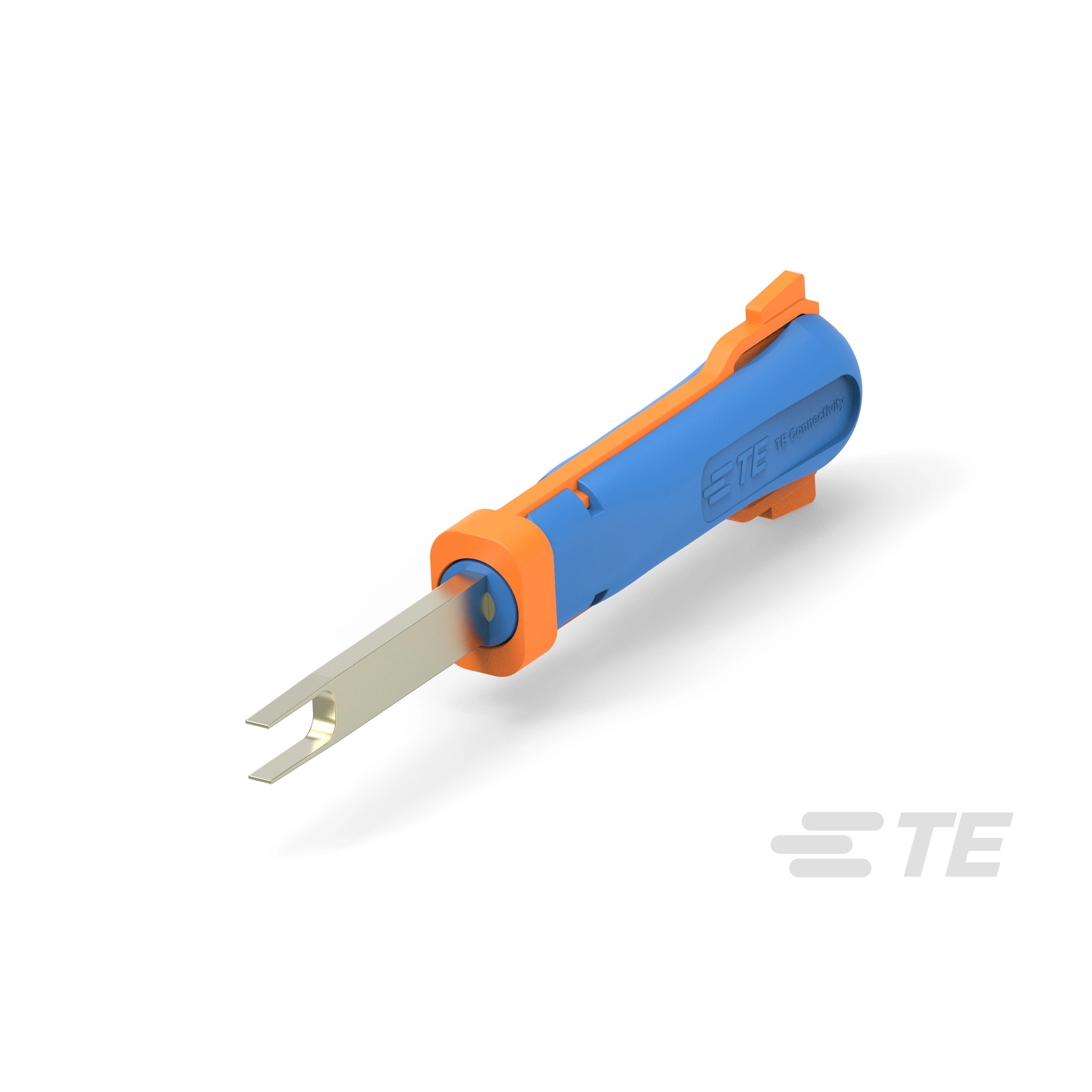

TE Connectivity AMP Connectors 8-1579028-2																													Extraction Tool	Rectangular Contacts

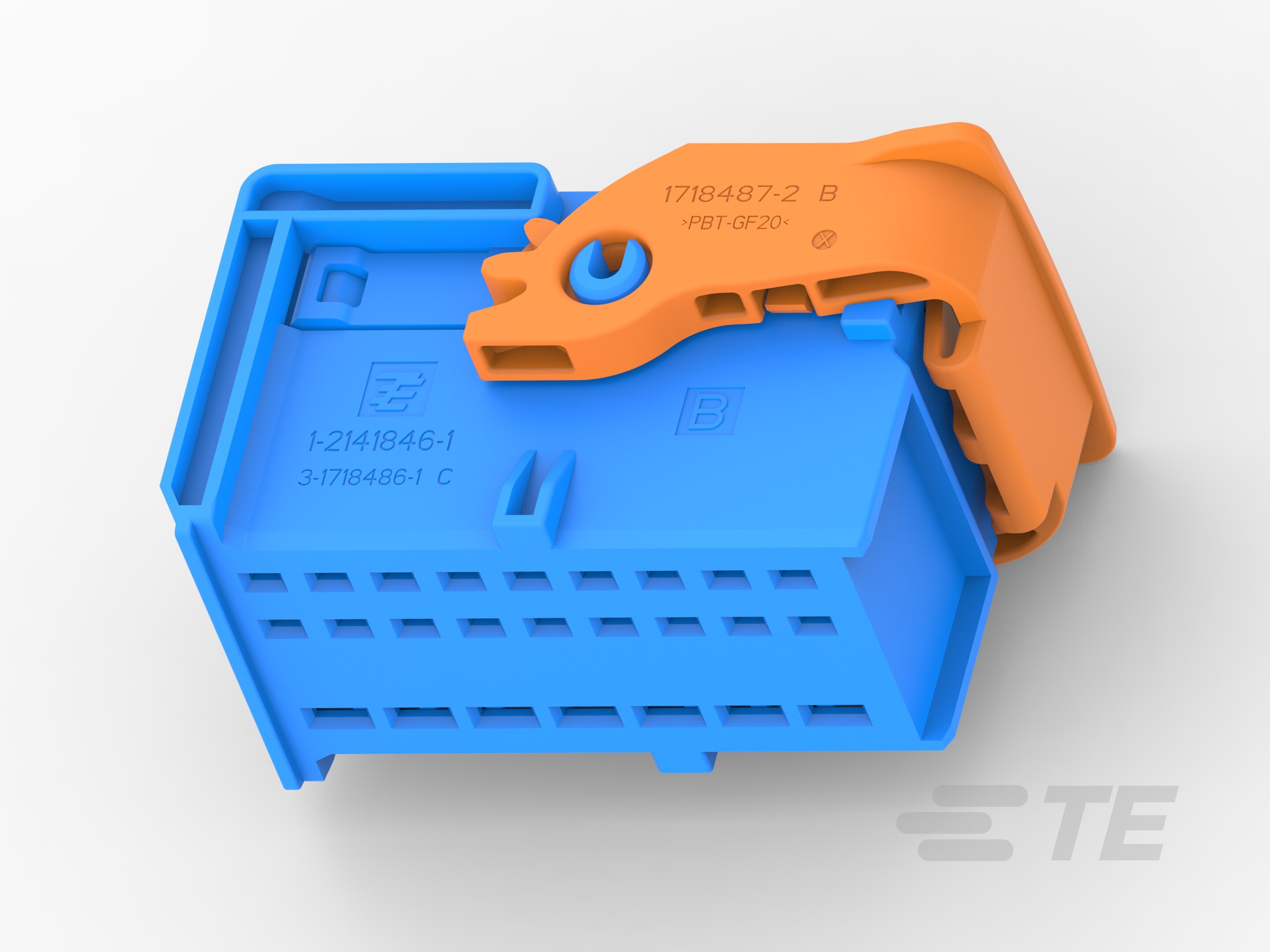

TE Connectivity AMP Connectors 1-2141846-3	Lever Lock			Glass Filled Polybutylene Terephthalate (PBT)	Receptacle				Female Socket		Free Hanging (In-Line)						-40 °C	120 °C		3				25	Blue		Crimp
TE Connectivity AMP Connectors 9-966140-5	Latch Holder	Black	Solder	Glass Filled Nylon 6/6 Polyamide (PA66)	Header	0.217 in	Rectangular	Copper Alloy	Tab	Tin	Right Angle Through Hole	1.012 in	Shrouded - 4 Wall	0.197 in		24 V	-40 °C	100 °C	Board Board or Cable	3	All		UL94 HB	6							Mounting Flange	0.118 in	Automotive General Purpose
TE Connectivity AMP Connectors 1-1718485-2																								36						MCP Series				Carrier
TE Connectivity AMP Connectors 936103-3																								2						MCP Series				Retainer
TE Connectivity AMP Connectors 284853-1				Glass Filled Nylon 6/6 Polyamide (PA66)	Receptacle				Female Socket		Free Hanging (In-Line)						-25 °C	105 °C		2				12	Black	0.165 in	Crimp	0.217 in							Contacts Not Included
TE Connectivity AMP Connectors 936294-2	Locking Ramp			Polybutylene Terephthalate (PBT)	Receptacle				Tab		Free Hanging (In-Line)									2				6	Black		Crimp
