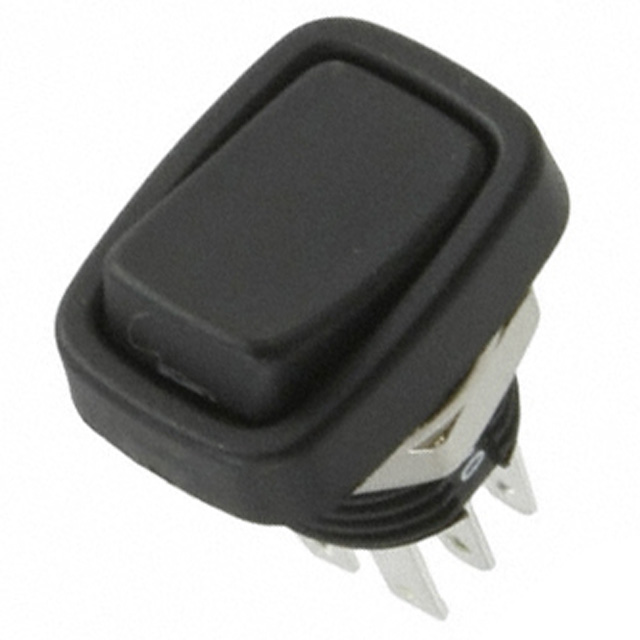

Specification	GRB213B03BB

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Circuit	DPDT
Color - Actuator/Cap	Black
Current Rating	6 A
Mechanical Life (Cycles)	100000 Cycles
Mounting Type	Threaded Body with Nut, Panel Mount
Panel Cutout Diameter	12.2 mm
Panel Cutout Shape	Circular
Quick Connect Size (0.110")	0.11 in
Switch Function	On-On
Termination Style	Quick Connect
Voltage Rating - AC	125 V

GRB213B Series

Part	Mechanical Life (Cycles)	Circuit	Switch Function	Voltage Rating - AC	Actuator Type	Mounting Type	Current Rating	Color - Actuator/Cap	Actuator Marking	Quick Connect Size (0.110")	Termination Style	Panel Cutout Diameter	Panel Cutout Shape
CW Industries GRB213B03BB	100000 Cycles	DPDT	On-On	125 V	Concave (Curved)	Panel Mount Threaded Body with Nut	6 A	Black	No Marking	0.11 in	Quick Connect	12.2 mm	Circular
