GF3500LV-00-240-50CC

Active

Bergquist

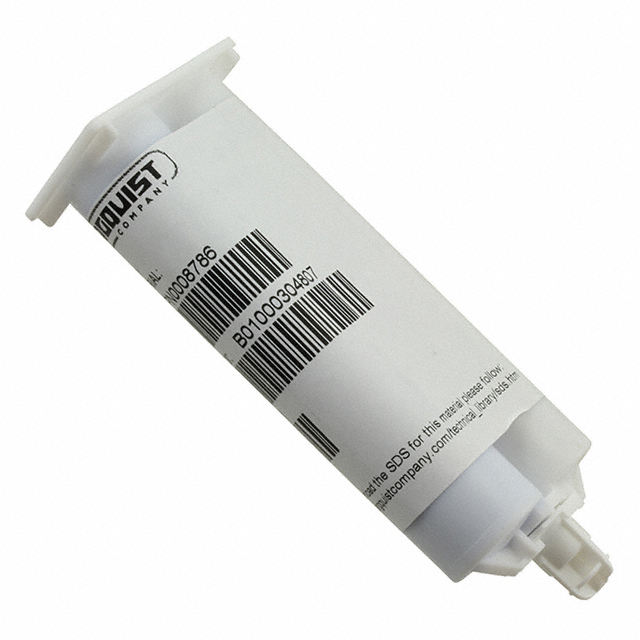

GAP FILLER 3500LV 50CC CARTRIDGE

Search across all available documentation for this part.

Active

Bergquist

GAP FILLER 3500LV 50CC CARTRIDGE

Technical Specifications

Parameters and characteristics for this part

Specification	GF3500LV-00-240-50CC

Color	Blue
Features	Low Outgassing
Material Flammability Rating	UL94 V-0
Shelf Life	5 Months
Shelf Life Start	Date of Manufacture
Size / Dimension	50cc Cartridge
Storage/Refrigeration Temperature	25 °C
Storage/Refrigeration Temperature	77 °F
Thermal Conductivity	3.5 W/m-K
Type	Liquid Gap Filler, 2 Part
Usable Temperature Range [Max]	200 °C
Usable Temperature Range [Max]	200 °C
Usable Temperature Range [Min]	-76 °F
Usable Temperature Range [Min]	-60 °C

GAP FILLER 3500LV 50CC CARTRIDGE

Part	Size / Dimension	Usable Temperature Range [Max]	Usable Temperature Range [Min]	Usable Temperature Range [Min]	Usable Temperature Range [Max]	Features	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Type	Color	Thermal Conductivity	Shelf Life Start	Material Flammability Rating	Shelf Life
Bergquist GF3500LV-00-240-50CC	50cc Cartridge	200 °C	-76 °F	-60 °C	200 °C	Low Outgassing	25 °C	77 °F	Liquid Gap Filler, 2 Part	Blue	3.5 W/m-K	Date of Manufacture	UL94 V-0	5 Months

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Thermal Liquid Gap Filler, 2 Part 50cc Cartridge
