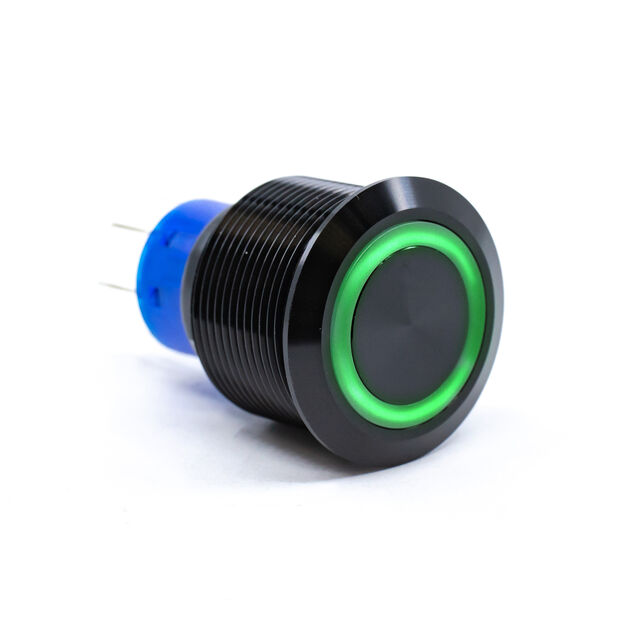

Specification	ULV7F2G11331

Actuator Type	Round, Flush, Button
Circuit	DPDT
Color	Green
Color - Actuator/Cap	Black
Current Rating	3 A
Electrical Life (Cycles)	50000
Illumination Type	LED
Illumination Voltage (Nominal)	3 VDC
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mechanical Life (Cycles)	1000000 Cycles
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	-20 °C
Panel Cutout Diameter	22 mm
Panel Cutout Shape	Circular
Quick Connect Size (0.110")	0.11 in
Switch Function	On-On
Termination Style	Quick Connect, Solder
Type	Illuminated, Anti-Vandal
Voltage Rating - AC	125 V

ULV7 Series

Part	Switch Function	Color - Actuator/Cap	Operating Temperature (Min)	Operating Temperature (Max)	Termination Style	Voltage Rating - AC	Panel Cutout Diameter	Panel Cutout Shape	Type	Mounting Type	Ingress Protection Description	Ingress Protection IP Rating	Illumination Voltage (Nominal)	Current Rating	Actuator Type	Circuit	Illumination Type	Color	Actuator Marking	Quick Connect Size (0.110")	Mechanical Life (Cycles)	Electrical Life (Cycles)
E-Switch ULV7FPB11345	On-Mom	Black	-20 °C	55 °C	Wire Leads with Connector	125 V	22.2 mm	Circular	Anti-Vandal Illuminated	Front Panel Mount	Dust Tight Waterproof	IP67	24 V	3 A	Button Flush Round	SPDT	LED	Blue
E-Switch ULV7F2H11341	On-Mom	Black	-20 °C	55 °C	Quick Connect Solder	250 V	22.2 mm	Circular	Anti-Vandal Illuminated	Front Panel Mount	Dust Tight Waterproof	IP67	3 VDC	3 A	Button Flush Round	DPDT	LED	Blue	No Marking	0.11 in	1000000 Cycles	50000
E-Switch ULV7F2BSS351	On-Mom	Silver	-20 °C	55 °C	Quick Connect Solder	125 V	22 mm	Circular	Anti-Vandal Illuminated	Front Panel Mount	Dust Tight Waterproof	IP67	3 VDC	3 A	Button Flush Round	SPDT	LED	Yellow		0.11 in	500000 Cycles	50000
E-Switch ULV7F2G11344	On-On	Black	-20 °C	55 °C	Quick Connect Solder	125 V	22.2 mm	Circular	Anti-Vandal Illuminated	Front Panel Mount	Dust Tight Waterproof	IP67	12 V	3 A	Button Flush Round	DPDT	LED	Blue		0.11 in
E-Switch ULV7FWGSS355	On-On	Silver	-20 °C	55 °C	Wire Leads	125 V	22.2 mm	Circular	Anti-Vandal Illuminated	Front Panel Mount	Dust Tight Waterproof	IP67	24 V	3 A	Button Flush Round	DPDT	LED	Yellow
E-Switch ULV7F2G11341	On-On	Black	-20 °C	55 °C	Quick Connect Solder	250 V	22.2 mm	Circular	Anti-Vandal Illuminated	Front Panel Mount	Dust Tight Waterproof	IP67	3 VDC	3 A	Button Flush Round	DPDT	LED	Blue	No Marking	0.11 in	500000 Cycles	50000
E-Switch ULV7F2G11331	On-On	Black	-20 °C	55 °C	Quick Connect Solder	125 V	22 mm	Circular	Anti-Vandal Illuminated	Front Panel Mount	Dust Tight Waterproof	IP67	3 VDC	3 A	Button Flush Round	DPDT	LED	Green		0.11 in	1000000 Cycles	50000
E-Switch ULV7F2HSLL16L21	On-Mom	Silver	-20 °C	55 °C	Quick Connect Solder	125 V	22 mm	Circular	Anti-Vandal Illuminated	Front Panel Mount	Dust Tight Waterproof	IP67	110 VAC	3 A	Button Flush Round	DPDT	LED	Red	No Marking	0.11 in	1000000 Cycles	50000
E-Switch ULV7F2HSLL37L22	On-Mom	Silver	-20 °C	55 °C	Quick Connect Solder	125 V	22 mm	Circular	Anti-Vandal Illuminated	Front Panel Mount	Dust Tight Waterproof	IP67	220 VDC	3 A	Button Flush Round	DPDT	LED	Green	No Marking	0.11 in	1000000 Cycles	50000
E-Switch ULV7F2GSS341	On-On	Silver	-20 °C	55 °C	Quick Connect Solder	250 V	22.2 mm	Circular	Anti-Vandal Illuminated	Front Panel Mount	Dust Tight Waterproof	IP67	3 VDC	3 A	Button Flush Round	DPDT	LED	Blue	No Marking	0.11 in	500000 Cycles	50000
