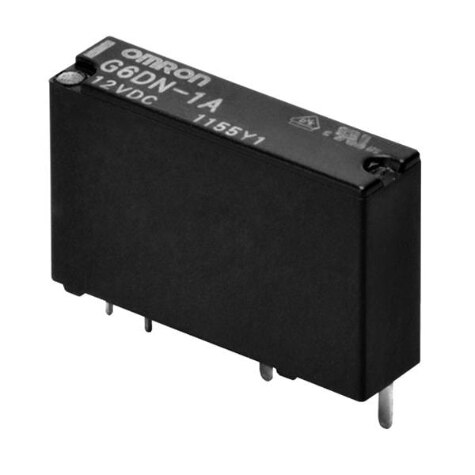

Specification	G6DN-1A-SL DC24

Approval Agency	cURus, TUV, VDE
Coil Current	4.6 mA
Coil Insulation	Class B
Coil Resistance	5.2 kOhms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPST-NO
Contact Material	Silver Alloy
Contact Rating (Current)	5 A
Form A Count	1
Load - Max Switching (Apparent Power)	1385 VA
Load - Max Switching (Real Power)	625 W
Mounting Type	Through Hole
Must Operate Voltage	16.8 VDC
Must Release Voltage	1.2 V
Operate Time	10 ms
Operating Temperature (Max)	90 °C
Operating Temperature (Min)	-40 °C
Relay Type	General Purpose
Release Time	5 ms
Seal Rating	Fully, Sealed
Switching Voltage AC (Max)	277 VAC
Switching Voltage DC (Max)	125 VDC
Termination Style	PC Pin

G6DN-1A Series

General Purpose Relays Slim PCB Power Relay SPST 5A 50Kops

Part	Form A Count	Contact Form	Relay Type	Load - Max Switching (Apparent Power)	Load - Max Switching (Real Power)	Release Time	Contact Material	Operate Time	Switching Voltage DC (Max)	Switching Voltage AC (Max)	Termination Style	Approval Agency	Seal Rating	Mounting Type	Must Release Voltage	Coil Type	Coil Current	Coil Insulation	Operating Temperature (Max)	Operating Temperature (Min)	Must Operate Voltage	Contact Rating (Current)	Coil Voltage	Coil Resistance
Omron Electronics Inc-EMC Div G6DN-1A-SL DC5	1	SPST-NO	General Purpose	1385 VA	625 W	5 ms	Silver Alloy	10 ms	125 VDC	277 VAC	PC Pin	cURus TUV VDE	Fully Sealed	Through Hole	0.25 VDC	Non Latching	22 mA	Class B	90 °C	-40 °C	3.5 VDC	5 A	5 V	227 Ohms
Omron Electronics Inc-EMC Div G6DN-1A DC4.5	1	SPST-NO	General Purpose	1385 VA	625 W	5 ms	Silver Alloy	10 ms	125 VDC	277 VAC	PC Pin	cURus TUV VDE	Fully Sealed	Through Hole	0.225 VDC	Non Latching	24.4 mA	Class B	90 °C	-40 °C	3.15 VDC	5 A	4.5 VDC	184 Ohms
Omron Electronics Inc-EMC Div G6DN-1A DC5	1	SPST-NO	General Purpose	1385 VA	625 W	5 ms	Silver Alloy	10 ms	125 VDC	277 VAC	PC Pin	cURus TUV VDE	Fully Sealed	Through Hole	0.25 VDC	Non Latching	22 mA	Class B	90 °C	-40 °C	3.5 VDC	5 A	5 V	227 Ohms
Omron Electronics Inc-EMC Div G6DN-1A-L DC12	1	SPST-NO	General Purpose	1385 VA	625 W	5 ms	Silver Alloy	10 ms	125 VDC	277 VAC	PC Pin	cURus TUV VDE	Fully Sealed	Through Hole	0.6 VAC	Non Latching	0.015 A	Class B	90 °C	-40 °C	8.4 VAC	5 A	12 VAC	800 Ohms
Omron Electronics Inc-EMC Div G6DN-1A-SL DC24	1	SPST-NO	General Purpose	1385 VA	625 W	5 ms	Silver Alloy	10 ms	125 VDC	277 VAC	PC Pin	cURus TUV VDE	Fully Sealed	Through Hole	1.2 V	Non Latching	4.6 mA	Class B	90 °C	-40 °C	16.8 VDC	5 A	24 VDC	5.2 kOhms
Omron Electronics Inc-EMC Div G6DN-1A-ASI DC24
Omron Electronics Inc-EMC Div G6DN-1A DC24	1	SPST-NO	General Purpose	1385 VA	625 W	5 ms	Silver Alloy	10 ms	125 VDC	277 VAC	PC Pin	cURus TUV VDE	Fully Sealed	Through Hole	1.2 V	Non Latching	4.6 mA	Class B	90 °C	-40 °C	16.8 VDC	5 A	24 VDC	5.2 kOhms
Omron Electronics Inc-EMC Div G6DN-1A DC12	1	SPST-NO	General Purpose	1385 VA	625 W	5 ms	Silver Alloy	10 ms	125 VDC	277 VAC	PC Pin	cURus TUV VDE	Fully Sealed	Through Hole	0.6 VAC	Non Latching	9.2 mA	Class B	90 °C	-40 °C	8.4 VAC	5 A	12 VAC	1.31 kOhms
Omron Electronics Inc-EMC Div G6DN-1A-SL DC12	1	SPST-NO	General Purpose	1385 VA	625 W	5 ms	Silver Alloy	10 ms	125 VDC	277 VAC	PC Pin	cURus TUV VDE	Fully Sealed	Through Hole	0.6 VAC	Non Latching	9.2 mA	Class B	90 °C	-40 °C	8.4 VAC	5 A	12 VAC	1.31 kOhms
Omron Electronics Inc-EMC Div G6DN-1A ASI DC12
