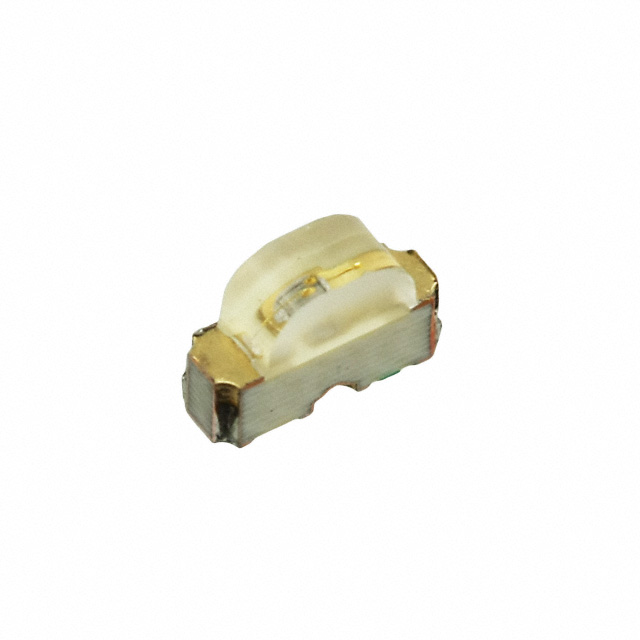

Specification	APBVA3010EYC

Color	Red, Yellow
Configuration	Common Anode
Current - Test	20 mA
Current - Test (Red)	20 mA
Current - Test Colors	Red, Yellow
Height (Max)	1 mm
Lens Color	Colorless
Lens Length	2 mm
Lens Style	Domed Top, Rectangle
Lens Transparency	Clear
Lens Width	1 mm
Millicandela Rating (Red)	15 mcd
Millicandela Rating (Yellow)	6 mcd
Millicandela Rating Colors	Yellow, Red
Mounting Type	Right Angle, Surface Mount
Package / Case	No Lead, 3-SMD
Package Name	Chip LED
Size / Dimension Length	3 mm
Size / Dimension Width	2 mm
Viewing Angle	140 °
Voltage - Forward (Vf) (Typ) (Value 1)	2 V
Voltage - Forward (Vf) (Typ) (Value 2)	2.1 V
Wavelength - Dominant (Red)	625 nm
Wavelength - Dominant Color	Yellow, Red
Wavelength - Peak (Red)	627 nm
Wavelength - Peak (Yellow)	590 nm
Wavelength - Peak Colors	Red, Yellow

APBVA3010 Series

Part	Package / Case	Lens Width	Lens Length	Wavelength - Peak Colors	Wavelength - Peak (Red)	Wavelength - Peak (Yellow)	Package Name	Configuration	Millicandela Rating Colors	Millicandela Rating (Red)	Millicandela Rating (Yellow)	Color	Voltage - Forward (Vf) (Typ) (Value 2)	Voltage - Forward (Vf) (Typ) (Value 1)	Lens Style	Mounting Type	Lens Color	Viewing Angle	Height (Max)	Wavelength - Dominant Color	Wavelength - Dominant (Red)	Current - Test (Red)	Current - Test Colors	Current - Test	Size / Dimension Width	Size / Dimension Length	Lens Transparency	Wavelength - Peak (Green)	Wavelength - Dominant (Green)	Current - Test (Green)	Voltage - Forward (Vf) (Typ) (Red)	Voltage - Forward (Vf) (Typ) Color	Voltage - Forward (Vf) (Typ) (Green)	Millicandela Rating (Green)	Wavelength - Dominant (Yellow)	Wavelength - Dominant (Primary)	Wavelength - Dominant (Secondary)	Wavelength - Dominant	Voltage - Forward (Vf) (Typ) (Yellow)
Kingbright APBVA3010EYC	3-SMD No Lead	1 mm	2 mm	Red Yellow	627 nm	590 nm	Chip LED	Common Anode	Red Yellow	15 mcd	6 mcd	Red Yellow	2.1 V	2 V	Domed Top Rectangle	Right Angle Surface Mount	Colorless	140 °	1 mm	Red Yellow	625 nm	20 mA	Red Yellow	20 mA	2 mm	3 mm	Clear
Kingbright APBVA3010SURKCGKC	3-SMD No Lead	1 mm	2 mm	Green Red	650 nm		Chip LED	Common Anode	Green Red	200 mcd		Green Red			Domed Top Rectangle	Right Angle Surface Mount	Colorless	140 °	1 mm	Green Red	630 nm	20 mA	Green Red		2 mm	3 mm	Clear	574 nm	570 nm	20 mA	1.95 V	Green Red	2.1 V	50 mcd
Kingbright APBVA3010YSGC	3-SMD No Lead	1 mm	2 mm	Green Yellow		590 nm	Chip LED	Common Anode	Green Yellow		6 mcd	Green Yellow	2.1 V	2.2 V	Domed Top Rectangle	Right Angle Surface Mount	Colorless	140 °	1 mm	Green Yellow			Green Yellow	20 mA	2 mm	3 mm	Clear	565 nm	568 nm	20 mA		Green Yellow		15 mcd	588 nm	568 nm	588 nm
Kingbright APBVA3010SYKCGKC	3-SMD No Lead	1 mm	2 mm	Green Yellow		590 nm	Chip LED	Common Anode	Green Yellow		150 mcd	Green Yellow	2 V	2.1 V	Domed Top Rectangle	Right Angle Surface Mount	Colorless	140 °	1 mm	Green Yellow			Green Yellow	20 mA	2 mm	3 mm	Clear	574 nm	570 nm	20 mA		Green Yellow	2.1 V	50 mcd	590 nm	570 nm	590 nm	570nm Green 590nm Yellow	2 V
