1-968322-1

Active

TE Connectivity AMP Connectors

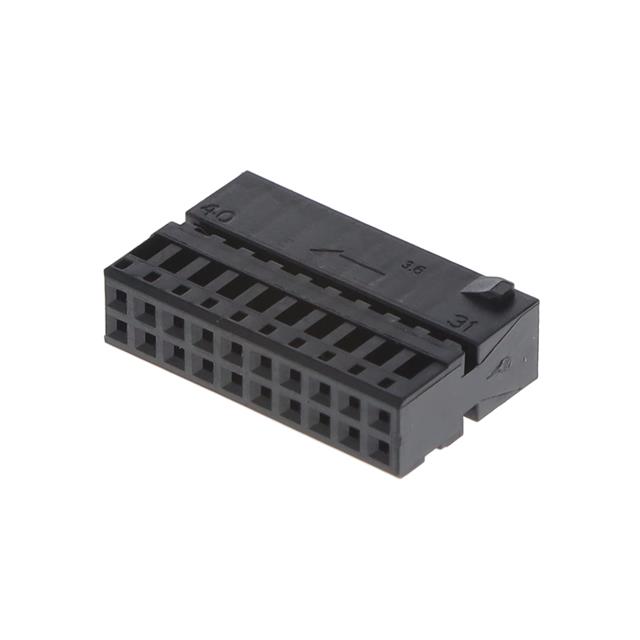

CONN RCPT HSG 20POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 20POS 2.54MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-968322-1	968322 Series

Color	Black	Black, Gray
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	20	20
Number of Rows	2	2
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Row Spacing	2.54 mm	2.54 mm
Row Spacing [x]	0.1 in	0.1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

CONN RCPT HSG 20POS 2.54MM

Part	Number of Rows	Contact Termination	Contact Type	Insulation Material	Pitch [x]	Pitch [x]	Mounting Type	Connector Type	Color	Note	Row Spacing [x]	Row Spacing	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity AMP Connectors 1-968322-1	2	Crimp	Female Socket	Polybutylene Terephthalate (PBT), Glass Filled	2.54 mm	0.1 in	Free Hanging (In-Line)	Receptacle	Black	Contacts Not Included	0.1 in	2.54 mm	20	-40 °C	120 °C
TE Connectivity AMP Connectors 2-968322-1	2	Crimp	Female Socket	Polybutylene Terephthalate (PBT), Glass Filled	2.54 mm	0.1 in	Free Hanging (In-Line)	Receptacle	Gray	Contacts Not Included	0.1 in	2.54 mm	20	-40 °C	120 °C

General part information

20 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)

Technical documentation and resources

No documents available
