VSC8662XIC-03
Active2 PORT GBE CU/FIBER PHY (IND. TEMP)
Deep-Dive with AI
Search across all available documentation for this part.
VSC8662XIC-03
Active2 PORT GBE CU/FIBER PHY (IND. TEMP)
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VSC8662XIC-03 |
|---|---|
| Function | Ethernet |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |

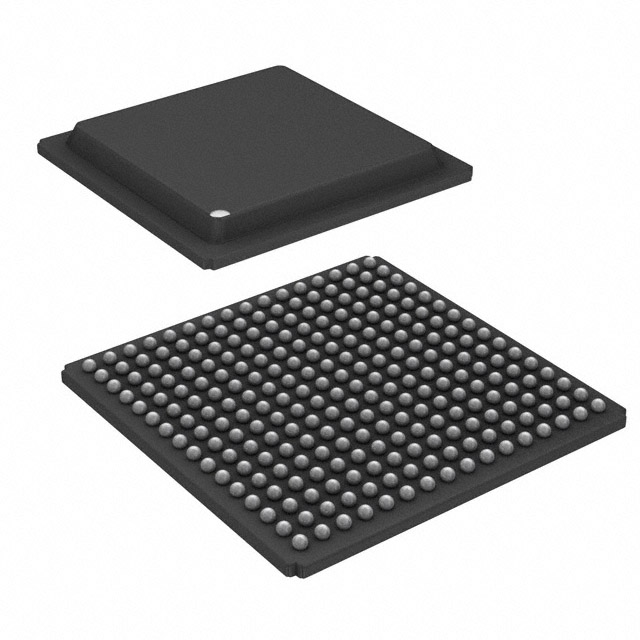

| Package / Case | 256-BGA |
| Supplier Device Package | 256-BGA (17x17) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 30.92 | |
| 10 | $ 23.86 | |||
| 25 | $ 22.44 | |||
| Microchip Direct | TRAY | 1 | $ 24.67 | |
| 25 | $ 20.55 | |||
| 100 | $ 18.68 | |||
| 1000 | $ 17.28 | |||
| 5000 | $ 16.38 | |||
| 10000 | $ 15.59 | |||
VSC8662 Series
2 Port GbE Cu/Fiber PHY (Ind. Temp)
| Part | Supplier Device Package | Package / Case | Mounting Type | Number of Circuits | Function |
|---|---|---|---|---|---|
Microchip Technology VSC8662XIC-03 | 256-BGA (17x17) | 256-BGA | Surface Mount | 1 | Ethernet |
Description
General part information
VSC8662 Series
Helping OEMs to capitalize on the cost reduction and optimization of Synchronous Ethernet (SyncE), the VSC8662 addresses the challenges in providing fully traceable timing across TDM backhaul links, cellular base stations, and other SyncE applications. With recovered clock outputs, the VSC8662 meets and goes beyond the requirements of the ITU-T recommendation G.8261/Y.1361. Supporting two copper/fiber ports and SGMII MAC interfaces, the VSC8662 includes a highly integrated feature set to ensure low-cost, rapid deployment.
