PBC31SBAN

Active

Sullins Connector Solutions

CONN HEADER R/A 31POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PBC31SBAN

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	2.54 mm
Contact Length - Post	0.1 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.56 mm
Insulation Height	0.14 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	31
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PBC31 Series

Part	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Style	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Material	Mounting Type	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Number of Positions Loaded	Insulation Color	Number of Rows	Contact Finish - Post	Insulation Height	Insulation Height	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Contact Type	Current Rating (Amps)	Fastening Type	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating	Overall Contact Length	Overall Contact Length
Sullins Connector Solutions PBC31DGAN	Breakaway Header	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	Square	125 °C	-65 ░C	Board to Board Cable	0.318 "	8.08 mm	Phosphor Bronze	Through Hole Right Angle	2.54 mm	0.1 in	UL94 V-0	All	Black	2	Tin	0.24 in	6.1 mm	Gold	2.54 mm	0.1 in	Solder	10 çin	0.25 çm	Unshrouded	Male Pin	3 A	Push-Pull	62	0.1 in	2.54 mm
Sullins Connector Solutions PBC31DAAN	Breakaway Header	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	Square	125 °C	-65 ░C	Board to Board Cable	0.23 in		Phosphor Bronze	Through Hole			UL94 V-0	All	Black	2	Tin	0.1 in	2.54 mm	Gold	2.54 mm	0.1 in	Solder	10 çin	0.25 çm	Unshrouded	Male Pin	3 A	Push-Pull	62	0.1 in	2.54 mm	0.12 in	3.05 mm	5.84 mm	0.45 "	11.43 mm
Sullins Connector Solutions PBC31SBDN	Breakaway Header	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	Square	125 °C	-65 ░C	Board to Board Cable	0.23 in		Phosphor Bronze	Through Hole Right Angle			UL94 V-0	All	Black	1	Tin	0.14 in	3.56 mm	Gold			Solder	10 çin	0.25 çm	Unshrouded	Male Pin	3 A	Push-Pull	31	0.1 in	2.54 mm	0.4 in	10.16 mm	5.84 mm
Sullins Connector Solutions PBC31SBAN	Breakaway Header	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	Square	125 °C	-65 ░C	Board to Board Cable	0.23 in		Phosphor Bronze	Through Hole Right Angle	2.54 mm	0.1 in	UL94 V-0	All	Black	1	Tin	0.14 in	3.56 mm	Gold			Solder	10 çin	0.25 çm	Unshrouded	Male Pin	3 A	Push-Pull	31	0.1 in	2.54 mm			5.84 mm
Sullins Connector Solutions PBC31SAHN	Breakaway Header	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	Square	125 °C	-65 ░C	Board to Board Cable	0.23 in		Phosphor Bronze	Through Hole			UL94 V-0	All	Black	1	Tin	0.1 in	2.54 mm	Gold			Solder	10 çin	0.25 çm	Unshrouded	Male Pin	3 A	Push-Pull	31	0.1 in	2.54 mm	0.82 in	20.83 mm	5.84 mm	1.15 in	29.21 mm
Sullins Connector Solutions PBC31SAGN	Breakaway Header	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	Square	125 °C	-65 ░C	Board to Board Cable	0.23 in		Phosphor Bronze	Through Hole			UL94 V-0	All	Black	1	Tin	0.1 in	2.54 mm	Gold			Solder	10 çin	0.25 çm	Unshrouded	Male Pin	3 A	Push-Pull	31	0.1 in	2.54 mm	0.72 "	18.29 mm	5.84 mm	1.05 in	26.67 mm
Sullins Connector Solutions PBC31SBCN	Breakaway Header	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	Square	125 °C	-65 ░C	Board to Board Cable	0.23 in		Phosphor Bronze	Through Hole Right Angle			UL94 V-0	All	Black	1	Tin	0.14 in	3.56 mm	Gold			Solder	10 çin	0.25 çm	Unshrouded	Male Pin	3 A	Push-Pull	31	0.1 in	2.54 mm	0.3 "	7.62 mm	5.84 mm
Sullins Connector Solutions PBC31SFBN	Breakaway Header	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	Square	125 °C	-65 ░C	Board to Board Cable	0.318 "	8.08 mm	Phosphor Bronze	Through Hole	5.58 mm	0.22 in	UL94 V-0	All	Black	1	Tin	0.1 in	2.54 mm	Gold			Solder	10 çin	0.25 çm	Unshrouded	Male Pin	3 A	Push-Pull	31	0.1 in	2.54 mm				0.638 in	16.21 mm
Sullins Connector Solutions PBC31DAFN	Breakaway Header	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	Square	125 °C	-65 ░C	Board to Board Cable	0.23 in		Phosphor Bronze	Through Hole	15.75 mm	0.62 in	UL94 V-0	All	Black	2	Tin	0.1 in	2.54 mm	Gold	2.54 mm	0.1 in	Solder	10 çin	0.25 çm	Unshrouded	Male Pin	3 A	Push-Pull	62	0.1 in	2.54 mm			5.84 mm	0.95 in	24.13 mm
Sullins Connector Solutions PBC31DADN	Breakaway Header	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	Square	125 °C	-65 ░C	Board to Board Cable	0.23 in		Phosphor Bronze	Through Hole			UL94 V-0	All	Black	2	Tin	0.1 in	2.54 mm	Gold	2.54 mm	0.1 in	Solder	10 çin	0.25 çm	Unshrouded	Male Pin	3 A	Push-Pull	62	0.1 in	2.54 mm	0.42 in	10.67 mm	5.84 mm	0.75 in	19.05 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.81
		10	$ 2.15
		100	$ 1.66
		500	$ 1.40
		1000	$ 1.30
		5000	$ 1.26

Description

General part information

PBC31 Series

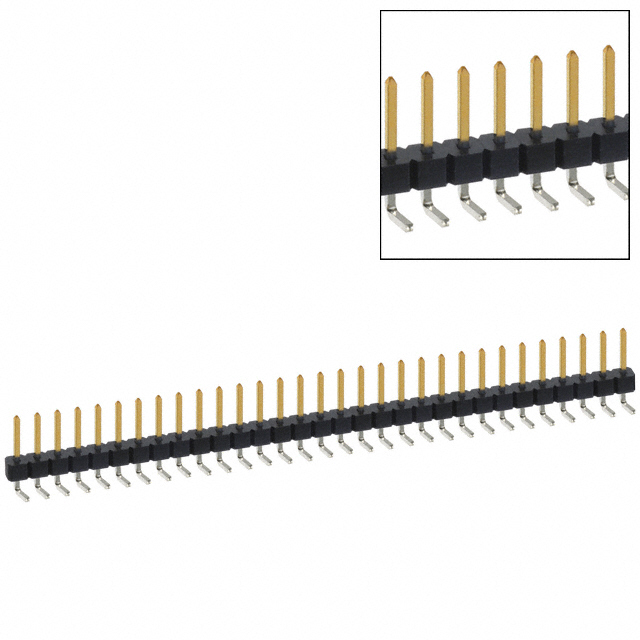

Connector Header Through Hole, Right Angle 31 position 0.100" (2.54mm)
