3-1393481-2
ActiveTE Connectivity AMP Connectors

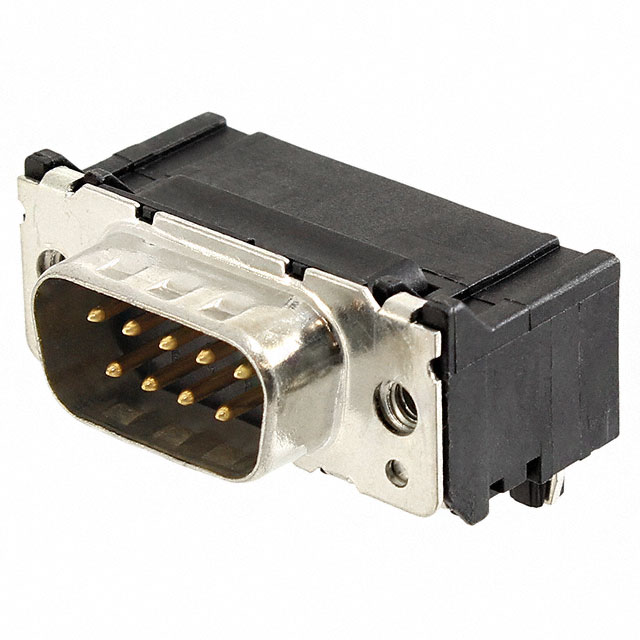

CONN D-SUB PLUG 9P R/A PRESSFIT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3-1393481-2
ActiveTE Connectivity AMP Connectors
CONN D-SUB PLUG 9P R/A PRESSFIT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3-1393481-2 | 1393481 Series |
|---|---|---|
| Backset Spacing | 0.411 in | 0.371 - 0.411 in |
| Backset Spacing | 10.43 mm | 9.43 - 10.43 mm |
| Color | Black | Black |
| Connector Style | D-Sub | D-Sub |
| Connector Type | Plug, Male Pins | Plug, Male Pins, Receptacle, Female Sockets |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Type | Signal | Signal |
| Current Rating (Amps) | - | 2.2 A |
| Dielectric Material | - | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Features | Grounding Indents, Board Lock | Grounding Indents, Board Lock, Mounting Brackets |
| Flange Feature | Housing/Shell (4-40) | Housing/Shell (4-40), Housing/Shell (Unthreaded), Housing/Shell (M3), Female Screwlock (4-40), Mating Side, Female Screwlock (M3) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 9 | 9 - 15 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Shell Size, Connector Layout | - | 2 |
| Shell Size, Connector Layout [custom] | DE, E | DE, E, DB, B |
| Shell Size, Connector Layout [custom] | 1 | 1 - 3 |
| Termination | Press-Fit | Press-Fit, Solder |
1393481 Series
CONN D-SUB PLUG 9P R/A PRESSFIT
| Part | Features | Number of Rows | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Backset Spacing | Backset Spacing | Contact Type | Material Flammability Rating | Connector Type | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Color | Termination | Mounting Type | Connector Style | Number of Positions | Flange Feature | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Dielectric Material | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 3-1393481-2 | Board Lock, Grounding Indents | 2 | Gold | -55 °C | 125 °C | 0.411 in | 10.43 mm | Signal | UL94 V-0 | Male Pins, Plug | Phosphor Bronze | 0.76 Ám | 30 Áin | Black | Press-Fit | Through Hole, Right Angle | D-Sub | 9 | Housing/Shell (4-40) | DE, E | 1 | |||
TE Connectivity AMP Connectors 1-1393481-2 | Grounding Indents | 2 | Signal | Male Pins, Plug | Solder | Through Hole, Right Angle | D-Sub | 9 | Housing/Shell (Unthreaded) | DE, E | 1 | |||||||||||||
TE Connectivity AMP Connectors 3-1393481-3 | Board Lock, Grounding Indents | 2 | Gold | -55 °C | 125 °C | 0.411 in | 10.43 mm | Signal | UL94 V-0 | Male Pins, Plug | Phosphor Bronze | 0.76 Ám | 30 Áin | Black | Press-Fit | Through Hole, Right Angle | D-Sub | 15 | Housing/Shell (4-40) | 2 | ||||
TE Connectivity AMP Connectors 2-1393481-1 | 2 | -55 °C | 125 °C | Signal | Receptacle, Female Sockets | Press-Fit | Through Hole, Right Angle | D-Sub | 9 | Housing/Shell (M3) | DE, E | 1 | ||||||||||||
TE Connectivity AMP Connectors 2-1393481-9 | 2 | Gold | -55 °C | 125 °C | 0.411 in | 10.43 mm | Signal | UL94 V-0 | Receptacle, Female Sockets | Phosphor Bronze | 0.76 Ám | 30 Áin | Black | Press-Fit | Through Hole, Right Angle | D-Sub | 9 | Housing/Shell (4-40) | DE, E | 1 | ||||
TE Connectivity AMP Connectors 1393481-6 | Board Lock, Grounding Indents | 2 | Gold | -55 °C | 125 °C | 0.371 in | 9.43 mm | Signal | UL94 V-0 | Male Pins, Plug | Phosphor Bronze | Black | Solder | Through Hole, Right Angle | D-Sub | Female Screwlock (4-40), Mating Side | B, DB | 3 | Polybutylene Terephthalate (PBT), Polyester | 2.2 A | ||||
TE Connectivity AMP Connectors 1-1393481-1 | 2 | Signal | Receptacle, Female Sockets | Solder | Through Hole, Right Angle | D-Sub | 9 | Housing/Shell (Unthreaded) | DE, E | 1 | ||||||||||||||
TE Connectivity AMP Connectors 3-1393481-6 | 2 | Gold | -55 °C | 125 °C | 0.411 in | 10.43 mm | Signal | UL94 V-0 | Receptacle, Female Sockets | Phosphor Bronze | 0.76 Ám | 30 Áin | Black | Press-Fit | Through Hole, Right Angle | D-Sub | 9 | Female Screwlock (4-40), Mating Side | DE, E | 1 | 2.2 A | |||
TE Connectivity AMP Connectors 2-1393481-6 | Board Lock, Grounding Indents | 2 | -55 °C | 125 °C | Signal | Male Pins, Plug | Press-Fit | Through Hole, Right Angle | D-Sub | 15 | Housing/Shell (M3) | 2 | ||||||||||||
TE Connectivity AMP Connectors 1393481-1 | Mounting Brackets | 2 | Gold | -55 °C | 125 °C | Signal | Receptacle, Female Sockets | Black | Solder | Through Hole, Right Angle | D-Sub | 15 | Female Screwlock (M3), Mating Side | 2 | Glass Filled, Polybutylene Terephthalate (PBT), Polyester | 2.2 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1393481 Series
9 Position D-Sub Plug, Male Pins Connector
