3-1393481-6

Active

TE Connectivity AMP Connectors

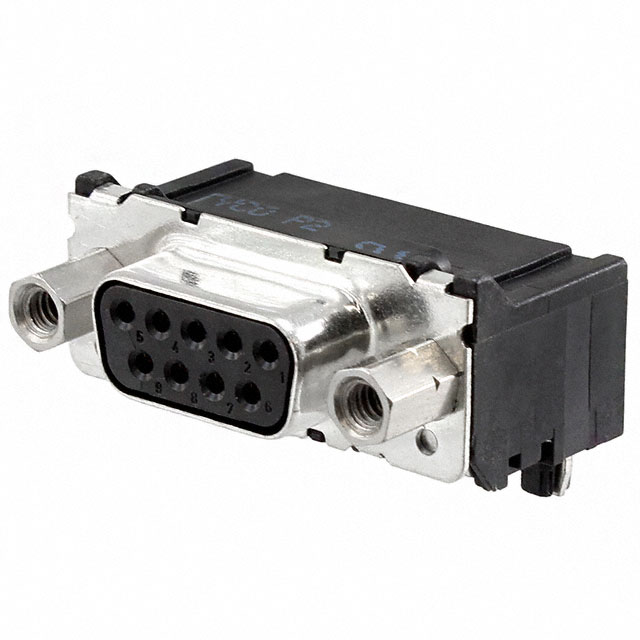

CONN D-SUB RCPT 9P R/A PRESS-FIT

Deep-Dive with AI

Search across all available documentation for this part.

3-1393481-6

Active

TE Connectivity AMP Connectors

CONN D-SUB RCPT 9P R/A PRESS-FIT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

1393481 Series

9 Position D-Sub Receptacle, Female Sockets Connector

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3-1393481-6	1393481 Series

Backset Spacing	0.411 in	0.371 - 0.411 in
Backset Spacing	10.43 mm	9.43 - 10.43 mm
Color	Black	Black
Connector Style	D-Sub	D-Sub
Connector Type	Receptacle, Female Sockets	Plug, Male Pins, Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Type	Signal	Signal
Current Rating (Amps)	2.2 A	2.2 A
Dielectric Material	-	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Features	-	Grounding Indents, Board Lock, Mounting Brackets
Flange Feature	Female Screwlock (4-40), Mating Side	Housing/Shell (4-40), Housing/Shell (Unthreaded), Housing/Shell (M3), Female Screwlock (4-40), Mating Side, Female Screwlock (M3)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	9	9 - 15
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Size, Connector Layout	-	2
Shell Size, Connector Layout [custom]	DE, E	DE, E, DB, B
Shell Size, Connector Layout [custom]	1	1 - 3
Termination	Press-Fit	Press-Fit, Solder

1393481 Series

CONN D-SUB PLUG 9P R/A PRESSFIT

Part	Features	Number of Rows	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Backset Spacing	Backset Spacing	Contact Type	Material Flammability Rating	Connector Type	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Color	Termination	Mounting Type	Connector Style	Number of Positions	Flange Feature	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout	Dielectric Material	Current Rating (Amps)
TE Connectivity AMP Connectors 3-1393481-2	Board Lock, Grounding Indents	2	Gold	-55 °C	125 °C	0.411 in	10.43 mm	Signal	UL94 V-0	Male Pins, Plug	Phosphor Bronze	0.76 Ám	30 Áin	Black	Press-Fit	Through Hole, Right Angle	D-Sub	9	Housing/Shell (4-40)	DE, E	1
TE Connectivity AMP Connectors 1-1393481-2	Grounding Indents	2						Signal		Male Pins, Plug					Solder	Through Hole, Right Angle	D-Sub	9	Housing/Shell (Unthreaded)	DE, E	1
TE Connectivity AMP Connectors 3-1393481-3	Board Lock, Grounding Indents	2	Gold	-55 °C	125 °C	0.411 in	10.43 mm	Signal	UL94 V-0	Male Pins, Plug	Phosphor Bronze	0.76 Ám	30 Áin	Black	Press-Fit	Through Hole, Right Angle	D-Sub	15	Housing/Shell (4-40)			2
TE Connectivity AMP Connectors 2-1393481-1		2		-55 °C	125 °C			Signal		Receptacle, Female Sockets					Press-Fit	Through Hole, Right Angle	D-Sub	9	Housing/Shell (M3)	DE, E	1
TE Connectivity AMP Connectors 2-1393481-9		2	Gold	-55 °C	125 °C	0.411 in	10.43 mm	Signal	UL94 V-0	Receptacle, Female Sockets	Phosphor Bronze	0.76 Ám	30 Áin	Black	Press-Fit	Through Hole, Right Angle	D-Sub	9	Housing/Shell (4-40)	DE, E	1
TE Connectivity AMP Connectors 1393481-6	Board Lock, Grounding Indents	2	Gold	-55 °C	125 °C	0.371 in	9.43 mm	Signal	UL94 V-0	Male Pins, Plug	Phosphor Bronze			Black	Solder	Through Hole, Right Angle	D-Sub		Female Screwlock (4-40), Mating Side	B, DB	3		Polybutylene Terephthalate (PBT), Polyester	2.2 A
TE Connectivity AMP Connectors 1-1393481-1		2						Signal		Receptacle, Female Sockets					Solder	Through Hole, Right Angle	D-Sub	9	Housing/Shell (Unthreaded)	DE, E	1
TE Connectivity AMP Connectors 3-1393481-6		2	Gold	-55 °C	125 °C	0.411 in	10.43 mm	Signal	UL94 V-0	Receptacle, Female Sockets	Phosphor Bronze	0.76 Ám	30 Áin	Black	Press-Fit	Through Hole, Right Angle	D-Sub	9	Female Screwlock (4-40), Mating Side	DE, E	1			2.2 A
TE Connectivity AMP Connectors 2-1393481-6	Board Lock, Grounding Indents	2		-55 °C	125 °C			Signal		Male Pins, Plug					Press-Fit	Through Hole, Right Angle	D-Sub	15	Housing/Shell (M3)			2
TE Connectivity AMP Connectors 1393481-1	Mounting Brackets	2	Gold	-55 °C	125 °C			Signal		Receptacle, Female Sockets				Black	Solder	Through Hole, Right Angle	D-Sub	15	Female Screwlock (M3), Mating Side			2	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	2.2 A
